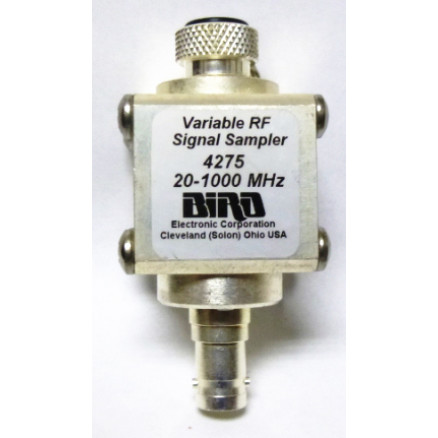

BIRD4275 Variable RF Signal Sampler, 20-1000 MHz, 2kw max, No connectors, Bird Elec

BIRD4275 Variable RF Signal Sampler, 20-1000 MHz, 2kw max, No connectors, Bird Elec

Be the first to review this product

In Stock
$298.00
OR

Quick Overview

BIRD4275 Variable RF Signal Sampler, 20-1000 MHz, 2kw max, No connectors, Bird Elec

4275 Variable RF Signal Sampler, 20-1000 MHz, 2kw max, No connectors, Bird Electronics

Details

4275 Variable RF Signal Sampler, 20-1000 MHz, 2kw max, No connectors, Bird Electronics

Bird Models 4273 (1.5 to 35 MHz, 5 kW max.) and Model 4275 (20 to 1000 MHz, 2 kW max.) are "stand alone", wide-range, THRULINE® RF coupling probes for spectrum analysis, RF signal observation on a scope, or frequency counting and control. They feature very low VSWR throughout a broad frequency and attenuation range. Insertion loss is a negligible 01. dB. Both Models produce and unrectified sample at the BNC port that is adjustable. Once adjusted, the setting can be locked in place. The main power line connectors are Bird QC type.


4273 Specifications
4275 Specifications
Impedance:
50 ohms nominal
Coupling:
Adjustable as shown within ±3dB
Ambient Temperature Range:
-40°C to +45°C
Connectors:
QC type as specified
Nominal Size:
2 51/64" L x 2 7/8" W x 1 1/4" D
Weight:
10 oz.
Power Rating: 5 kW max 1 kW max
Frequency Range: 1.5 - 35 MHz 20 - 1000 MHz
Insertion VSWR: with N connectors 1.07 dB max. with N connectors 0.1 dB max.

4275 Pricing
Part NumberQC ConnectorsPrice
4275 No Connectors* $250.00
4275-020 N: Male/Female
4275-025 N: Female/Female
4275-030 UHF: Male/Female
4275-035 UHF: Female/Female
