HT57 Series 15kv

HT57/HH57/857 Series RF Doorknob Caps

15 KVDC Rating
1.187" Diameter x 1.89" Long • 10-32 Thread
RF Parts
Number
Factory
Part #

pF

TC
Current/Amps
1 MHz     10 MHz     30 MHz
15 KVDC Rating   P=CLEAN PULLOUT
570010-15P HT574100 10 NPO
570012-15 HT57Y120MA 12 NPO .66 10.1 11.3
570018-15P HT574180  18 NPO
570025-15 HT57Y250KA 25 NPO 1.66 11.5 12.5
570025-15P HT57Y250KA 25 NPO 1.66 11.5 12.5

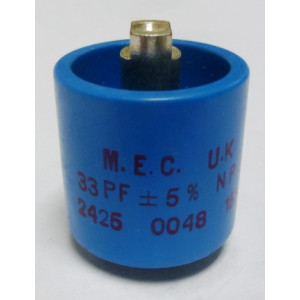

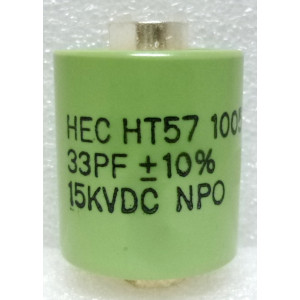

570033-15 HT57Y330MA 33 NPO 1.85 11.7 12.7

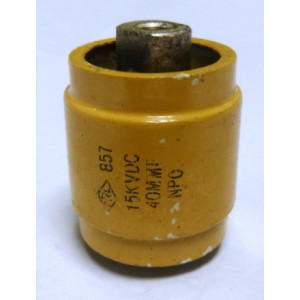

570040-15P HT57Y400 40 NPO 3.00 12.0 12.8
570050-15 HT57Y500KA 50 NPO 3.33 12.5 13.0
570050-15P HT57Y500 50 NPO 3.33 12.5 13.0
510100-15 2DHT51Y101KAA 100
570100-15 HT57Y101MA 100 N-750 3.8 11.1 13.7
570100-15P HT57Y101MA 100 N-750 3.8 11.1 13.7
570200-15 HT57Y201KA 200 N-750 5.1 12.5 15.0
570500-15 HT57Y501MA 500 N4700 2.6 5.8 6.9
571000-15 HH57Y122MA 1000 X5T 2.1 3.8 5.1

List  Grid

per page
Set Descending Direction
  1. 571000-15 - Doorknob Capacitor 1000pf, 15kv, High Energy

    571000-15 - Doorknob Capacitor 1000pf, 15kv, High Energy

    571000-15 - Doorknob Capacitor 1000pf, 15kv, High Energy

    571000-15 Ceramic Doorknob Capacitor, 1000pf 15kv 20%, MFR: High Energy

Items 21 to 21 of 21 total
