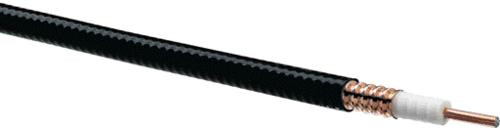

LDF4.5-50 5/8" Andrew Heliax Coax Cable

LDF4.5-50  5/8" Andrew Heliax Coax Cable

Be the first to review this product

Shipped under 14 days
$5.95
  • Buy 25 for $5.70 each and save 5%
  • Buy 50 for $5.60 each and save 6%
  • Buy 100 for $5.30 each and save 11%
  • Buy 500 for $4.98 each and save 17%
OR

Quick Overview

LDF4.5-50, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 5/8 in, black PE jacket

Details

LDF4.5-50, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 5/8 in, black PE jacket



Construction Materials

Jacket Material PE

Outer Conductor Material Corrugated copper

Dielectric Material Foam PE

Flexibility Standard

Inner Conductor Material Copperclad

aluminum wire

Jacket Color Black



Dimensions



Nominal Size 5/8 in

Cable Weight 0.27 lb/ft | 0.40 kg/m

Diameter Over Dielectric 18.034 mm | 0.710 in

Diameter Over Jacket 22.098 mm | 0.870 in

Inner Conductor OD 7.1120 mm | 0.2800 in

Outer Conductor OD 19.812 mm | 0.780 in



Electrical Specifications



Cable Impedance 50 ohm ±1 ohm

Capacitance 23.2 pF/ft | 76.1 pF/m

dc Resistance, Inner Conductor 0.220 ohms/kft | 0.722 ohms/km

dc Resistance, Outer Conductor 0.420 ohms/kft | 1.378 ohms/km

dc Test Voltage 5000 V

Inductance 0.187 μH/m | 0.057 μH/ft

Insulation Resistance 100000 Mohms•km

Jacket Spark Test Voltage (rms) 8000 V

Operating Frequency Band 1 – 6100 MHz

Peak Power 62.0 kW

Pulse Reflection 0.5%

Velocity 88%



Environmental Specifications



Installation Temperature 40

°C to +60 °C (40

°F to +140 °F)

Operating Temperature 55

°C to +85 °C (67

°F to +185 °F)

Storage Temperature 70

°C to +85 °C (94

°F to +185 °F)
