RF Parts Company ~ Grounding Accessories

Grounding / Lightning Protection
• Minimum Order: $25.00 in Parts
• Product Returns are subject to 15% Re-stock fee.

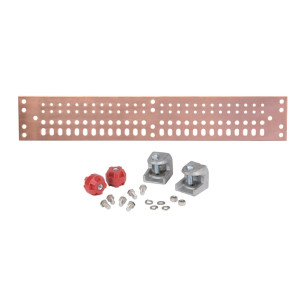

Grounding Buss Bars

Photo	Part Number	Description	Price Ea.
	487XJA2HL	This Ground Buss Bar provides the ultimate in versatility by accommodating 13 connections on the 4” x 12” x 1/4” plate. Complete with insulated mounting hardware, and includes heavy 25 foot copper strap (2” wide, 1/16” thick). Mfg. for Motorola by Harger Lightning Protection, Inc. Hole size: 7/16”. Net Weight: 17.3 lbs Limited supply.	$119.50
	UGBKIT	1/4" x 2-1/2" x 19-1/2" 58-Hole BUSS BAR w/Ins. and Hardware	89.95
	UGBKIT-0210	1/4" x 2" x 10" 2x10-Hole BUSS BAR w/Ins. and Hardware	56.95
	UGBKIT-0212	1/4" x 2" x 12" 1x10-Hole BUSS BAR w/Ins. and Hardware	59.95
Mfg. HARGER Photo Coming Soon!	UGB215	1/4" x 2" x 15" 24-Hole BUSS BAR w/Ins. and Hardware	59.95

Grounding Clamps

Part Number	Description	Price Ea.
CLAMP1	Brass Buss Bar Clamp Thomas & Betts (5030) can mount to tower or buss bar up to 1/4" thick. Will accept wire from .15 to .35 diameter.	$ 7.95
AT89181	Ground Clamp Heavy duty clamp accepts 0.5"-1.25"OD pipe or rod. Made from heavyweight copper materials. Accepts 6-12 guage wire. U.S. made to utility company specifications.	(1-4) $4.95 ea. Bag of 5: $23.50
GPL5	Bronze Ground Clamp Connector Mfg. Penn-Union Universal parallel or 90 degree cable connection to rod or pipe. Made from high copper content alloy. Furnished with silicon bronze bolt, nuts and lockwashers. Accomodates 5/8" or 3/4" (rod), 3/8" (IPS) Approx. Dimensions: 2-3/4"(B) x 2" (C) x 1-5/8" (A) UL 467 Listed Suitable for Direct Burial C & US	$ 7.95

Grounding Rods

Photo	Part Number	Description	Price Ea.
Photo coming soon!	GR4	Copper Clad Steel 4 foot ground rod with clamp 0.3175" diameter, 45" actual length	(1-2) $ 7.95 (3-up) 6.95

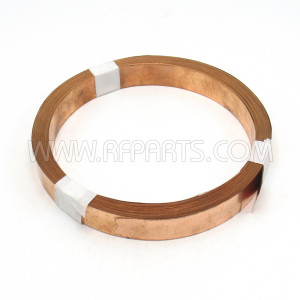

Copper Strap


Part Number

Description

Price Ea.

Photo coming soon!

STRAP-CU1.125

Copper strap; 1-1/8" wide, .006" thick.

10' strip: $9.00 ea.
25' strip: $18.75 ea.

Photo coming soon!

212177

10 Foot Ground Strap made of tinned copper. 1" wide, comes with lugs.
FCSM: 11375

24.95 ea.

Bare Copper, ideal for RF tank coils and connecting wires, ground leads, DC bus bars in solid state linears, etc.
This strap has rounded corners. Large quantity available.

		Dimensions/Inches	Price/foot*
Part #	Width-inch	Thickness-inch	5’-49’	50’-199’
3TW	.145	.081	$ .25	$ .20
11TW	.185	.093	.40	.35
12TW	.164	.084	.45	.40

* 5' minimum

Lightning Protection

Part Number	Description	Price Ea.
IS-B50LN-C1 Data Sheet	50-700 MHz Blkhd Mt Lo Power Coax Protector with N-Female Conn	$ 64.95
IS-B50LN-C2 Data Sheet	125-1000 MHz Blkhd Mt Lo Power Coax Protector with N-Females	64.95
SP3000	Lightning Arrestor, N-Females, DC 3,000 MHz, 200W.	39.95
SP3000W	Lightning Arrestor, N-Females, Waterproof, DC 3,000 MHz, 200W.	44.95
SP1000	Lightning Surge Protector, SO-239, DC 1,000 MHz, 400W.	29.95

�
