CX-800M

CX-800M
Specifications

Impedance: 50 Ohms.

VOLTAGE
Pull in: 10Vdc-14Vdc(12Vdc Nominal)
Drop out: 1.5Vdc Min.
Current: 250mA@12Vdc 20°C
Coil Resistance 48 Ohms. 10% 20°C

MECHANICAL
Contact Arrangement: SPDT
Operational Temperature: -50°C to 70 °C
Weighting: Approx. 365gs.
Mounting: 2 Mounting Holes
Cable Connections: 6 M(UHF) Type female connectors

ELECTRICAL CHARACTERISTICS
Frequency (MHz) VSWR (Max) Isolation -dB[min] Ins. Loss -dB[max] Input (W)
50
1.1
50
0.15
1000 CW
150
1.15
48
0.15
1000 CW
500
1.15
37
0.2
800 CW
1000
1.18
28
0.2
500 CW

SWITCHING TIME
Pull in: 20ms typical
Drop out: 15ms typical
Life Expectancy: 1,000,000 Operation Min.

COIL CHARACTERISTICS
Nominal Voltage: 12Vdc/24Vdc/26.5Vdc
Voltage Range: 10Vdc-14Vdc/
19Vdc-26Vdc/20Vdc-30Vdc
Coil Resistance Ohms: 48/192/245
Mounting: -

SCHEMATIC

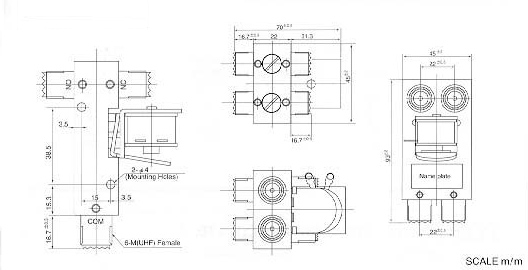

DIMENSIONS

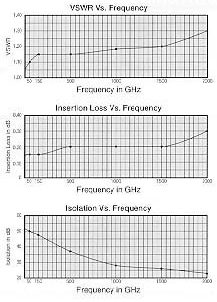

TYPICAL OPERATING CURVES
