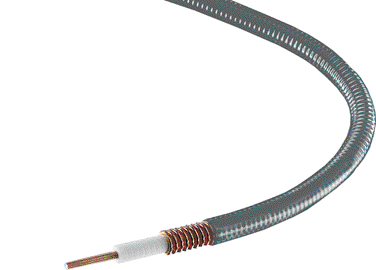

Heliax Coax - FSJ4-50B

RF Parts Company

Andrew Heliax Cable
Minimum Order: $25.00 in Parts
Product Returns are subject to 15% Re-stock fee.

FSJ4-50B — 50 ohm

This page last updated: 26 September, 2012



Cable Information
Standard Cable FSJ4-50B    Fire Retardant Cable FSJ4RK-50B
1/2” Standard Cable, Standard Jacket   1/2” Fire Retardant Jacket (CATVR)
Characteristics
FSJ4-50B
Mechanical
  Outer Conductor Copper
  Inner Conductor Copper-Clad Aluminum
Electrical
  Diameter over Jacket, in (mm) 0.52 (13.2)
Impedance, ohms 50 ± 1   Diameter over Copper Outer Conductor, in (mm) 0.48 (12.8)
Maximum Frequency, GHz 10.2   Diameter Inner Conductor, in (mm) 0.142 (3.6)
Velocity, percent 81   Minimum Bending Radius, in (mm) 1.25 (32)
Peak Power Rating, kW 15.6   Cable Weight, lb/ft (kg/m) 0.14 (0.21)
Attenuation & Average Power
Frequency
MHz
Attenuation
dB/100 ft.
Attenuation
dB/100 m
Average
Power, kW
30
0.557
1.83
5.75
50
0.724
2.38
4.42
150
1.28
4.21
2.49
200
1.50
4.91
2.14
894
3.38
11.1
0.947
1500
4.54
14.9
0.705
2300
5.83
19.1
0.549
Price per Foot
Photo Data Sheet Part Number

Description

10-24
ft.
25-49
ft.
50-99
ft.
100-499
ft.
500 +
ft.
Andrew Corp. Logo
FSJ4-50B


Download PDF
FSJ4-50B
1/2" Superflex
3.95 3.85 3.75 3.50 3.30
Andrew Corp. Logo
FSJ4RN-50B


Download PDF
FSJ4RK-50B
1/2" Superflex Fire Retardant
Please contact us for current pricing.
Connectors for FSJ4-50B
Photo Data Sheet Part Number Description Price Ea.
Andrew Corp. Logo
Download PDF
F4PNMV2-H*
TYPE-N MALE CONNECTOR, HEX HEAD
SOLDER PIN

Andrew Corp. Logo
F4PNMV2-C*
TYPE-N MALE CONNECTOR, KNURLED HEAD

Andrew Corp. Logo
F4PNMV2-HC
TYPE-N MALE CONNECTOR, HEX HEAD


Download PDF
Cable Assembly
Instructions
NM12S
TYPE-N MALE

Andrew Corp. Logo
F4PNR-HC
Download PDF
F4PNR-HC
TYPE-N MALE RIGHT ANGLE CONNECTOR

Andrew Corp. Logo
F4PNF-C
Download PDF
F4PNF-C
TYPE-N FEMALE CONNECTOR


Download PDF
Cable Assembly
Instructions
NF12S
TYPE-N FEMALE

Andrew Corp. Logo
F4PDMV2-C
Download PDF
F4PDMV2-C
7/16 DIN MALE CONNECTOR


Download PDF
Cable Assembly
Instructions
716M-12S
7/16 DIN MALE (SHORT VERSION)

Andrew Corp. Logo
F4PDR-C
Download PDF
F4PDR-C
RT ANGLE 7/16 DIN MALE FOR 1/2"


16716-50-9-5
7/16 DIN RIGHT ANGLE MALE

Andrew Corp. Logo
F2PDF-C
Download PDF
F4PDF-C
7/16 DIN FEMALE CONNECTOR


Download PDF
Cable Assembly
Instructions
716F-12S
7/16 DIN FEMALE

Andrew Corp. Logo
F2PDF-C

44AM
LC MALE

Accessories for FSJ4-50B
Photo Part Number Description Price Ea.
Andrew Corp. Logo
Grounding Kit


241088-1
Grounding Kit for 1/2" Coax with 2-hole lug

Andrew Corp. Logo
MCPT-1412 Prep Tool

MCPT-1412
EASIAX Prep Tool for 1/4" and 1/2"

Andrew Corp. Logo
CPTL6



CPT-F4
EASIAX AUTO PREP TOOL FOR FSJ4-50B

43094
Andrew Corp. Logo


224363
Cable Flaring Tool for 1/2" cable.
59.95
Mfg. Konectz
CPT-12S
Automated Cable Prep Tool for FSJ4-50B
For 12S Style Connectors

Special Cable Assembly
FSJ4-50B Cable Assembly Special


20 foot Andrew FSJ4-50B cable (1/2” superflexible foam Heliax), with Right Angle Type-N male (FNPNR) already installed.
Factory packaged for UPS shipping.

Part Number: FSJ450B-20

List Price $140.00

RF Parts Special: $69.95 ea.

6 Lot Price: $59.95 ea.

While Supplies Last
