LDF1-50 — 50 ohm

This page last updated: 24 July, 2012



Cable Information

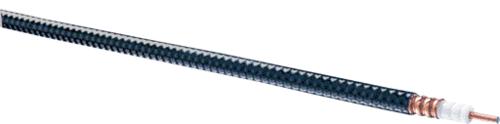

Standard Cable LDF1-50
1/4” Standard Cable, Standard Jacket
Characteristics
LDF1-50
Mechanical
  Outer Conductor Copper
  Inner Conductor Copper-Clad Aluminum
Electrical
  Diameter over Jacket, in (mm) 0.345 (8.8)
Impedance, ohms 50 ± 1   Diameter over Copper Outer Conductor, in (mm) 0.31 (7.7)
Maximum Frequency, GHz 15.8   Diameter Inner Conductor, in (mm) 0.102 (2.6)
Velocity, percent 86   Minimum Bending Radius, in (mm) 3 (76)
Peak Power Rating, kW 12.1   Cable Weight, lb/ft (kg/m) 0.06 (0.09)
Attenuation & Average Power
Frequency
MHz 		Attenuation
dB/100 ft. 		Attenuation
dB/100 m 		Average
Power, kW
30
0.667
2.19
3.32
50
.865
2.84
2.56
150
1.52
4.99
1.45
200
1.77
5.80
1.25
894
3.91
12.8
.566
1500
5.19
17.0
0.426
2300
6.60
21.6
0.336
Price per Foot
Photo Data Sheet Part Number

Description

 10-24
ft. 		25-49
ft. 		50-99
ft. 		100-499
ft. 		500 +
ft.
Andrew Corp. Logo
LDF1-50
Download PDF
LDF1-50
1/4" Heliax
1.75 1.55 1.45 1.30 1.20
Connectors for LDF1-50
Photo Data Sheet Part Number Description Price Ea.
Andrew Corp. Logo
L1PNF		   L1TNF-PL TYPE-N FEMALE $ 19.95
Andrew Corp. Logo   L1TNM-PL TYPE-N MALE 18.95
Andrew Corp. Logo   L1PNF-BH TYPE-N FEMALE, BULKHEAD 31.95
Andrew Corp. Logo   L1TNR-PL TYPE-N MALE, RIGHT ANGLE 24.95
Andrew Corp. Logo   L1TSM-PL SMA MALE 16.95
Andrew Corp. Logo   L1TDM-PL 7/16 DIN MALE 21.95
Andrew Corp. Logo   L1TDF-PL 7/16 DIN FEMALE CALL
Accessories for LDF1-50
Photo Data
Sheet		 Part Number Description Price Ea.
Andrew Corp. Logo
Sureground Grounding Kit

223158-4
Ground Kit w/ attach 2 hole lug for 1/4" and 3/8"
$24.95
Andrew Corp. Logo
MCPT-1412 Prep Tool

MCPT-1412
EASIAX Prep Tool for 1/4" and 1/2"
24.95
  209874 Replacement Blade Kit for MCPT-1412, 5/pkg. 11.95
Andrew Corp. Logo
CPTL6



   CPTL1
EASIAX PLUS CABLE AUTOMATED PREP TOOL
234.95
  CPTBKS1 Replacement blades for CPTL1, 5/pkg. 69.95

CoaxWrap

CoaxWrap shown on Coaxial Cable and Connector

   CW10B

Non-adhesive silicone tape for sealing connectors.

10' Roll, black.

More colors and roll sizes

 5.95
  CW36B

Non-adhesive silicone tape for sealing connectors.

36' Roll, black.

More colors and roll sizes

 17.95
