LDF7-50A — 50 ohm


Heliax Coaxial Cable : 1/4" FSJ1 , LDF1 | 3/8" FSJ2 , LDF2 | 1/2" FSJ4 , LDF4 , HL4RP | 3/8" LDF4.5-50A | LDF5-50A | AVA5-50 | LDF6-50 | LDF7-50A | AVA7-50

Heliax Accessories | Heliax Specials | Coaxial Cable
Cable Information
Standard Cable LDF7-50A    Fire Retardant Cable LDF7RK-50A
1 5/8” Standard Cable, Standard Jacket   1 5/8” Fire Retardant Jacket (CATVR)
Characteristics
LDF7-50A
Mechanical
  Outer Conductor Copper
  Inner Conductor Copper Tube
Electrical
  Diameter over Jacket, in (mm) 1.98 (50)
Impedance, ohms 50 ± 1   Diameter over Copper Outer Conductor, in (mm) 1.825 (46.3)
Maximum Frequency, GHz 2.5   Diameter Inner Conductor, in (mm) 0.681 (17.3)
Velocity, percent 88   Minimum Bending Radius, in (mm) 20 (510)
Peak Power Rating, kW 315   Cable Weight, lb/ft (kg/m) 0.82 (1.2)
Attenuation & Average Power
Frequency
MHz 		Attenuation
dB/100 ft. 		Attenuation
dB/100 m 		Average
Power, kW
30
0.109
0.356
30.9
50
0.142
0.465
23.6
150
0.254
0.834
13.2
200
0.297
0.976
11.3
894
0.694
2.28
4.83
1500
0.947
3.11
3.54
2300
1.23
4.05
2.72
Price per Foot
Photo Data Sheet Part Number

Description

 10-49
ft. 		50-99
ft. 		100-249
ft. 		250 +
ft.
Andrew Corp. Logo

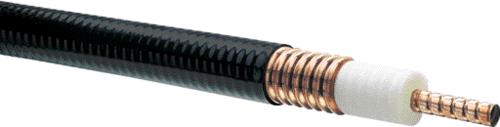

LDF7-50A
Download PDF
LDF7-50A
1-5/8" Heliax
DISCONTINUED; PLEASE CALL FOR AVAILABILITY OR SEE AVA7-50
Andrew Corp. Logo
LDF7RN-50A
Download PDF

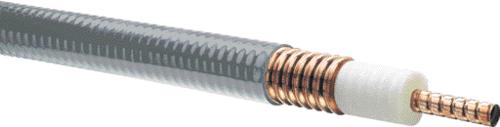

LDF7RK-50A
1-5/8" Heliax Fire Retardant
Connectors for LDF7-50A
Photo Data Sheet Part Number Description Price Ea.
Download PDF Installation Instructions for 1-5/8" Positive Stop Connectors
Download PDF Installation Instructions for 716M-158R & 716F-158R Connectors
Andrew Corp. Logo
L7PNM-RPC
Download PDF
L7PNM-RPC
OnePiece N-Male for 1-5/8"
179.95


716M-158R
7/16 DIN Male for 1-5/8"
69.95


716F-158R
7/16 DIN Female for 1-5/8"
69.95
Accessories for LDF7-50A
Photo Data
Sheet		 Part Number Description Price Ea.
Andrew Corp. Logo
Sureground Grounding Kit

SG158-12B2U
SUREGROUND Grounding Kit, for 1-5/8"
 29.95

CSGL7-15B4
Compact SUREGROUND Grounding Kit, for 1-5/8"
 39.95
Andrew Corp. Logo
42396A


42396A-2
Hanger Kit for 1-5/8" Coaxial Cable, 10/Pkg.
32.95
Andrew Corp. Logo
Hoisting Grip

L7SGRIP
Hoisting Grip for 1-5/8"Heliax
 39.95
Andrew Corp. Logo
CPTL6




CPT158U
EASIAX PLUS Automated Cable Prep Tool for
1-5/8" Coaxial Cable
289.95

CPT-BK7
REPLACEMENT BLADES FOR CPT158U, 5/PKG.
 69.95
