Module Outline Drawings





H2
- H3 - H13 - H14 - H46

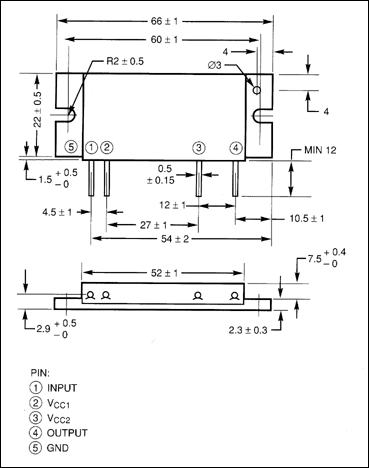

H2

H2 outline


back to top

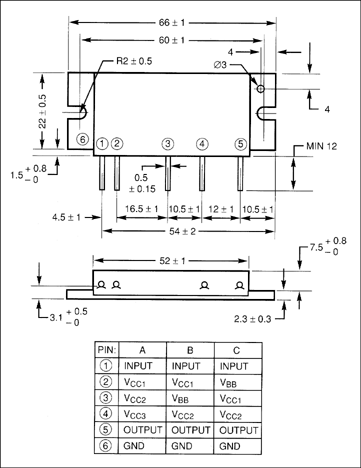

H3A,B,C

H3 module outline


back to top

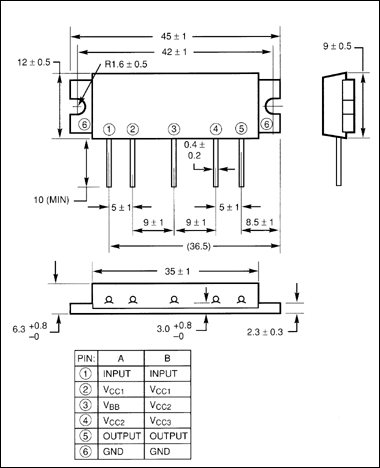

H13

H13 module outline


back to top


H14

H14 module outline


back to top

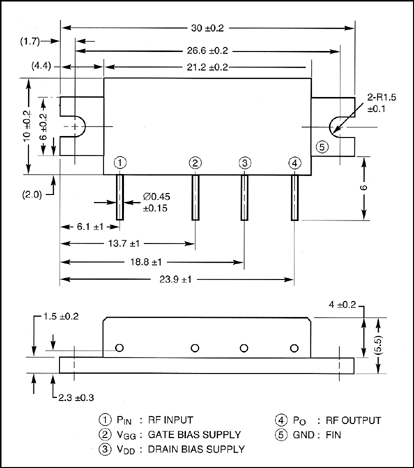

H46

H46 module outline

back to top
