Low Voltage Transformers


Ideal transformers for tube filament or DC power supplies.
All transformer secondaries have centertap. Primary 117 VAC / 60 csp.

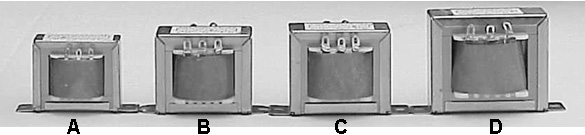

low voltage transformer

Part # Fig. VCT Amps H x W x L Mtg. Centers Lbs. Net Ea.
671121 A 12.6 1     0.6 $8.95
671122 A 12.6 2 1 11/16" x 1 1/2" x 2 3/4" 2 3/8” 0.8 9.95
671123 B 12.6 3 1 11/16" x 1 1/2" x 2 13/16" 2 3/4” 1.3 11.95
671124 C 12.6 4 2" x 2" x 3 3/4" 2 3/4” 1.4 13.95
671125 D 12.6 5 2 1/4" x 2 1/8" x 3 5/8" 2 3/4” 1.8 15.95
671241 A 24.0 1 2 1/4" x 2 1/8" x 3 5/8" 2 3/8” 0.8 9.95
671242 C 24.0 2 2" x 2" x 3 1/4" 2 13/16” 1.3 13.95
671243 D 24.0 3 2 1/4" x 2 3/8" x 3 1/2" 3 1/8” 2.1 17.95
671244 D 24.0 4 2 5/8" x 2 1/4" x 4 1/8" 3 1/2” 2.5 18.95
671245 E 24.0 5 2 5/8" x 2 1/2" x 4 1/8" 3 3/4” 3.1 19.95
671483   48.0 3 2 5/8" x 2 3/4" x 4 1/8" 3 5/8” 3.6 24.85


Hammond Manufacturing LogoHammond Filament and Low Voltage Transformers

Fig. Part # Secondary (RMS) Dim. Ref. 1-4 Pcs.
Hammond Series 166
115VAC   60Hz 		166U5 5.0 VCT 15 A C14H $44.95
166U7 7.5VCT 15 A C16H 54.95

Filament Transformer for YC156 and YC179
Use two 7.5 Volt transformers (part number 166U7), with secondaries connected in Series, to give the required 15V @ 15A with a centertap. Primaries may be connected for 115VAC or 230VAC operation.

166R12 12.6VCT 8 A C16H 46.95
166L14 14.0 VCT 2 A C10H 21.75
166Q14 14.0 VCT 6 A C15H 36.95
Hammond Series 165
115 VAC   60Hz 		165V10 10.0 VCT 20 A H10 69.95
165V12 12.6 VCT 20 A 115VAC Primary 68.00
165X5 5.0 VCT 30 A H9 69.95
Hammond Series 167
115 VAC   60Hz 		167U5 5.0VCT 15A X6 46.95
167X5 5.0VCT 30A X10 62.95
167U6 6.3VCT 16A X8 51.95
167V7 7.5VCT 21A X10 63.95
Limited Stock!
167S12 12.6VCT 10A X9 58.95
167V12 12.5VCT 20A X13 79.95
Fig. Part # VA Secondary(RMS) Dim. Ref. 1-4 Pcs.
Hammond Series 185
DUAL SECONDARY
115/230V PRIMARY   50/60Hz 		185E10 80 10VCT@8.0A
or 5V@16A 		B $29.95
185G10 175 10VCT@17.5A
or 5V@35A 		B 43.95
185E12 80 12.6VCT@6.3A
or 6.3V@12.6A 		B 29.95
185F10 130 10VCT@13A
or 5.0V@26A 		B 39.95
185G12 175 12.6VCT@14A
or 6.3V@28A 		B 43.95
185G16 175 16VCT@11A
or 8V@22A 		B 43.95
Other Hammond transformers available on special order. You can link to Hammond's website at www.hammondmanufacturing.com

Misc. Power Transformers


Basic designs for use in Amateur Radio Linears
All Transformers 120 VAC, 60 cy primary.

VRMS VDC MA Filament Amp Rect. Tubes/Type Core Direct Replacement
12
–
250
–
–
–
–
–
Shielded

Size (HxWxL): 1 3/8" x 2 3/8" x 1 3/8"  •  Weight: 1 Lb.

Part#: 56-010-006-1   •  Price: $3.95


VRMS VDC MA Filament Amp Rect. Tubes/Type Core Direct Replacement
260
700
250
12.6
2.5
V.D.
3 SWEEP
2”
“221,” 200X, screen supply for big Amp

Size (HxWxL): 3 3/4" x 3 1/2" x 4 1/2"   •  Weight: 10 Lbs.

Part#: 221A   •    Price: $19.95




Price and availability subject to change without notice.
