Type 46 series
TYPE 46 & 46X Series Trimmer
Voltage Rating: 175VDC/350VDC TEST
Case Measurement: 5/8" Wide x 3/4 " Long
DATA SHEET PAGE DATA SHEET PAGE 2
RF Parts stocks both A and B packages. C package is no longer available. D package is no longer available. Please contact Sales Staff for more info.
| Part Number | Package Type | Min/Max |
|---|---|---|
| 460 | A | 3-15 |
| 461 | A | 5-30 |
| 461-PC | B | 5-30 |
| 462 | A | 10-80 |
| GMC40201 Ltd Qty | C | 10-80 |
| 463 | A | 20-180 |
| 464 | A | 45-280 |
| 464-PC | B | 45-280 |
| S464 (Same as 464, but with bracket) |
A | 45-280 |
| 465 | A | 75-380 |
| GMA80400 Ltd Qty | A | 75-380 |
| 466 | A | 105-480 |
| 466X | A | 105-480 |
| 467 | A | 140-580 |
| 468 | A | 175-680 |
| 469 | A | 215-790 |
| 103-0004-00 Ltd Qty | B | 215-790 |
| GMA40900 Ltd Qty | A | 215-790 |
| 4611 | A | 300-1000 |
| 4613 | A | 360-1200 |
| 4614 | A | 380-1300 |
| 4615 | A | 420-1400 |
S-464 Arco Mica Variable Compression Trimmer Capacitor 45-280 pf (NOS)
In Stock
Mica Variable Compression Trimmer Capacitor 45-280pF (similar to 464 and 464X)
New Old Stock * No longer available for export
MFR: Arco, USA
SKU: S-464
GMA80400 Sprague Goodman Compression Mica Trimmer 45-280 pF
In Stock
- MFR Part number: GMA80400
- Range: 75-380 pF
New Old Stock * No longer available for export
MFR: Sprague Goodman
SKU: GMA80400

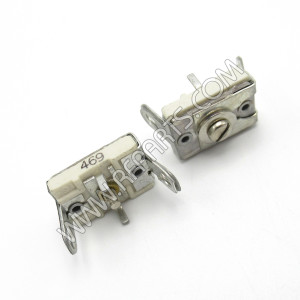

469 Arco Mica Compression Trimmer Capacitor 215-790 pF (NOS)
Out of Stock
MFR Part number: 469, A4609/OX
Range: 215-790 pF
Voltage - Working: 175/250 vdc
Voltage - Test: 350/500 vdc
Size: 0.80" Long x 0.615" wide
New Old Stock * No longer available for export
MFR: Arco
SKU: 469

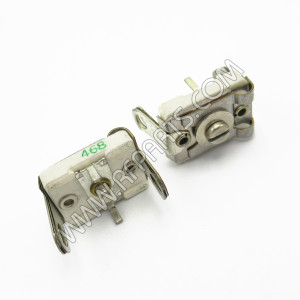

468 Arco Mica Compression Trimmer Capacitor 175-680 pF (NOS)
In Stock
This capacitor style is supplied with a staple which is used for mounting the trimmer on a 5/16" width bracket. The capacitor terminals have elongated holes for point to point wiring.
MFR Part number: 468, A4608/OX
Range: 175-680 pF
Voltage - Working: 175/250 vdc
Voltage - Test: 350/500 vdc
Size: 0.80" Long x 0.615" wide
New Old Stock * No longer available for export
MFR: Arco, USA
SKU: 468

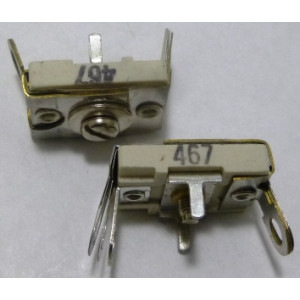

467 Arco Mica Compression Trimmer Capacitor 140-580 pF (NOS)
In Stock
Mica Compression Trimmer Capacitor 140-580pF 46 Series
New Old Stock * No longer available for export
MFR: Arco
SKU: 467
466X Arco Mica Compression Trimmer Capacitor 105-480 pF with Tuning Shaft (NOS)
In Stock
Mica Compression Trimmer Capacitor 105-480pF
Extended Tuning Shaft
New Old Stock * No longer available for export
MFR: Arco, USA
SKU: 466X
PC464 Arco Mica Compression Trimmer Capacitor 45-280 pF PC Mount (NOS)
In Stock
This capacitor sytle is supplied with solid terminals for printed circuit applications.
MFR Part number: 464, B4604/OX, 464-PC, PC464
Range: 45-280 pF
Voltage - Working: 175/250 vdc
Voltage - Test: 350/500 vdc
Size: 0.80" Long x 0.615" wide
New Old Stock * No longer available for export
MFR: Arco, USA
SKU: PC464
See Data Sheet
462 Arco Mica Compression Trimmer Capacitor 10-80 pF (NOS)
In Stock
Mica Compression Trimmer Capacitor 10-80pF, 46 Series
New Old Stock * No longer available for export
MFR: Arco
SKU: 462-ARCO
4615 Arco Mica Compression Trimmer Capacitor 420-1400 pF (NOS)
In Stock
Arco Compression Trimmer Capacitor 420-1400pF, 46 Series
New Old Stock * No longer available for export
MFR: Arco
SKU: 4615
4614 Arco Mica Compression Trimmer Capacitor 380-1300 pF (NOS)
In Stock
Mica Compression Trimmer Capacitor 380-1300 pF
New Old Stock * No longer available for export
MFR: Arco
SKU: 4614
