RF Parts Company

Bridge Rectifiers
• Minimum Order: $25.00 in Parts
• Product Returns are subject to 15% Re-stock fee.








  Part Number
Description
Price Each




  1-10
  11-24
  25+




  rectifier b

3N246

  2A, 50v
    1.20
    1.20
    1.20




  rectifier b

3N257

  2A, 600v
    1.35
  -
  -




  rectifier b

KBF

2A, 400v
  1.35
  1.35
1.35




  rectifier b

RS407

4A, 800v
  2.00
2.00
2.00




  MDA942A1 Bridge

MDA942A-1

1.5A, 50v
  2.25
2.25
2.25




  MDA942A1 Bridge

MDA942A-3

1.5A, 200v
  3.75
3.75
3.75




  rectifier b

MDA110A /ECG170

1A, 1KV
  2.70
2.70
2.70




  MDA942A1 Bridge

MDA210 /3N259

2A, 1KV
  2.75
2.75
2.75




  rectifier b

R5202L

2A, 100v
.65
.65
.65




  rectifier c

PB66-B

6A, 600v
  1.95
1.95
1.95




  rectifier c

KBPC10-06DW

10A, 600v
  2.50
  2.50
  2.50




  rectifier d

    1.115" x 1.115"


KBPC25-02

25A, 200v
  2.50
2.50
2.50




  rectifier d

MDA3500

35A, 50v
  3.95
  3.95
  3.95




  rectifier d

    1.115" x 1.115"

KBPC35-01

  35A, 100v
  2.65
  2.45
  2.35




  rectifier d

    1.115" x 1.115"

KBPC35-02

  35A, 200v
  2.65
  2.45
  2.35




  rectifier d

    1.115" x 1.115"

KBPC35-04

  35A, 400v
  2.70
  2.55

2.45





  rectifier d

    1.115" x 1.115"

KBPC35-08

35A, 800v
2.70
2.55
2.45




  rectifier d

    1.26" x 1.26"

KBPC50-10 (KEST)

  50A, 1000v


    3.45
  3.20
  2.95




  rectifier d

    1.115" x 1.115"

KBPC50-10 (SSI)

  50A, 1000v


    3.45
  -
  -






DD25-F160

25A, 1600v

  1/2 bridge / voltage doubler
  8.95
  8.95
  8.95




  see info below

EFF15C

100/130A, 240 VAC
 47.70
 47.70
 47.70

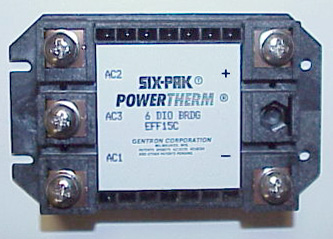

 Six Diode Bridge Rectifier













          EFF15C



 for Single Phase or 3 Phase Rectification



                  240 VAC



                High Thermal Efficiency




Part Number: EFF15C


Price: $47.70 each

















                Electrical Specifications




                Symbol
                Specifications
                Ratings




                VF
                  Maximum Voltage Drop @ Amps Peak
                1.4V @ 100A




                TJ
                  Operating Junction Temperature Range
                -40¡C to +125¡C




                di / dt
                  Critical Rate of Rise of On-State Current @ TJ=125¡C
                100A / µs




                dv / dt
                  Critical Rate of Rise of Off-State Voltage [V / µs]
                500V / µs




                VRRM
                  Repetitive Peak Reverse Voltage (AC Line)
                600 (240 VAC)




                ITSM
                  Maximum Non-Repetitive Surge Current (¸ Cycle, 60Hz)
                1500 A




                I2T
                  Maximum I2T for Fusing (t=8.3ms) [A2sec]
                9340




                IGT
                  Maximum Regquired Gate Current to Trigger @ 25¡C
                150mA




                VISOL
                  Isolation Voltage
                2500 VRMS

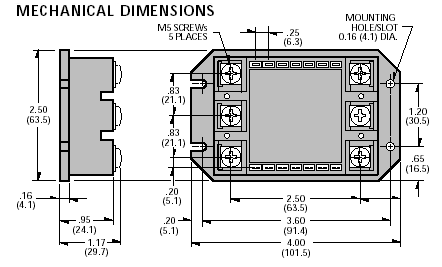

            All dimensions are in inches (millimeters)







                2 phase

      2 phase
                3 phase

      3 phase



























Price and availability subject to change without notice.
