CX-120P

CX-120P
Specifications

Impedance: 50 Ohms.

VOLTAGE
Pull in: 9.0Vdc-15Vdc(12Vdc Nominal)
Drop out: 1.5Vdc Min.
Current: 80mA@12Vdc 20°C
Coil Resistance 150 Ohms. 10% 20°C

MECHANICAL
Contact Arrangement : SPDT
Operational Temperature: -50°C to 70 °C
Weighting: Approx. 70gs.
Mounting: Printed board only

ELECTRICAL CHARACTERISTICS
Frequency (MHz) VSWR (Max) Isolation -dB[min] Ins. Loss -dB[max] Input (W)
50
1.05
60
0.05
250
150
1.1
50
0.1
200
500
1.3
40
0.2
150
1000
1.4
29
0.25
150

SWITCHING TIME
Pull in: 20ms typical
Drop out: 15ms typical
Life Expectancy: 1,000,000 Operation Min.

COIL CHARACTERISTICS
Nominal Voltage: 12Vdc/24Vdc
Voltage Range: 9Vdc-14Vdc/
18Vdc-26Vdc
Coil Resistance Ohms: 150/600
Mounting: -

SCHEMATIC

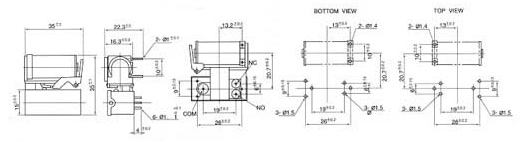

DIMENSIONS

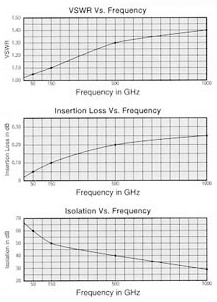

TYPICAL OPERATING CURVES
Back to Coaxial Relays
