CX-600NC

CX-600NC
Specifications

Impedance: 50 Ohms.

VOLTAGE
Pull in: 9.0Vdc-16.5Vdc(12Vdc Nominal)
Drop out: 1.5Vdc Min.
Current: 160mA@12Vdc 20°C
Coil Resistance 75 Ohms. 10% 20°C

MECHANICAL
Contact Arrangement: SPDT
Operational Temperature: -50°C to 70 °C
Weighting: Approx. 230gs.
Mounting: Two Screws
Cable Connections: 1 N Type female connector; Directly connect cable

ELECTRICAL CHARACTERISTICS
Frequency (MHz) VSWR (Max) Isolation -dB[min] Ins. Loss -dB[max] Input (W)
50
1.03
60
0.07
1.0 CW
150
1.1
48
0.1
1.0 CW
500
1.15
37
0.15
0.8 CW
1000
1.2
28
0.2
0.5 CW
1500
1.2
26
0.2
0.35 CW
2000
1.25
23
0.23
0.1 CW

SWITCHING TIME
Pull in: 20ms typical
Drop out: 15ms typical
Life Expectancy: 1,000,000 Operation Min.

COIL CHARACTERISTICS
Nominal Voltage: 12Vdc/24Vdc
Voltage Range: 9Vdc-16.5Vdc/
18Vdc-26.5Vdc
Coil Resistance Ohms: 75/300
Mounting: -

SCHEMATIC

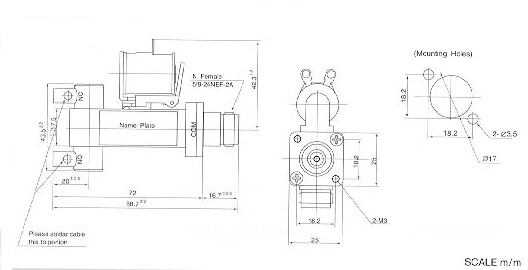

DIMENSIONS

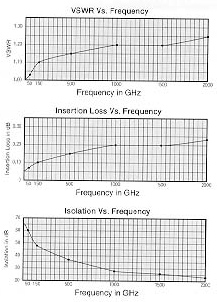

TYPICAL OPERATING CURVES
