7422 Bird Coaxial Switch, 1 circuit, 2 Postion, 50 ohm (PULL)


Roll over image to zoom
$291.91
In Stock
OR

SPDT Coaxial Selector Switch 50 ohm Type-N Female DC-10 GHz
Used * No longer available for Export
MFR: Bird Electronics
SKU: 7422-P


Made in the USA

Be the first to review this product


Details

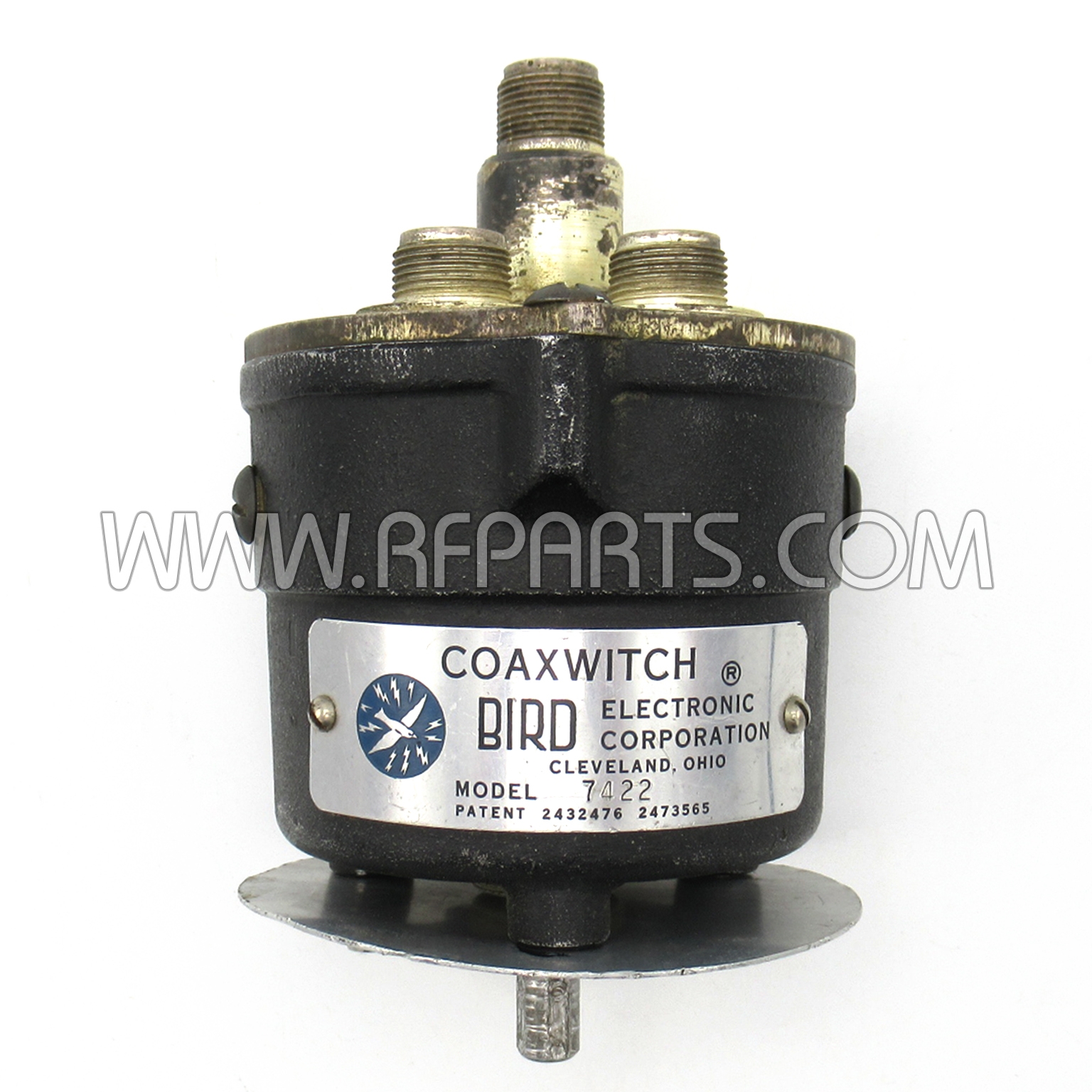

7422 Bird SPDT Coaxial Selector Switch 50 ohm Type-N Female DC-10 GHz (Pull)

No longer available for export
Clean Used, Missing Knob
MFR: Bird Electronics
Picture for reference only, Cosmetic condition may vary

Bird's RF Selector Switches employ a unique, rugged and reliable design which permits positive contact, low insertion VSWR and negligible cross talk between channels. The switching mechanism is 4 1/2" of RG-87/U Teflon cable which is pulled away from the mating Male N connectors and rotated to the desired switch position.

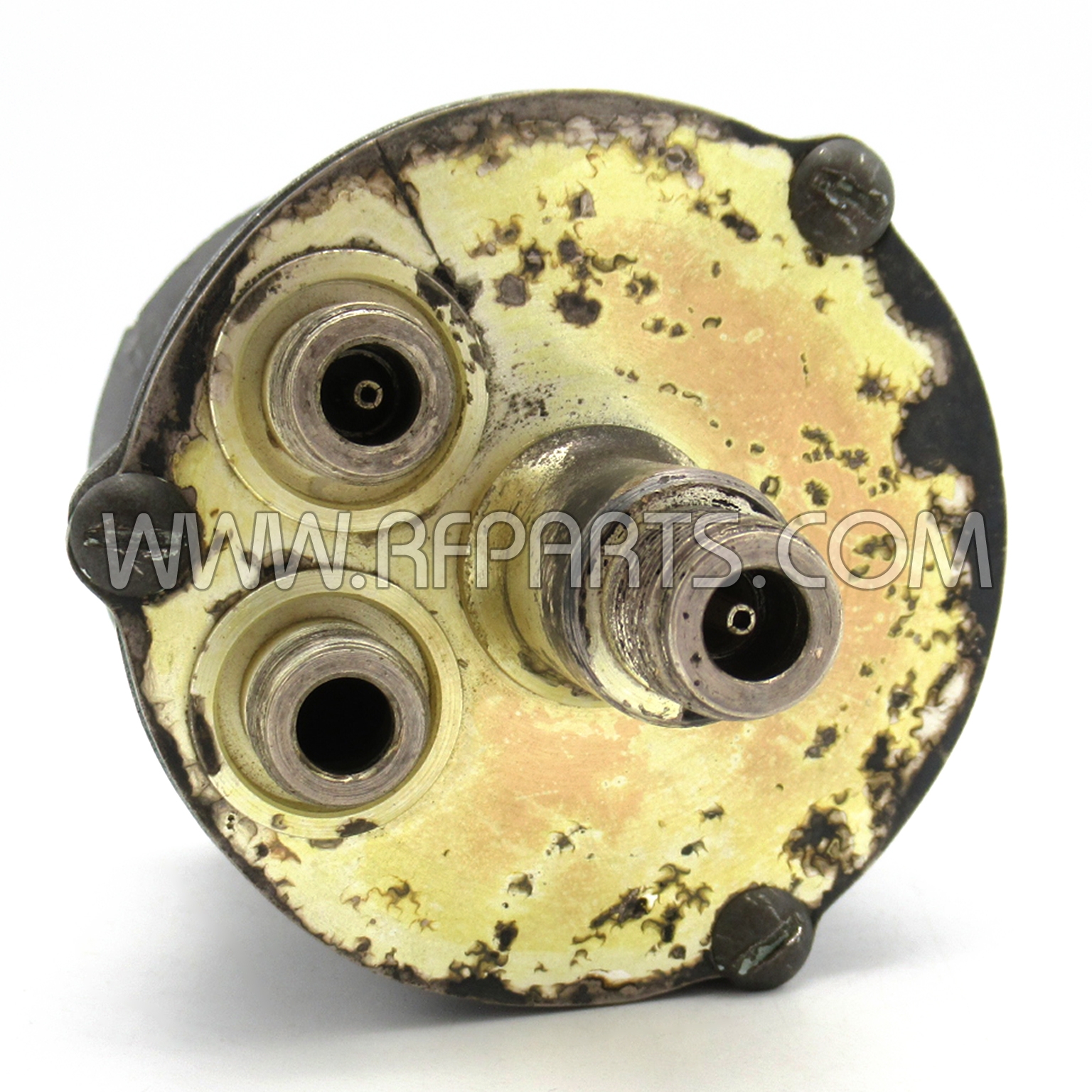

The Selector Switches may be panel-mounted. All connectors are located on the rear of the housing and are parallel to the shaft of the switch. All connecting cables may be laced together without the use of right-angle adapters.

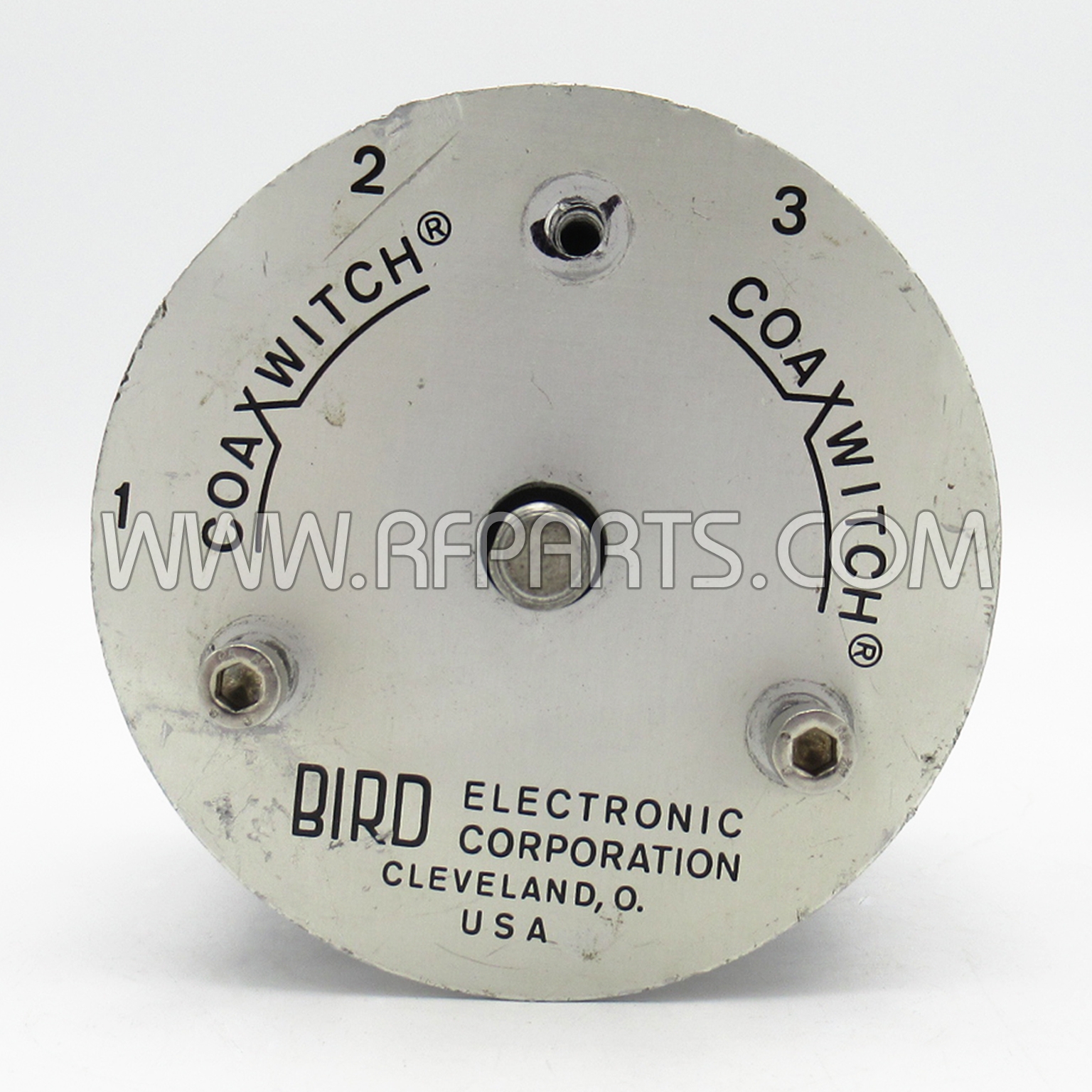

The switches have a valuable advantage that they cannot be operated accidentally, but must be operated by intentional sequential movement. The knob must be grasped, pulled out, rotated and pushed in to make contact.

  • Switches may be panel-mounted
  • Cannot be operated accidentally
  • Easy to Use
  • Rugged and Reliable

product specifications:

Item No 7422
Item Name 50-Ohm, 2 Position Coaxial Selector Switch
Positions 2
Coaxial Circuits 1
Frequency Range DC to 10 GHz
Maximum RF Voltage 500 V
Attenuation For unused channel - 75 dB (cross talk)
Temperature Range -60 to +65 °C (-76 to +149 °CF)
Weight 2-1/2 lbs. (1.1 kg)
Typical Operation Values
Frequency
VSWR
Insertion Loss
Max. RF Power Rating @ 65°C
100 MHz
Negligible
0.02 dB
850 W
1000 MHz
1.06 max.
0.09 dB
200 W
4000 MHz
1.30 max.
0.22 dB
75 W









Made in the USA

Additional Information

Featured Product No
Made in the USA Yes
Manufacturer Bird Electronics
NOS No
Call For Price No
Manufacturer Name BIRD ELECTRONICS
