RF Parts Company

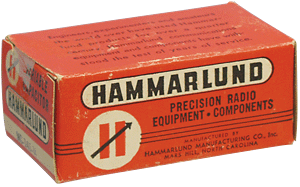

Hammarlund Capacitors
by Hammarlund Manufacturing Co., Inc.

• Minimum Order: $25.00 in Parts
• Product Returns are subject to 15% Re-stock fee.

Back to Capacitors Main Page

Hammarlund
Limited quantity, subject to stock on hand.
Part Number Capacitance Plates per Section Dimensions, Inches. Price Ea.
Max. Min.

 35 6.0 5 1-7/32
21.95

 50 6.3 7 1-7/32
24.95
MC-50-S
 50 6.5 7 1-7/32
24.95
MC-100-S
 99.6 5.8 14 1-1/16
24.95
MC-100-X
Double Spaced
100 16.5 35 -
24.95
MC-140-M
 140 9.0 19 1-19/32
24.95
MC-140-S
 140 10.0 19 1-19/32
24.95
MC-200-M
 200 10.3 27 2
26.95
MC-35-MX
 32 7.8 11 1-19/32
21.95
MC-100-SX
 100 16.5 35 3-29/32
27.95

APC-25
 25 3.0 7 21/64
15.00
APC-25-B
 25 3.0 7 21/64
15.00
APC-25-C
 25 3.0 7 21/64
15.00
APC-30-P
 30 3.0 15 13/16
16.95
APC-50
 50 3.9 14 1/2
16.95
APC-50-B
 50 3.9 14 1/2
16.95
APC-50-C
 50 3.9 14 1/2
16.95
APC-75
 75 4.6 20 11/16
18.95
APC-75-C
 75 4.6 20 11/16
18.95
APC-100-C
 100 5.5 27 59/64
18.95

HF-15
 17.5 2.8 5 17/64
15.00
HF-50
 52 3.7 14 1/2
19.95
HF-15-X
 15 3.6 10 23/32
14.95
HF-30-X
 30 5.2 20 1-5/16
19.95

HFA-15-B
 16 2.8 5 7/8
Air Gap: 0.020
19.95
HFA-50-B
 50 4.3 14 1-3/8
Air Gap: 0.030
21.95

MAC-10
 9.6 1.5 9 -
15.00
MAC-15
 15.8 1.9 15 -
19.95
MAC-20
 21.5 2.2 21 -
19.95
MAC-30
 32.0 2.5 27 -
19.95
MAC-10-10
 9.6 1.5 Rotor: 5
Ea. Stator: 4 		-
19.95
MAC-15-15
 15.8 1.9 Rotor: 8
Ea. Stator: 7 		-
19.95
MAC-20-20
 21.5 2.2 Rotor: 11
Ea. Stator: 10 		-
19.95

MAPC-15
 15 2.3 6 17/64
19.95
MAPC-15C
 15 2.3 6 17/64
19.95
MAPC-25
 25 2.6 10 3/8
19.95
MAPC-25B
 25 2.6 10 3/8
19.95
MAPC-25C
 25 2.6 10 3/8
19.95
MAPC-35
 35 2.9 14 15/32
19.95
MAPC-50
 50 3.2 19 37/64
19.95
MAPC-50B
 50 3.2 1.9 37/64
19.95
MAPC-50C
 50 3.2 1.9 37/64
19.95
MAPC-75
 75 3.9 29 53/64
21.95
MAPC-75B
 75 3.9 29 53/64
21.95
MAPC-100
 100 4.5 38 1-5/64
21.95
MAPC-100-C
 100 4.5 38 1-5/64
21.95




Misc. Hammarlund Caps

9420-10-10023
 420 20 55 3-1/4
29.95
F1-397
 20 7 4 1.7" x 1.7" x 1.8 "
(Shaft Length 4.5")
24.95



Misc. Items

FC46S
 Flexible Coupling
12.95
FNC46S
 Flexible Coupling
12.95

Back to Capacitors Main Page


Price and availability subject to change without notice.
