Capacitors
Variable Tuning & Load

• Minimum Order: $25.00 in Parts
• Product Returns are subject to 15% Re-stock fee.









On this page
















      Back to Capacitors Main Page














Dimensions shown on this page DO NOT include tuning shaft.








    Variable Capacitors






      Heavy Duty Variables for Amplifiers and Antenna Tuners




    Our Part Number
    Sec's
    Min/Max

      Cap pF
    Total Plates
    Plate Spacing
    Peak

      Volts
    Overall

      W x H x L
    Net Each

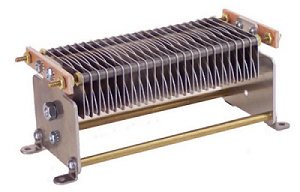

C320


Palstar logo

    C320
    1
    21-315
    45

    4.5 kV
    3 " x 3 " x 6"
    $109.95





C350-6KV


Palstar logo

    350-6
    1
    25-350
    45
    0.125
    6 kV
    3.8" x 3.8" x 9.3"
    115.00





C440-D

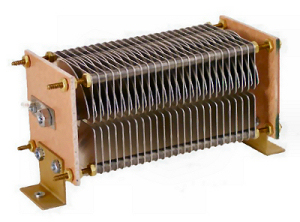

Palstar logo

    C440D

      This is a differential capacitor with two stators & one rotor.
    2
    24-440


    3 kV
    3 " x 3.5" x 6"
    129.95

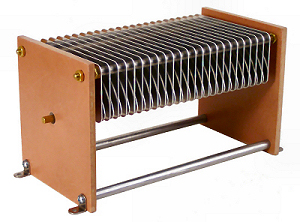

C600


Palstar logo

    C600
    1
    23-585
    47

    6 kV
    5 " x 5.125 " x 9.125"
    179.95

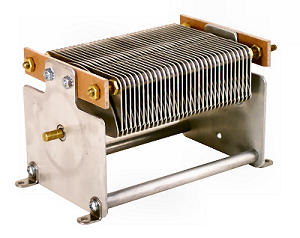

C1350


Palstar logo

    C1350
    1
    29-1400


    1.0 kV
    4 " x 4 " x 5.5"
    169.95





154-3-1*

    Cardwell
    1
    19-488
    45
    .045
    -
    -
    65.95





154-11-1*

    Cardwell
    1
    9-38
    9
    .125
    -
    -
    44.95





MC100SX

    Hammerlund
    1
    16.5x100
    35
    .062
    2800V
    1.6" x 1.6" x 4.5"
    27.95










  Variable Tuning & Load Capacitors




  Broadcast Variable Style Antenna Load Capacitors are here.





























        The M-73 is a high-voltage, heavy-wattage, continuous duty capacitor. Insulation between rotor and stator is achieved through 1/4" thick, high quality, military spec ceramics riveted to the plated steel end plates. These end plates are tied together by solid aluminum and brass bars, forming a rigid structure. The rotor rides on ball bearings housed between the front end plate and the stainless steel shaft. Blades are heavy .030" thick aluminum. Length dimension is measured from ends of mounting feet.










  Our Part Number
Sec's
Min/Max

Cap pF
Total Plates
Plate Spacing
Peak

Volts
Overall

W x H x L
Net Each

















  73-112-15
  1
  14-70
  15
  .118
  4500V
  2.6" x 2.6" x 3.3"
  49.95




  73-175-17
1
10-110
17
.060
2800V
2.6" x 2.6" x 4"
49.95




  73-175-23
  1
  14-155
  21
  .075
  3200V
  2.6" x 2.6" x 4.8"
  54.95




  26-96**
  1
  20-160
  23
  .075
  3000V
  2.6" x 2.6" x 4.3"
  59.95




  73-180-35/

26-131A
1
20-215
35
.080
3600V
2.6" x 2.6" x 6.2"
59.95




  73-145-25
1
20-240
27
.045
2000V
2.6" x 2.6" x 3.6"
49.95




  73-1100-49
1
20-240
49
.090
4000V
2.6" x 2.6" x 8.5"
59.95




  73-1100-54
1
35-280
54
.100
4400V
2.6" x 2.6" x 9.3"
59.95




  73-132-53
1
25-840
53
.030
1200V
2.6" x 2.6" x 5.7"
64.95





























  20-160
2
10-70 / 10-90
34
.065
2500V
3" x 2.2" x 4.6"
29.95




  47-887
2
22-430 / 25-457
40
.030
1200V
4.1" x 3.5" x 3.6"
32.95




  Variable Split Stator
  12050

  10-50/10-50
  12/12
  .080
  3600V
  2.6" x 3.0"
  79.95






    **Shaft length and mounting cut to fit SB200.



















      Our Part Number
      Sec's
      Min/Max

      Cap pF
      Total Plates
      Plate Spacing
      Peak Volts
      Overall

      W x H x L
      Net Each




      48APL30

        (
      sub for 48APL41S )
      CAP L
      1
      5-30
      15
      .048
      2000V
      1.5" x 1.4" x 1.5"
      15.85

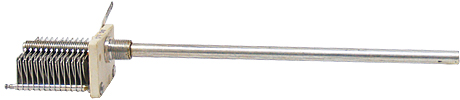

      074-047
      074-047





      1
      5-100
      26
      .032
      1200V
      1.5" x 1.4" x 2"

          (Shaft Length 5.75")


      19.90




      19100

      1
      7-100
      13
      .032
      1200V
      1.5" x 1.7" x 2"
      19.95




      189-569
      1
      2-24
      20

      250VDC

      13.95




      20APL300DE**

      1
      12-300
      49
      .020
      1200V
      1.4" x 2.5" x 1.3"
      23.95




      HF15
      CAP L
      1
      3-15
      5
      .020
      750V
      1.3" x 1.3" x .8 "
      15.00




      F1-397

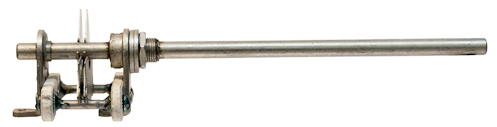

      Mfg: Hammarlund
      1
      7-20
      4
      .030
      500V
      1.7" x 1.7" x 1.8 "

        (Shaft Length 4.5")
      24.95




      **20APL300S is the same capacitor as "DE" version, but with ceramic end plate for added strength.
















Part Number

Shaft

  Dia x Lth

  inches


Sec's
Min/Max

Cap pF
Total Plates
Plate Spacing
Peak Volts
Overall

W x H x L
Net

Each




CT10042G
CT10042G
1/4 x 3/8
1
5-45
12
.016
250V
0.9" x 1.2" x 1.2"
$12.95




  7254174

7254174

  1/4x3/4
  1
  3-60
  17
  .020
  350V
  0.8" x 1.2" x 4.3"
  12.95




  48B084E
  1/4 x 3/4
  1
  7-140
  39
  .016
  250V
  1" x 1.2" x 2"
  14.95




29516
3/16 x 7/16
1
2-12
5
.025
500V
0.6" x 0.8" x 0.6"
 14.95




  K44J406
  1/4 x 1/5
  1
  2-21
  5
  .020
  350V
  0.7" x 1.2" x 1.2"
   14.95




  922-0014
  7254174
  slot
  1
  3-36
  12
  .015
  250
  .08" x 1.1" x 1.1"
  14.95




  074-054
  1/4x3/8
  1
  5-26
  18
  .045
  1500V
  1"x1.2"x1.8"
  13.95




  5M11


  3/16 x 1/4
  1
  0.5-5
  5
  .016
  250V
  0.5" x 0.7" x 0.8"
    10.95




15M11
3/16 x 1/4
1
1-15
15
.016
250V

  10.95




  VC55-250
  3/16 x 1/4
  1
  1-15
  14
  .016
  250V
  0.8" x 1" x 1"
    8.95




  160-110-1
  3/16 x 1/4
  1
  3-20
  22
  .016
  250V
  0.6" x 0.8" x 1.3"
    12.95




160-107-1
3/16 x 1/4
1
2-13
15
.16
250V
0.6" x 0.8" x 1"
  10.95




  158-4

  slot
  1
  3-70
  20
  .015
  250
  .09" x 1.2" x 1.3"
  14.95




  167-1

  -
  1
  2-10
  3
  .032
  1200V
  1.4" x 1.4" x 0.9"
  19.95




  ASP27
  asp27
  1/4 x 3/8
  1
  7-27
  20
  -
  -
  .95" x 1.25" x 1.96"
  17.95




  563-7625-03

    Mfg. Cambian

  0.41 x 0.22
  1
  4-35
  14
  -
  -
  .785" x .95" x 1.0"
  12.95




  9411-72

  SLOT
  1
  10-140
  47
  .016
  250V
  1" x 1.2" x 2.5"
  14.95




  148-81-11

  .125 x .3
  1
  6-30
  34
  -
  -
  13/16" x 7/8" x 2-3/8"
  13.95

























            Heathkit Replacement
            Improved version of Heathkit 26-131 to reduce tendency of arc-over.

              Direct replacement, no changes necessary.





              Part Number: 73-180-35     •     $59.95 ea.
