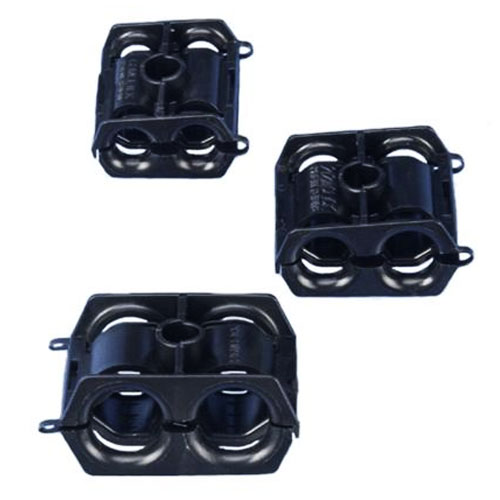

1316MCLICK Andrew/CommScope Miniature Click-on Hanger for 13–16 mm cable 10/Pkg (Clamps Only)

Roll over image to zoom
$31.91
In Stock
OR

Hanger clamp for 2 cables.  Use with 252026-10KT-P Angle clamp and 5/16" Rod & Hardware kit.  See options below.
NOTE: Hardware Sold Separately
MFR: Andrew/CommScope
SKU: 1316MCLICK
NOTE:  Use the following hardware:
252026-10KT-P  Angle Adapter, miniature, (5/16") tapped hole, 10pk (Clamp Only)
252027-10KT-P  5/16" Rod & hardware for stacking one hanger kit  (Rod is 2-1/2")
252028-10KT-P  5/16" Rod & hardware for stacking two hanger kits  (Rod is 6")
252029-10KT-P  5/16" Rod & hardware for stacking three hanger kits  (Rod is 10-5/16")
68MCLICK  Hanger Clamp for 6-8mm Cable or wire
912MCLICK  Hanger Clamp for 9-12mm Cable or wire



Be the first to review this product


Details

1316MCLICK Andrew/CommScope Miniature Click-on Hanger for 13–16 mm cable 10/Pkg (Clamps Only)

Hanger clamp for 2 cables.  Use with 252026-10KT-P Angle clamp and 5/16" Rod & Hardware kit.  See options below.
MFR: Commscope
NOTE:  Use the following hardware:
252026-10KT-P  Angle Adapter, miniature, (5/16") tapped hole, 10pk (Clamp Only)
252027-10KT-P  5/16" Rod & hardware for stacking one hanger kit  (Rod is 2-1/2")
252028-10KT-P  5/16" Rod & hardware for stacking two hanger kits  (Rod is 6")
252029-10KT-P  5/16" Rod & hardware for stacking three hanger kits  (Rod is 10-5/16")
68MCLICK  Hanger Clamp for 6-8mm Cable or wire
912MCLICK  Hanger Clamp for 9-12mm Cable or wire

Dimensions
Nominal Size   1/2 in   |   3/8 in
Compatible Diameter, maximum   16.256 mm   |   0.640 in
Compatible Diameter, minimum   13.716 mm   |   0.540 in
Height   38.00 mm   |   1.50 in
Length   55.00 mm   |   2.17 in
Width   25.00 mm   |   0.98 in

Electrical Specifications
DTF Effect   0.1 dB
Return Loss Effect   0.1 dB

General Specifications
Hanger Type   Click-on hanger
Cables per Hanger   2
Color   Black
Material Type   Engineered plastic
Maximum Stack Height   3
Ordering Note   CommScope® standard product in Europe, the Middle East, and Africa   |   CommScope® standard product in the United States and Canada
Package Quantity   10

Mechanical Specifications
Mounting   M8 tapped hole
Operating Temperature   -40 °C to +85 °C (-40 °F to +185 °F)
UV Resistance, minimum with no degradation   ≥100 hours exposure in accelerated UV life chamber
Vibration Survival   ≥4 hours at the resonant frequency
Environmental Strength Capability   Double cable weight

Packed Dimensions
Height   44.7 cm   |   17.6 in
Length   17.7 cm   |   7.0 in
Shipping Weight   0.05 kg   |   0.12 lb
Width   39.4 cm   |   15.5 in

Additional Information

Featured Product No
Made in the USA No
Manufacturer No
NOS No
Call For Price No
Manufacturer Name Commscope
