47-887 Low Shaft Friction Variable Capacitor, 22-430, 25-457 uf

Roll over image to zoom

Regular Price: $59.95

Special Price $49.95

In Stock
OR

47-887 Low Friction Shaft Variable Capacitor, 22-430, 25-457 uf, MFR: Cardwell (SEE NOTES IN DESCRIPTION)




Be the first to review this product


Details

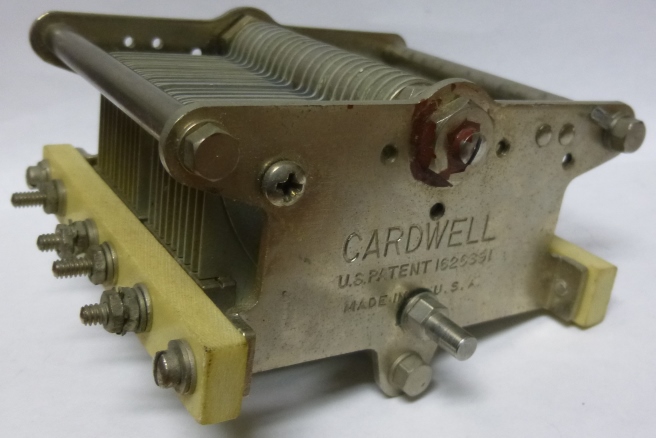

47-887 Low Friction Shaft Variable Capacitor, 22-430, 25-457 uf

This Capacitor was removed from Servo Controlled Transmitters that required Low Friction.  The shaft moves relatively freely.

Plates: 21 on front section and 19 on rear section.

Capacitance: 22-430 pf on front section and 25-457 pf on rear section.

Size:  Overall dimensions including gears and mounting plate: 4.47" long, 4.27" wide, 3.25" High.

Size: Capacitor only.  3.61" Long, x 3.875" Wide, x 3.325" High

Gear Diameter: Large Gear: 1.49" and Small Gear: 0.685"

NOTE: Use of Shaft Coupler or mounting position could help create friction drag on shaft. Gears are removable, but will require removing locking pin. There is picture of how it comes and with gear removed.

MFR: Cardwell

Limited Quantity Available, Clean Used Condition.  Removed from working equipment.

Additional Information

Featured Product N/A
Made in the USA N/A
Manufacturer Cardwell
Manufacturer Name No
