72-2 Bird Coaxial Switch Assembly with Three 72-2 rack mounted switches DPDT 50Ω 10GHz VDC (Pull)


Roll over image to zoom
$2,991.91
In Stock
OR

Connectors: N-Type (F)
Frequency Range: DC - 10 GHz
RF Voltage: 500 Volts rms (max)
Attenuation to Unused Channel: 75 dB (cross talk)


Used * No longer available for export
MFR: Bird Electronics, USA
SKU: 72-2-Triple-P

Made in the USA

Be the first to review this product


Details

72-2 Bird Coaxial Switch Assembly with Three 72-2 rack mounted switches DPDT 50Ω 10GHz VDC  (Pull)

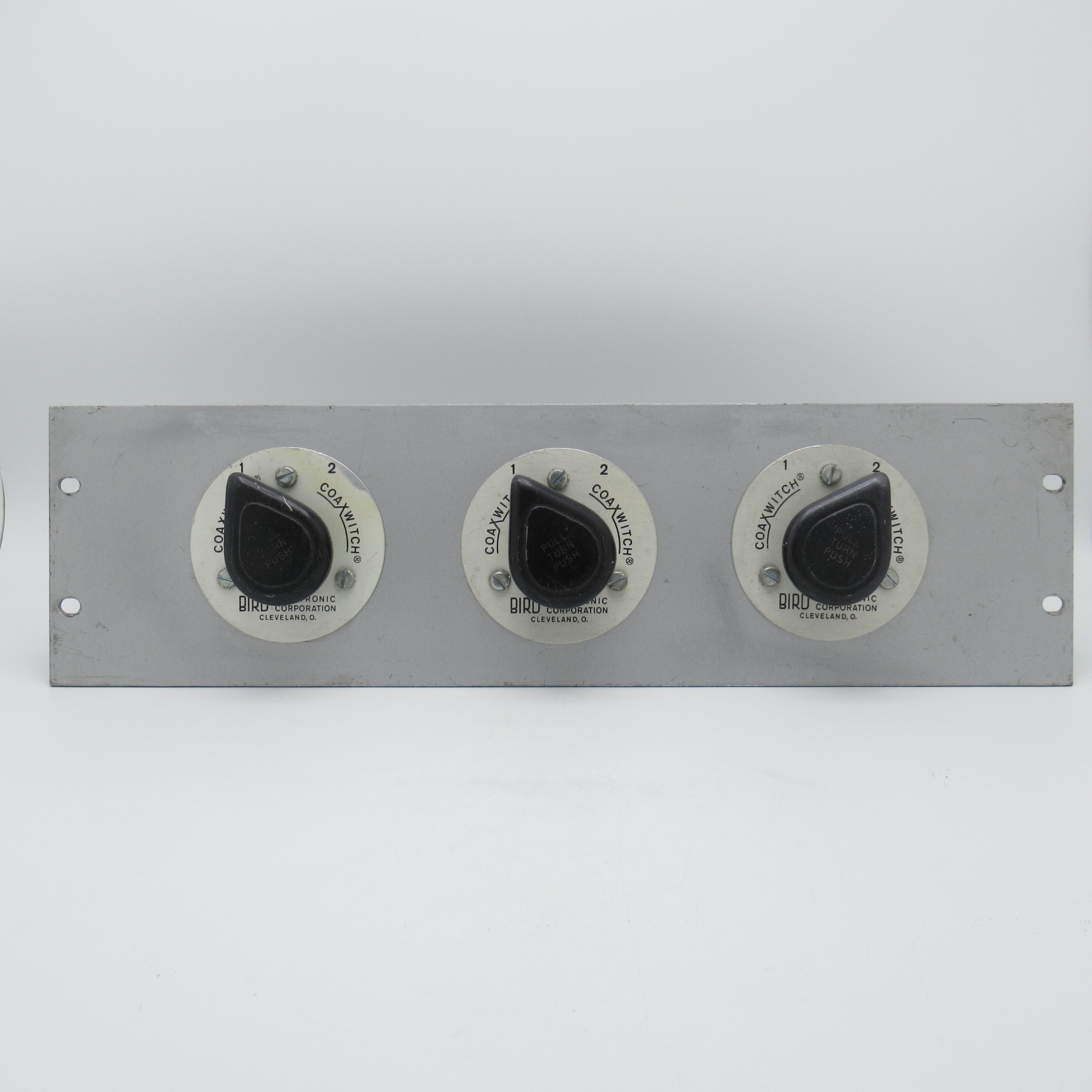

Three 72-2 Coaxial Switches mounted on rack panel. Panel size is 19" Long x 5.25" High.
Type-N Female Connectors

Bird®, 50-Ohm Coaxial Selector Switches employ a unique, rugged and reliable design which permits positive contact, low insertion VSWR and negligible cross talk between channels. The switching mechanism is 4 1/2" of RG-87/U Teflon cable which is pulled away from the mating Male N connectors and rotated to the desired switch position.

The switches have a valuable advantage that they cannot be operated accidentally, but must be operated by intentional sequential movement. The knob must be grasped, pulled out, rotated and pushed in to make contact.

Used * No longer available for export
MFR: Bird Electronics

Made in the USA

Additional Information

Featured Product No
Made in the USA Yes
Manufacturer No
NOS No
Call For Price No
Manufacturer Name Bird Electronics
