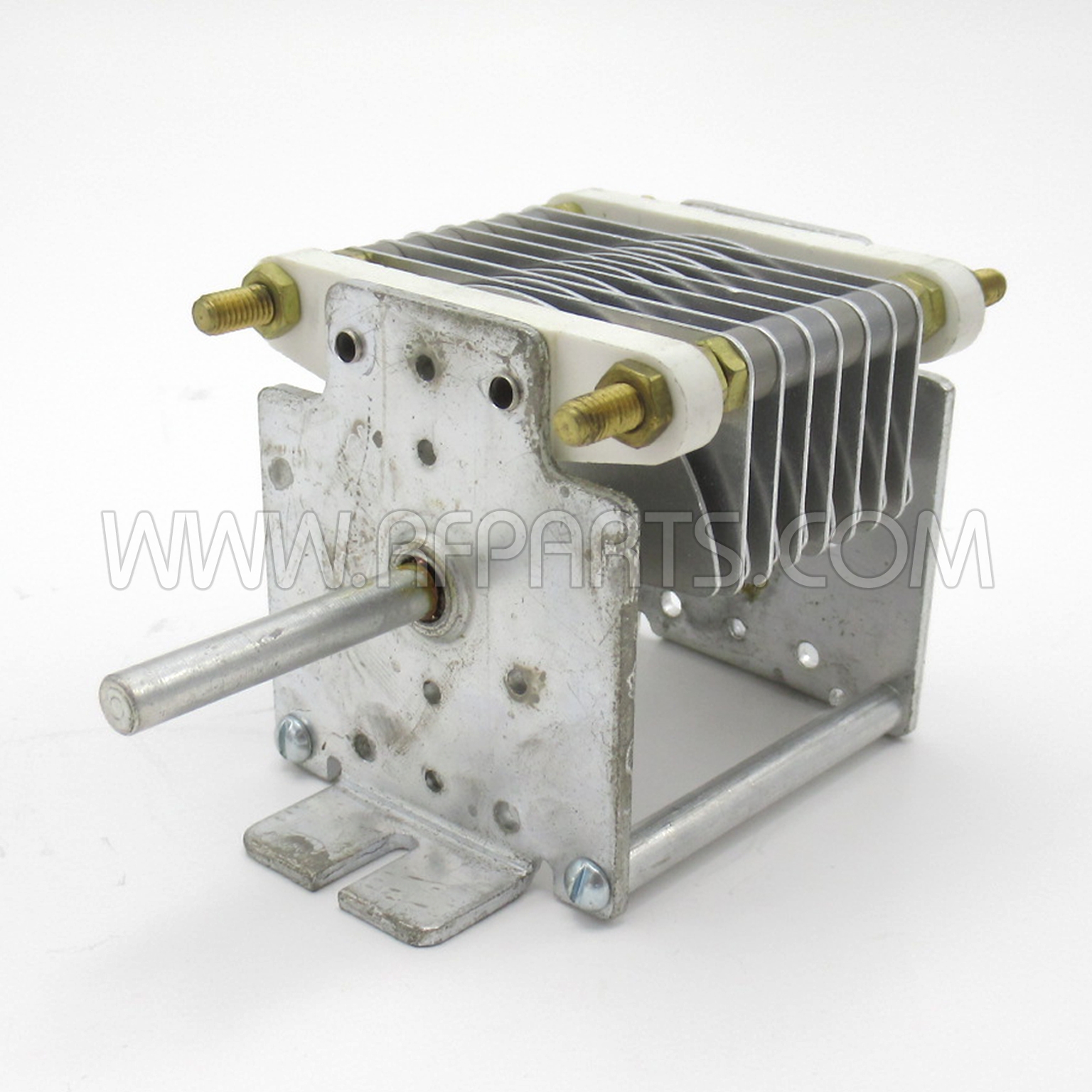

73-1-75-15 OEP Variable Capacitor 11-100pf 2.5kv


Roll over image to zoom
$80.91
In Stock
OR

  • Plates: 15, Spacing: .075"

  • Voltage: 2500 peak volts

  • Size: 2.615" Wide x 2.6" High x 2-6" Long (body) & 5." (Overall)

  • Shaft: 1/4" Round


MFR: OEP
SKU: 73-1-75-15

Made in the USA

Be the first to review this product


Details

73-1-75-15 OEP Variable Capacitor 11-100pf 2.5kv

The 73-1-75-15 is a high-voltage, heavy-wattage, continuous duty capacitor. Insulation between rotor and stator is achieved through 1/4" thick, high quality, military spec ceramics riveted to the plated steel end plates. These end plates are tied together by solid aluminum and brass bars, forming a rigid structure. The rotor rides on ball bearings housed between the front end plate and the stainless steel shaft. Blades are heavy .030" thick aluminum. Length dimension is measured from ends of mounting feet.

  • Plates: 15, Spacing: .075"
  • Voltage: 2500 peak volts
  • Size: 2.615" Wide x 2.6" High x 2-6" Long (body) & 5." (Overall)
  • Shaft: 1/4" Round

MFR: OEP



Made in the USA

Additional Information

Featured Product No
Made in the USA Yes
GTIN No
ISBN No
NATO Stock Number No
Manufacturer Part Number No
Manufacturer OEP
Condition New
NOS No
Call For Price No
Manufacturer Name OEP
