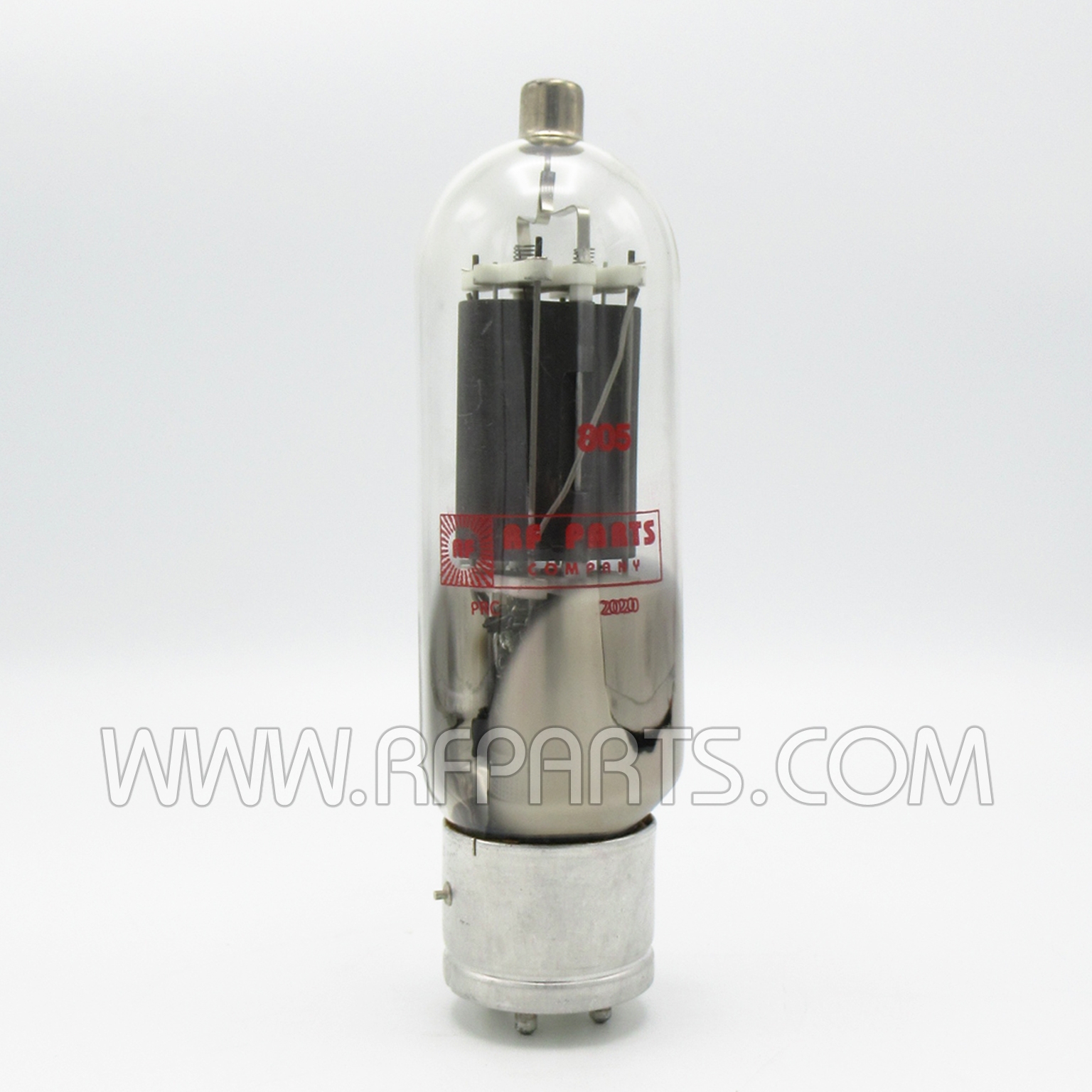

805 RF Parts Company Transmitting Triode Tube (331A)

Roll over image to zoom

Regular Price: $81.91

Special Price $77.91

In Stock
OR

  • Input Wattage: 315

  • 125W plate power.

  • Full ratings operation up to 30MHz

  • Up to 120MHz at reduced input

  • Also used as Class B modulator.


The grid of the 805 is designed so that the amplification of the tube varies with the amplitude of the input signal. This feature facilitates the design of Class B A-F amplifiers and modulators to give high output with low distortion.


MFR: China
SKU: 805-RFP


Be the first to review this product


Details

805 / 331A  RF Parts Company Transmitting Triode

  • Input wattage: 315
  • 125W plate power.
  • Full ratings operation up to 30MHz
  • Up to 120MHz at reduced input
  • Also used as Class B modulator.

A Husky high-mu transmitting triode of the thoriated-tungsten filament type with a maximum plate dissipation of 125 watts (CCS). It is designed both for class B modulator service and R-F amplifier service. Grid-bias requirements of the tube are unusually low. For example, at maximum plate-voltage rating of 1500 volts in class C telegraphy, a bias of only -10 volts is needed to protect the tube against loss of grid-excitation voltage.
The grid of the 805 is designed so that the amplification of the tube varies with the amplitude of the input signal. This feature facilitates the design of Class B A-F amplifiers and modulators to give high output with low distortion.

MFR: China

Additional Information

Featured Product No
Made in the USA No
GTIN N/A
ISBN N/A
NATO Stock Number N/A
Manufacturer Part Number N/A
Manufacturer No
NOS No
Call For Price No
Manufacturer Name GREENSTONE USA, INC.
