82-5378-RFX Type-N Female Crimp Connector, Cable Group C, Amphenol

Roll over image to zoom
  • Buy 10 for $5.95 each and save 5%
  • Buy 25 for $5.50 each and save 12%
  • Buy 100 for $5.30 each and save 16%
In Stock

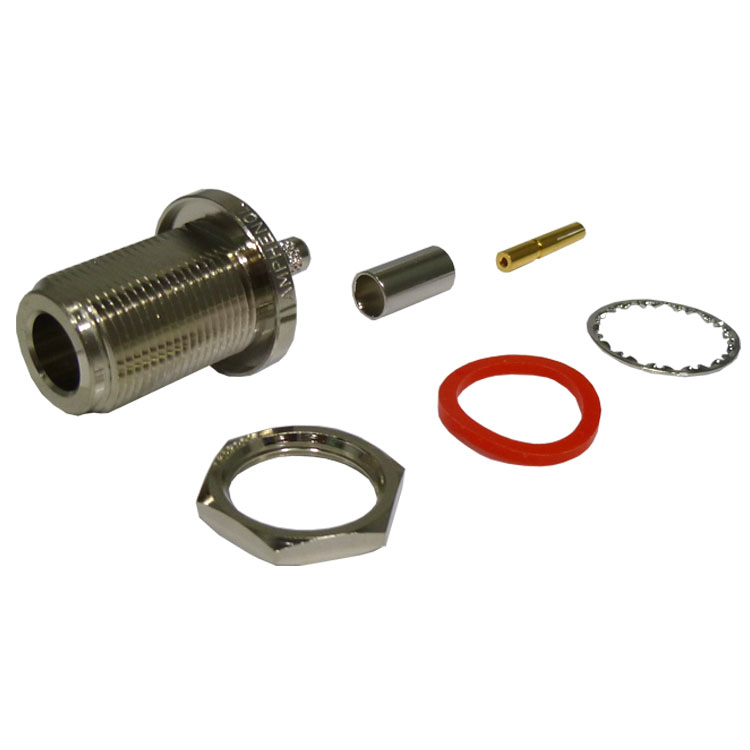

82-5378-RFX Type-N Female Crimp Connector, Straight, Bulkhead (Commercial Version), Cable Group C, LMR195, RG58, 50 ohm, Nickel, PTFE, MFR: Amphenol

Be the first to review this product


82-5378-RFX  Type-N Female Crimp Connector, Straight, Bulkhead (Commercial Version)

Cable Group: C

Cable Types: LMR195, RG58

Ohms: 50

Body: Nickel

Center Pin: Gold (Solder Pin)

Dielectric: PTFE

MFR: Amphenol

Brand Amphenol RF
Gender Jack
Orientation Straight
Termination Style Cable - Crimp
Impedance (Ohms) 50
Body Finish Nickel
Body Material Brass
Contact Finish Gold
Contact Material Phosphor Bronze
Contact Termination Style Crimp
Insulator Material PTFE
Cable Group C
Cable Type Belden 9907, Belden B7806A, LMR-195, RG-141, RG-303, RG-58, RG-58A, RG-58B, RG-58C
Coupling Mechanism Threaded
Mounting Feature Bulkhead - Rear Mount
Max Frequency (GHz) 11
Polarity Standard
Thread Direction Standard
Min. Temp. (Celsius) -65
Max. Temp. (Celsius) 165
Mating Cycles 500
Weight (Grams) 39.58

Additional Information

Featured Product N/A
Made in the USA No
Manufacturer Amphenol
Manufacturer Name AMPHENOL RF

Product Attachments

82-5378-RFX pdf 187.01 KB Download
