837 Tube, G-837 (Г-837) Beam Tetrode tube, MFR: VSI

Roll over image to zoom
$15.95
In Stock
OR

837 Tube,  G-837 (Г-837) Beam Tetrode tube, MFR: VSI (Russian)


Be the first to review this product


Details

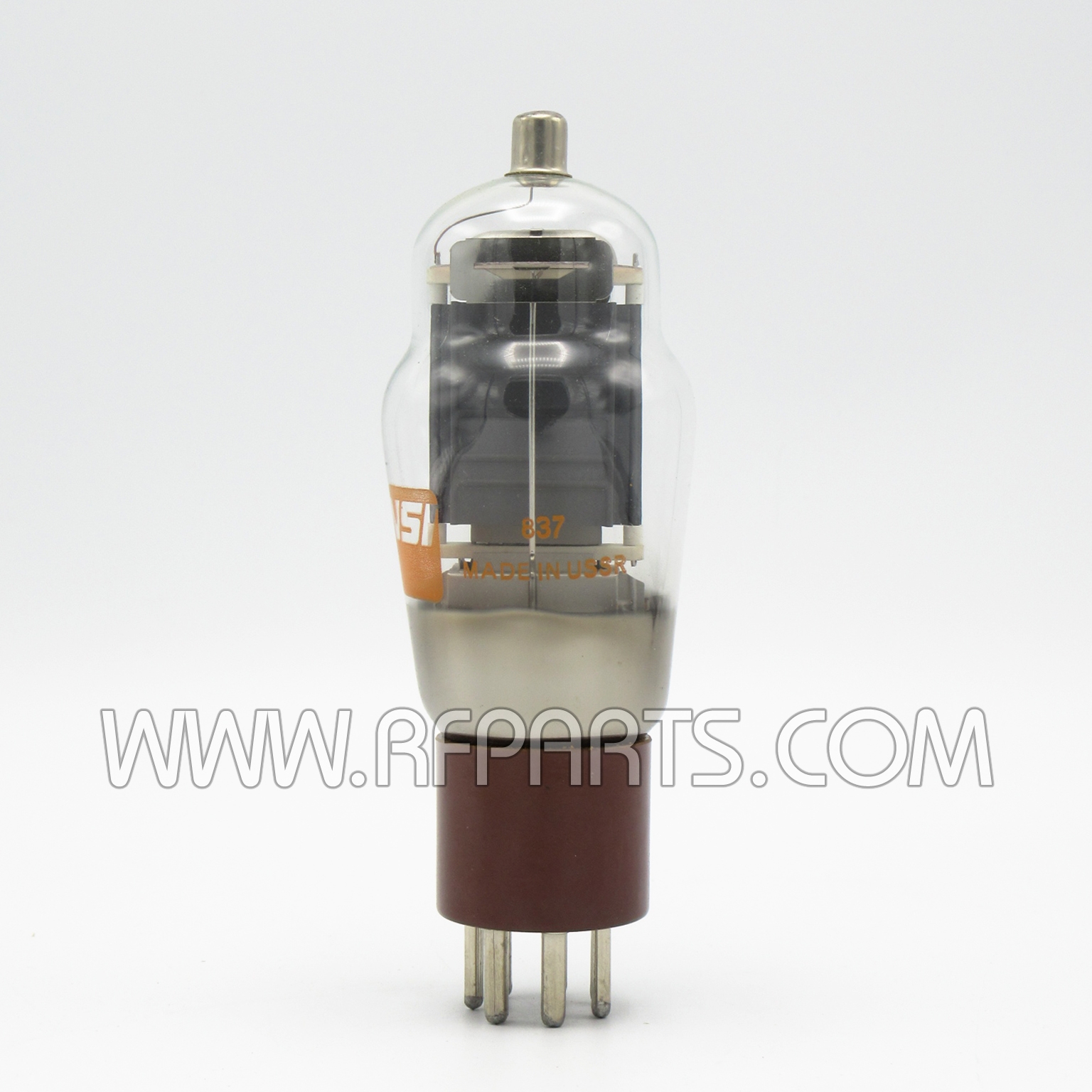

837 Tube, Beam Tetrode,  G-837 (Г-837) Beam Tetrode tube.

MFR: VSI  (Russia)

All tubes new, military equipment and have "OTK" mark. Near equivalent: 837 and PK44. The tube is manufactured by the Foton, Tashkent, Kazakhstan (now new factory is Ulyanovsk).

General characteristics:
Name: G-837 (G837)
Filament voltage, V: 12.6
Heater current, A: 0.7
Type of current: AC
Anode voltage, V: 500
Second grid voltage, V: 0
Voltage grid of the first, V: -85
Anode, mA: 60
Grid current second, mA: 30
Steepness, mA/V: 3,4
Input capacitance, pF: 16
Internal resistance, kOm: 10
Output capacity, pF: 10
Maximum power dissipation second grid, W:8
Output power, W: 20

Additional Information

Featured Product N/A
Made in the USA N/A
Manufacturer VSI (Russia)
