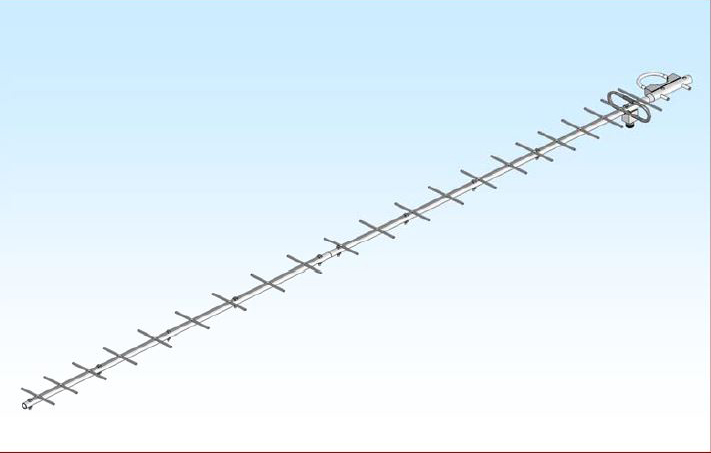

23CM22EZA M2 Antenna Systems 1250 to 1300 MHz Antenna (Pull)

23CM22EZA M2 Antenna Systems 1250 to 1300 MHz Antenna (Pull)

The 23CM22EZA is a true product of the computer age. The recently updated element design is stamped out holding spacing and element lengths to .003” tolerance. The original fiberglass boom has been replaced with 1/2” dia. aluminum. The metal boom shortens the elements for peak gain at 1296. Each antenna performs as perfectly as the next and the gain tops any other antenna of comparable boom length. With excellent directivity and a very clean pattern, it is perfect for high gain stacked arrays. Applications are long haul tropo, EME, ATV, Repeater, base station and OSCAR operations. The 'EZ' is handy for ‘hill-topping’ and portable uses because of its modest size, weight, simple construction and rear mounting.

Model ......................................... 23CM22EZA
Frequency Range ....................... 1250 To 1300 MHz
*Gain .......................................... 18.2dbi 1290-1300 MHz
Front to back .............................. 28 dB Typical
Beamwidth ............................... E=24° H=24°
Feed type ................................... Folded Dipole
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1:1 Typical
Input Connector .......................... “N” Female
Power Handling .......................... 600 Watts
Boom Length / Dia ...................... 70” / 0.50”
Maximum Element Length .......... 4.5”
Turning Radius: .......................... 68”
Stacking Distance ....................... 23” High & 23” Wide
Mast Size .................................... 1-1/4” to 2” Nom.
Wind area / Survival ................... 0.3 Sq. Ft. / 100 MPH
Weight / Ship Wt. ........................ 2 Lbs. / 3.5 Lbs.

MFR: M2 Antenna Systems, Inc.
