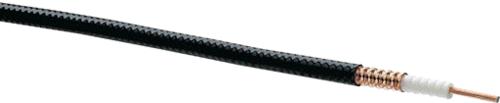

LDF2-50 CommScope® / Andrew HELIAX® 3/8" Low Density Foam Coaxial Cable
Sold by the foot - Minimum order 5 feet
Construction Materials
Dielectric Type: Low Density Foam Dielectric
Dielectric Material: Polyethylene Foam
Jacket Color: Black
Jacket Material: Polyethelyne
Outer Conductor Material: Corrugated Copper
Inner Conductor Material:Copper-Clad Aluminum Wire
Dimensions
Nominal Size: 3/8 in
Cable Weight: 0.08 lb/ft | 0.12 kg/m
Diameter Over Dielectric 8.636 mm | 0.340 in
Diameter Over Jacket 11.176 mm | 0.440 in
Inner Conductor OD: 3.0480 mm | 0.1200 in
Outer Conductor OD: 9.652 mm | 0.380 in
Electrical Specifications
Cable Impedance: 50 ohm ±1 ohm
Capacitance: 23.0 pF/ft | 75.5 pF/m
dc Resistance, Inner Conductor 1.060 ohms/kft | 3.478 ohms/km
dc Resistance, Outer Conductor 0.870 ohms/kft | 2.854 ohms/km
dc Test Voltage: 4000 V
Inductance: 0.190 μH/m | 0.058 μH/ft
Insulation Resistance: 100000 Mohms•km
Jacket Spark Test Voltage (rms): 5000 V
Operating Frequency Band: 1 – 13000 MHz
Peak Power: 15.6 kW
Pulse Reflection: 0.5%
Velocity: 88%
| Frequency MHz | Attenuation dB/100 ft. | Attenuation dB/100 m | Average Power, kW |
|---|---|---|---|
| 30 | 0.557 | 1.83 | 5.75 |
| 50 | 0.724 | 2.38 | 4.42 |
| 150 | 1.28 | 4.21 | 2.49 |
| 200 | 1.50 | 4.91 | 2.14 |
| 894 | 3.38 | 11.1 | 0.947 |
| 1500 | 4.54 | 14.9 | 0.705 |
| 2300 | 5.83 | 19.1 | 0.549 |
All HELIAX coaxial cables are jacketed for direct burial or
for corrosive environmental conditions. Standard jacketing
material is weather-resistant polyethylene suitable for use
in extreme climates.
