245173 Andrew 3M™ Cold Shrink™ Kit for 1/2 in through 3/8 in cable to 1/2 in through 3/8 in cable, Andrew

245173 Andrew 3M™ Cold Shrink™ Kit for 1/2 in through 3/8 in cable to 1/2 in through 3/8 in cable, Andrew

Be the first to review this product

In Stock
$22.95
  • Buy 6 for $21.95 each and save 5%
  • Buy 12 for $20.95 each and save 9%
OR

Quick Overview

245173 Andrew 3M™ Cold Shrink Kit for 1/2"- 3/8" cable to 1/2"- 3/8" cable

Details

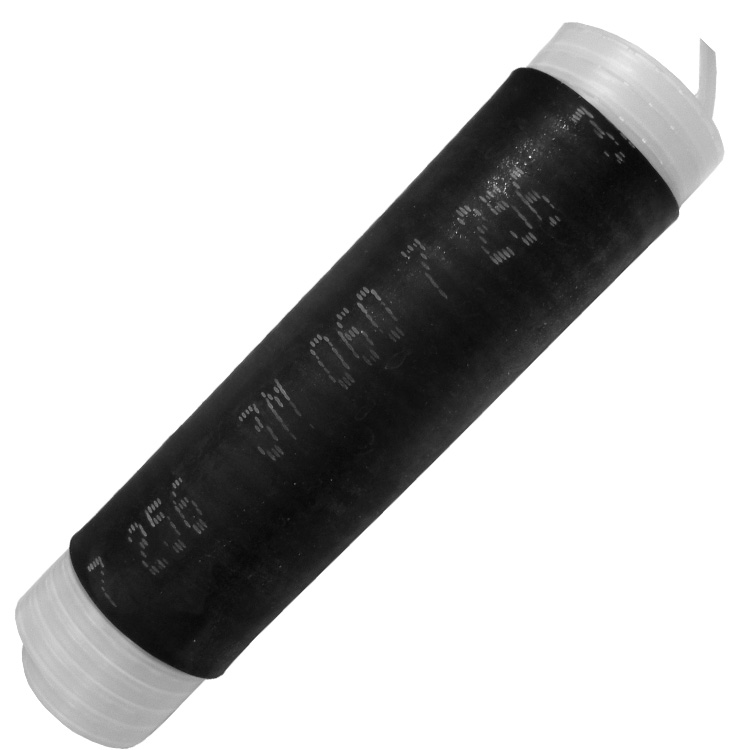

Andrew 3M™ Cold Shrink™ Kit for 1/2 in through 3/8 in cable to 1/2 in through 3/8 in cable

Very easy and fast way to weatherproof any connection.  Simply position the Cold shrink over

the connection you want to weatherproof and pull the rip-cord.  The Cold Shrink will compress

to form a weatherproof seal.  Quick & Easy.



Dimensions
Nominal Size   1/2 in   |   3/8 in
Cable Diameter for Seal, maximum   21.34 mm   |   0.84 in
Cable Diameter for Seal, minimum   7.37 mm   |   0.29 in
Inner Diameter   57.15 mm   |   2.25 in
Length   174.63 mm   |   6.88 in
Width   60.96 mm   |   2.40 in

General Specifications
Application   Provides additional moisture seal for cable connections
Applications per Kit   One 1/2 in–3/8 in to 1/2 in–3/8 in
Color   Black
Includes   One EPDM rubber tube   |   One sealing foam strip
Material Type   EPDM rubber
Package Quantity   1

Mechanical Specifications
UV Resistance Test Method   UV condensation reference ASTM-G-53, light source UVA 340 fluorescent lamp
UV Resistance, minimum with no degradation   ≥1000 hours
Weather Resistance Test Method   04AS00-03.6.0   |   MIL-STD-1344A, Method 1002

Packed Dimensions
Height   30.0 cm   |   11.8 in
Length   7.6 cm   |   3.0 in
Shipping Weight   0.14 kg   |   0.30 lb
Width   7.6 cm   |   3.0 in
