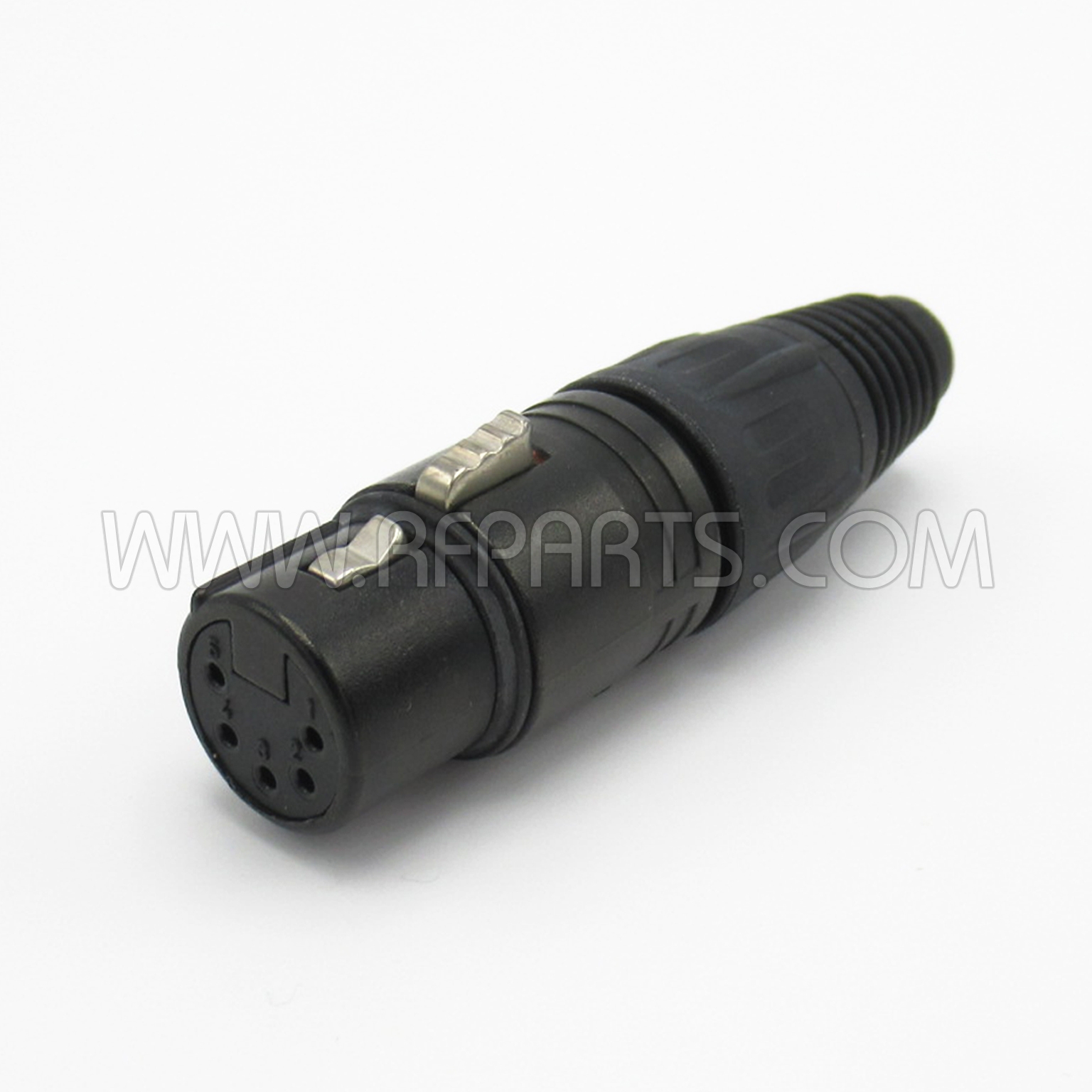

NC5FX-B Neutrik 5 Pole Female XLR Cable Connector with Black Metal Housing and Gold Contacts.

Roll over image to zoom
$7.91
In Stock
OR

The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.



  • Boot Polyurethan

  • Contact plating 0.2 µm Au hard alloy over 2 µm Ni

  • Contacts Brass (CuZn39Pb3)


MFR: Neutrik
SKU: NC5FX-B


Be the first to review this product


Details

NC5FX-B Neutrik 5 Pole Female XLR Cable Connector with Black Metal Housing and Gold Contacts.

The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

  • Capacitance between contacts ≤ 7 pF
  • Contact resistance ≤ 3 mΩ
  • Dielectric strength 1,5 kVdc
  • Insulation resistance > 10 GΩ (initial)
  • Rated current per contact 7,5 A
  • Rated voltage < 50 V
  • Cable O.D. 3.5 - 8.0 mm
  • Insertion force ≤ 20 N
  • Withdrawal force ≤ 20 N
  • Lifetime > 1000 mating cycles
  • Wiresize max. 1.0 mm² Wiresize max. 18 AWG
  • Wiring Solder contacts
  • Locking device Latch lock
  • Boot Polyurethan
  • Contact plating 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts Brass (CuZn39Pb3)
  • Insert Polyamide (PA66)
  • Locking element St3K32 (latch) / Ck 67 (spring)
  • Shell Zinc diecast (ZnAl4Cu1)
  • Shell plating Black chromium
  • Strain relief Polyacetal (POM)

MFR: Neutrik

Additional Information

Featured Product No
Made in the USA No
GTIN No
ISBN No
NATO Stock Number No
Manufacturer Part Number No
Manufacturer No
Condition New
NOS No
Call For Price No
Manufacturer Name Neutrik
