CX531M Tohtsu Coax Relay SPDT 12vdc with UHF Connector
- Used in Beko Amplifiers, HLV1950
- Connector: UHF FEMALE
MFR: Tohtsu
Made in Japan
| VOLTAGE |
| Pull in: |
9.0Vdc-16.5Vdc(12Vdc Nominal) |
| Drop out: |
1.5Vdc Min. |
| Current: |
160mA@12Vdc 20°C |
| Coil Resistance |
75 Ohms. 10% 20°C |
|
| MECHANICAL |
| Contact Arrangement: |
SPDT |
| Operational Temperature: |
-50°C to 70 °C |
| Weighting: |
Approx. 20gs. |
| Mounting: |
Two Screws |
| Cable Connections: |
1 M (UHF) Type female connector; Directly connect cables. |
|
| ELECTRICAL CHARACTERISTICS |
| Frequency (MHz) | VSWR (Max) | Isolation -dB[min] | Ins. Loss -dB[max] | Input (W) |
|---|
| 50 |
1.01 |
65 |
0.15 |
200 |
| 150 |
1.02 |
65 |
0.15 |
200 |
| 500 |
1.05 |
40 |
0.2 |
150 |
|
|
| SWITCHING TIME |
| Pull in: |
20ms typical |
| Drop out: |
15ms typical |
| Life Expectancy: |
1,000,000 Operation Min. |
|
| COIL CHARACTERISTICS |
| Nominal Voltage: |
12Vdc/24Vdc |
| Voltage Range: |
9Vdc-15.0Vdc/
18Vdc-25.5Vdc |
| Coil Resistance Ohms: |
75/300 |
| Mounting: |
- |
|
| SCHEMATIC |
 |
|

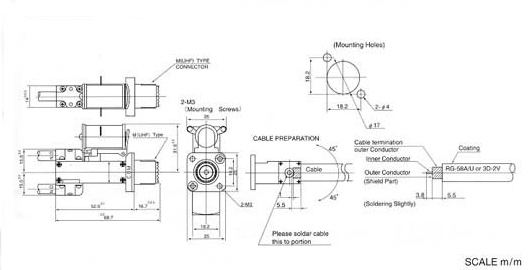

| DIMENSIONS |
 |
|

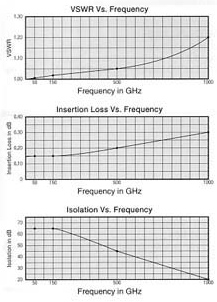

| TYPICAL OPERATING CURVES |
 |
|
