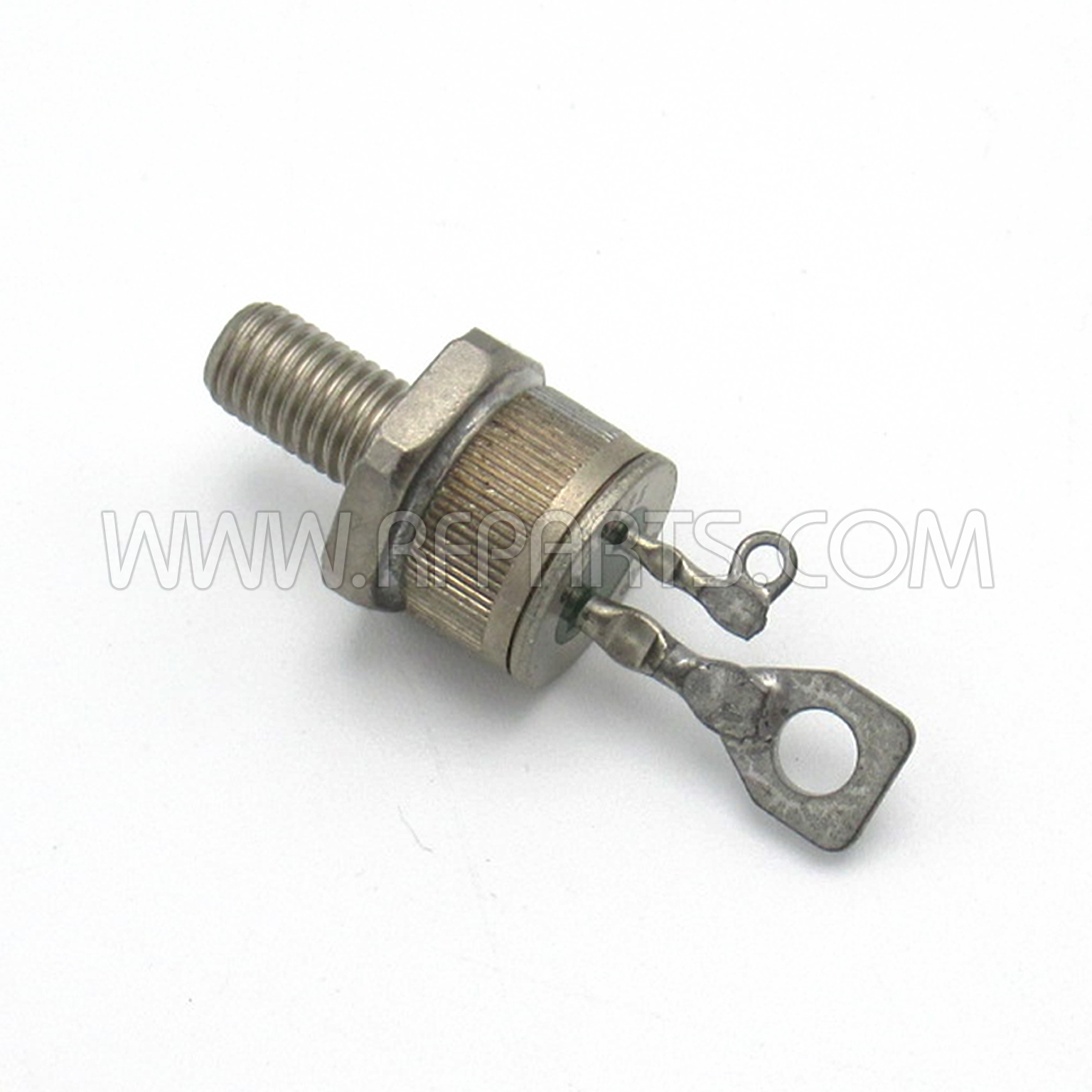

2N685 Motorola Silicon Controlled Rectifiers (NOS)
In Stock
$11.91
- Critical Rate of Rise of Off-state Voltage-Min: 30.0 V/us
- DC Gate Trigger Current-Max: 40.0 mA
- DC Gate Trigger Voltage-Max: 2.0 V
- Holding Current-Max: 50.0 mA
- Number of Terminals: 2
- RMS On-state Current-Max: 25.0 A
- Sub-Category: Silicon Controlled Rectifiers
- Terminal Form: SOLDER LUG
New Old Stock * No longer available for export
MFR: Motorola
SKU 2N685-MOT
Details
2N685 Motorola Silicon Controlled Rectifiers (NOS)
- Trigger Device Type: SCR
- Case Connection: ANODE
- Configuration: SINGLE
- Critical Rate of Rise of Off-state Voltage-Min: 30.0 V/us
- DC Gate Trigger Current-Max: 40.0 mA
- DC Gate Trigger Voltage-Max: 2.0 V
- Holding Current-Max: 50.0 mA
- JESD-30 CodeO-MUPM-D2
- Leakage Current-Max: 6.0 mA
- Non-Repetitive Pk On-state Cur: 150.0 A
- Number of Elements: 1.0
- Number of Terminals: 2
- Operating Temperature-Min: -65.0Cel
- Operating Temperature-Max: 125.0 Cel
- Package Body Material: METAL
- Package Shape: ROUND
- Package Style: POST/STUD MOUNT
- Repetitive Peak Off-state Leakage Current-Max: 10.0µA
- Repetitive Peak Off-state Voltage: 200.0 V
- Repetitive Peak Reverse Voltage: 200.0 V
- RMS On-state Current-Max: 25.0 A
- Sub-Category: Silicon Controlled Rectifiers
- Surface Mount: NO
- Terminal Form: SOLDER LUG
- Terminal Position: UPPER
New Old Stock * No longer available for export
MFR: Motorola
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Motorola |
