EL7.5-200S-333 Energy Labs Vacuum Variable Capacitor 10-205pf 7.5kv Peak (Pull)


Roll over image to zoom
  • Buy 3 for $180.41 each and save 6%
$189.91
In Stock
OR

Capacitance: 10-205 pf
Voltage Rating: 7.5 KV
Current Rating: 57 Amps RMS
Max Length 7.25 in
Max Diameter 3.05 in
Weight 3.75 lbs


Used clean * No longer available for export
MFR: Energy Laboratories Inc.
SKU: EL7.5-200S-333

Made in the USA

Be the first to review this product


Details

EL7.5-200S-333 Energy Labs Vacuum Variable Capacitor 10-205pf 7.5kv Peak (Pull)

This variable capacitor is identical to Jennings CHV1-200-7.

Capacitance: 10-205 pf
Voltage Rating: 7.5 KV
Current Rating: 57 Amps RMS
Max Length 7.25 in
Max Diameter 3.05 in
Weight 3.75 lbs

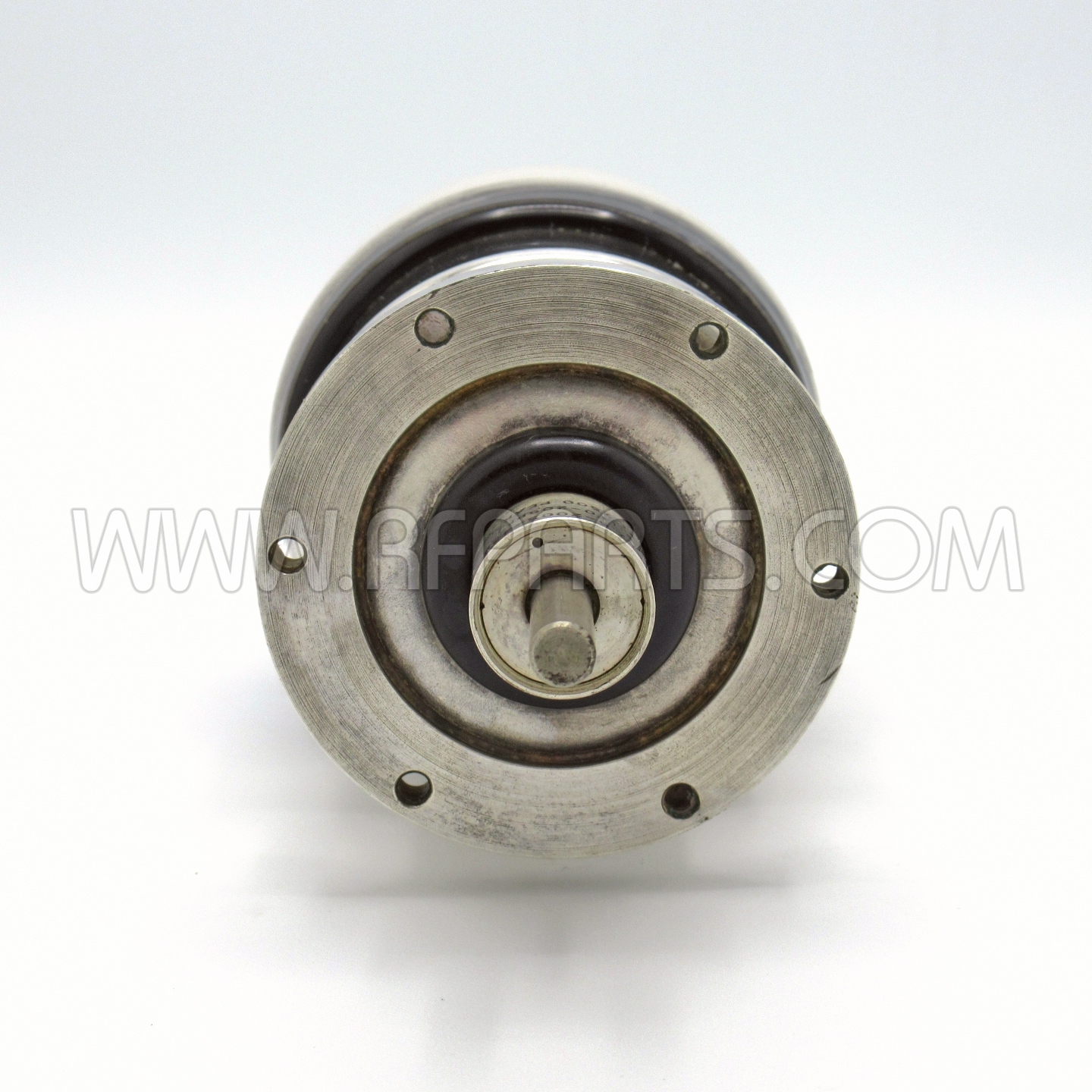

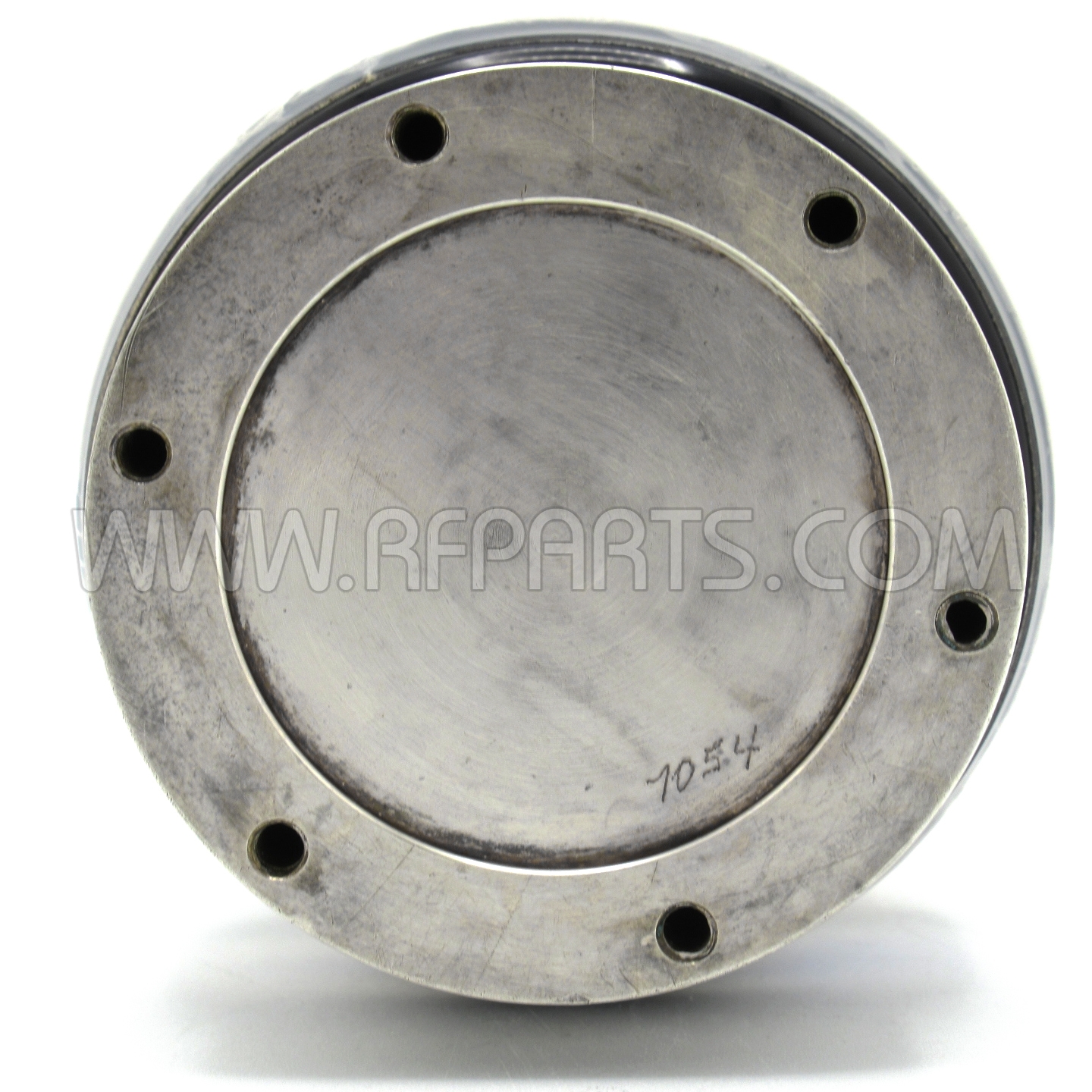

Mounting: Permanently attached flanges with 6 drilled and tapped holes for front and rear end mounting
Shaft Round - 1/4"
Clean Used * Removed from equipment * checked and guaranteed.
No longer available for export
MFR: Energy Laboratories inc.

Made in the USA

Additional Information

Featured Product No
Made in the USA Yes
GTIN N/A
ISBN N/A
NATO Stock Number N/A
Manufacturer Part Number N/A
Manufacturer No
NOS No
Call For Price No
Manufacturer Name Energy Labs
