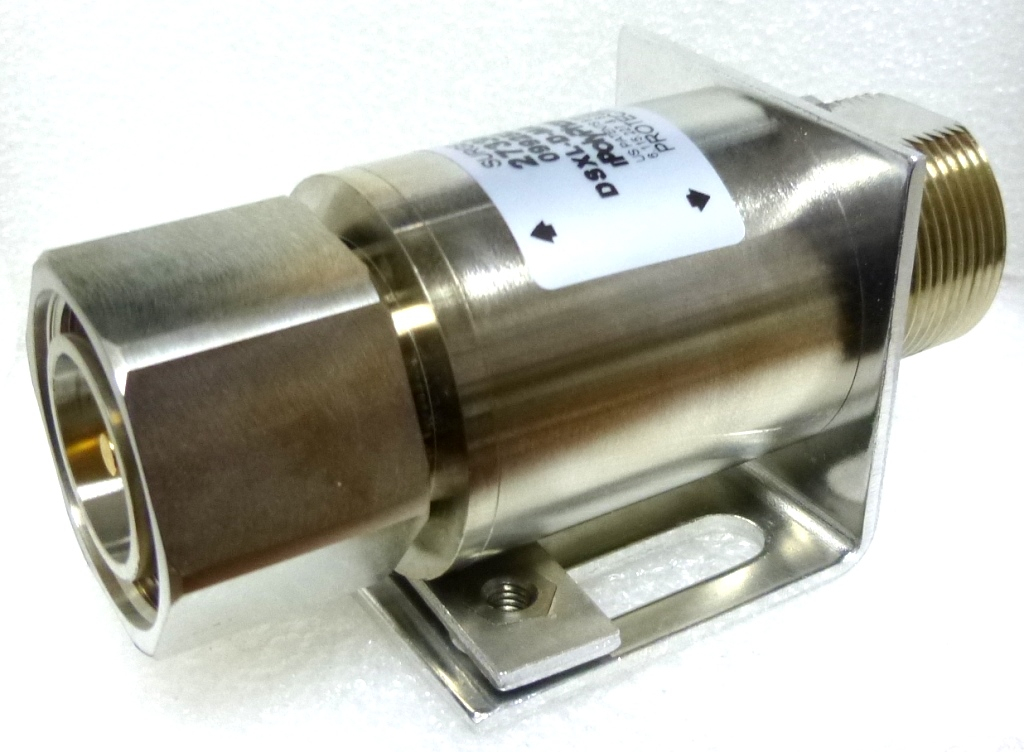

DSXL-D-MA-BFS EMP Surge Filter, 700-2.5 GHz, 7/16 DIN Male/Female Bulkhead, Polyphaser

Roll over image to zoom
  • Buy 6 for $56.50 each and save 6%
$59.95
In Stock
OR

DSXL-D-MA-BFS  EMP Surge Filter, 700-2.5 GHz, 7/16 DIN Male/Female Bulkhead w/Mounting Flange, MFR: Polyphaser


Be the first to review this product


Details

DSXL-D-MA-BFS  EMP Surge Filter, 800-2.3 GHz, 7/16 DIN Male/Female Bulkhead w/Mounting Flange

The DSXL-D-MA-BF is a broadband protector that covers the frequency range of 700-2500 MHz. This protector has 7/16 DIN connectors and exhibits advanced RF characteristics that make it the best protector for CDMA, UMTS, GSM and other mobile communication technologies.

  • Compact, integrated connector housing
  • Industry's lowest throughput energy
  • Industry's best RF performance
  • dc blocked
  • Small footprint
  • Multi-strike capability
  • No gas tubes
  • Fully weatherized
  • Maintenance free

 DSXL-D-MA-BFS SPECIFICATIONS:

RF Power (Watts):  500-1000
Impedance:
  50Ω
Surge:
30kA EC 1000-4-5 8/20µs waveform
Frequency Range: 0.8 GHz to 2.3GHz @1.1:1
     0.7GHz to 2.5GHz @ 1.2:1
VSWR: 1.1 to 1 over frequency range
Insertion Loss: <0.1 dB -
Continuous Power:
500W @ 85oC; 750W @40oC; 1kW @ 20oC
Throughput Energy: < 0.5000 µj for 3kA @ 8/20µs waveform
Let-Through Voltage: <±3V for 3kA @ 8 20µs waveform
Temperature: -40oC to +85oC Storage Operating
Relative Humidity: to 95%
Vibration: 1G up to 100Hz

MFR: Polyphaser

Limited Quantity Available, New Old Stock
