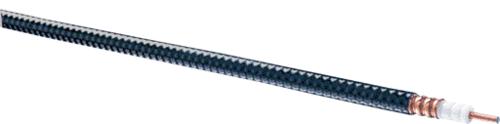

LDF1RK-50 - 1/4" Fire Retardant Heliax Coax Cable

LDF1RK-50, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 1/4 in, black, nonhalogenated, fire retardant jacket

NOTE:  Special order cable.  Normal delivery is 3-4 weeks ARO.  Minimum order requirement is 500 foot.

Mechanical Specifications

Pressurizable No

Weight lb/ft (kg/m) 0.06 (0.09)

Tensile Strength lb (kg) 200.00 (91.00)

Flat PlateCrush Strength lb/in (kg/mm) 80.00 (1.40)

Minimum Bending Radius in (mm) 3.00 (76.00)

Bending Moment lb-ft (N-m) 0.98 (1.30)

Number of Bends minimum (typical) 15.00 (30.00)

Electrical Specifications

Cable Impedance (ohms) 50.00

Maximum Frequency (GHz) 15.80

Velocity percentage 86.00

Peak Power Rating (kW) 12.10

DC Resistance Inner ohms/1000ft (ohms/1000m) 1.57 (5.15)

DC Resistance Outer ohms/1000ft (ohms/1000m) 1.22 (4.00)

Cable Test Voltage (VDC) 2200.00

Jacket Spark volts (RMS) 5000.00

Capacitance pF/ft (pF/m) 23.40 (76.80)

Inductance microH/ft (microH/m) 0.06 (0.20)

Insulation Resistance (Meg-Ohms) 100000.00

Construction Materials

Dielectric Type Low Density Foam Dielectric

Dielectric Material Polyethylene Foam

Jacket Color Black

Jacket Description Polyethelyne

Jacket Material Polyethelyne

Outer Conductor Material Corrugated Copper

Inner Conductor Material Copper-Clad Aluminum Wire

Dimensions

Diameter Over Jacket in (mm) 0.34 (8.60)

Outer Conductor Outside Diameter in (mm) 0.30 (7.60)

Outer Conductor Inside Diameter in (mm) 0.29 (7.40)

Inner Conductor Outside Diameter in (mm) 0.10 (2.50)
