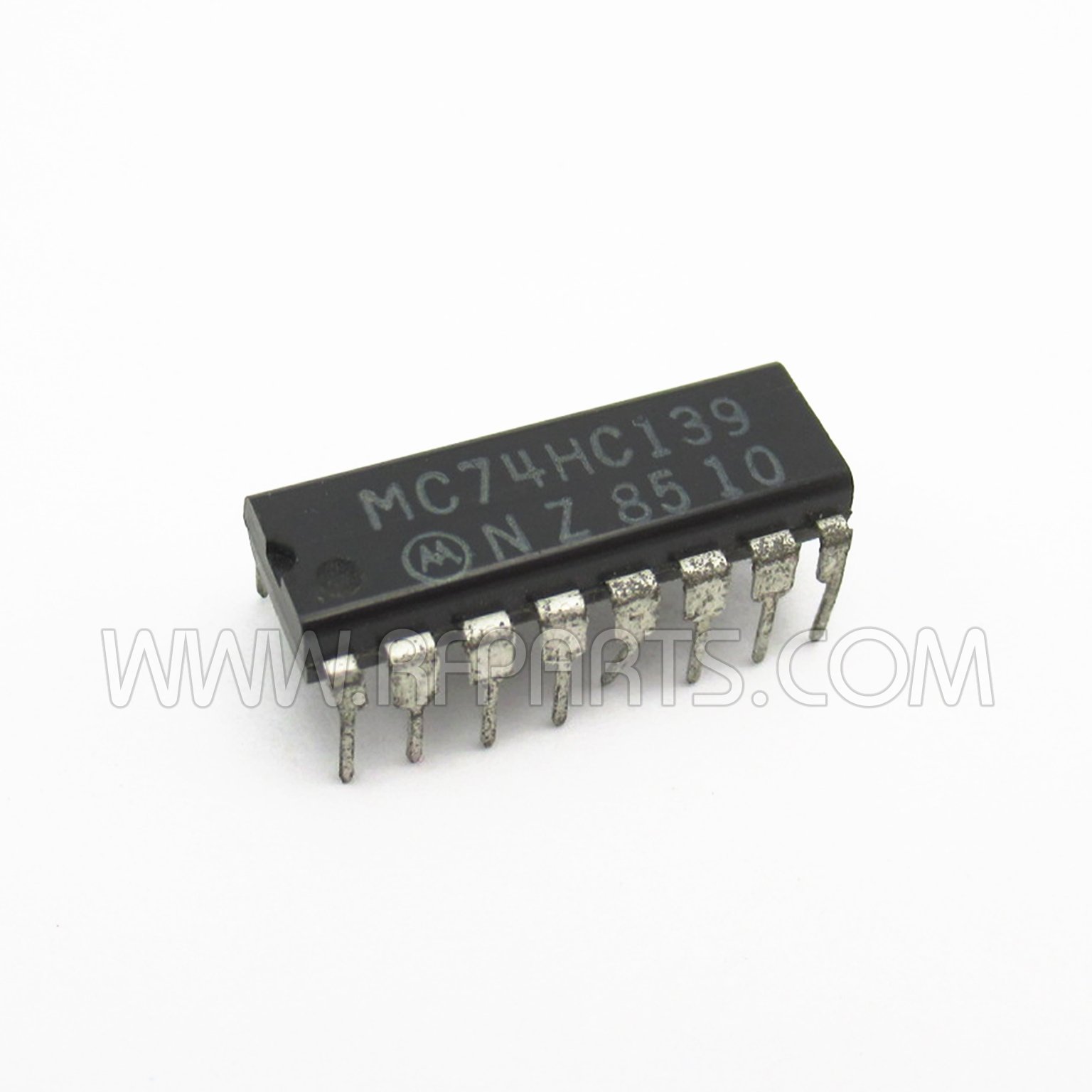

MC74HC139 Motorola Dual 1-of-4 Decoder / Demultiplexer (NOS)
In Stock
- Output Drive Capability: 10 LSTTL Loads
- Outputs Directly Interface to CMOS, NMOS and TTL
- Operating Voltage Range: 2.0 to 6.0 V
New Old Stock * No longer available for export
MFR: Motorola
SKU: MC74HC139
Details
MC74HC139 Motorola Dual 1-of-4 Decoder / Demultiplexer (NOS)
High-performance silicon-gate CMOS. Identical in pinout to the LS139. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
This device consists of two independent 1–of–4 decoders, each of which decodes a two–bit Address to one–of–four active–low outputs. Active–low
Selects are provided to facilitate the demultiplexing and cascading functions. The demultiplexing function is accomplished by using the Address inputs to
select the desired device output, and utilizing the Select as a data input.
- Output Drive Capability: 10 LSTTL Loads
- Outputs Directly Interface to CMOS, NMOS and TTL
- Operating Voltage Range: 2.0 to 6.0 V
- Low Input Current: 1.0 µA
- High Noise Immunity Characteristic of CMOS Devices
- In Compliance with the Requirements Defined by JEDEC Standard No. 7A
- Chip Complexity: 100 FETs or 25 Equivalent Gates
New Old Stock * No longer available for export
MFR: Motorola
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Motorola |
