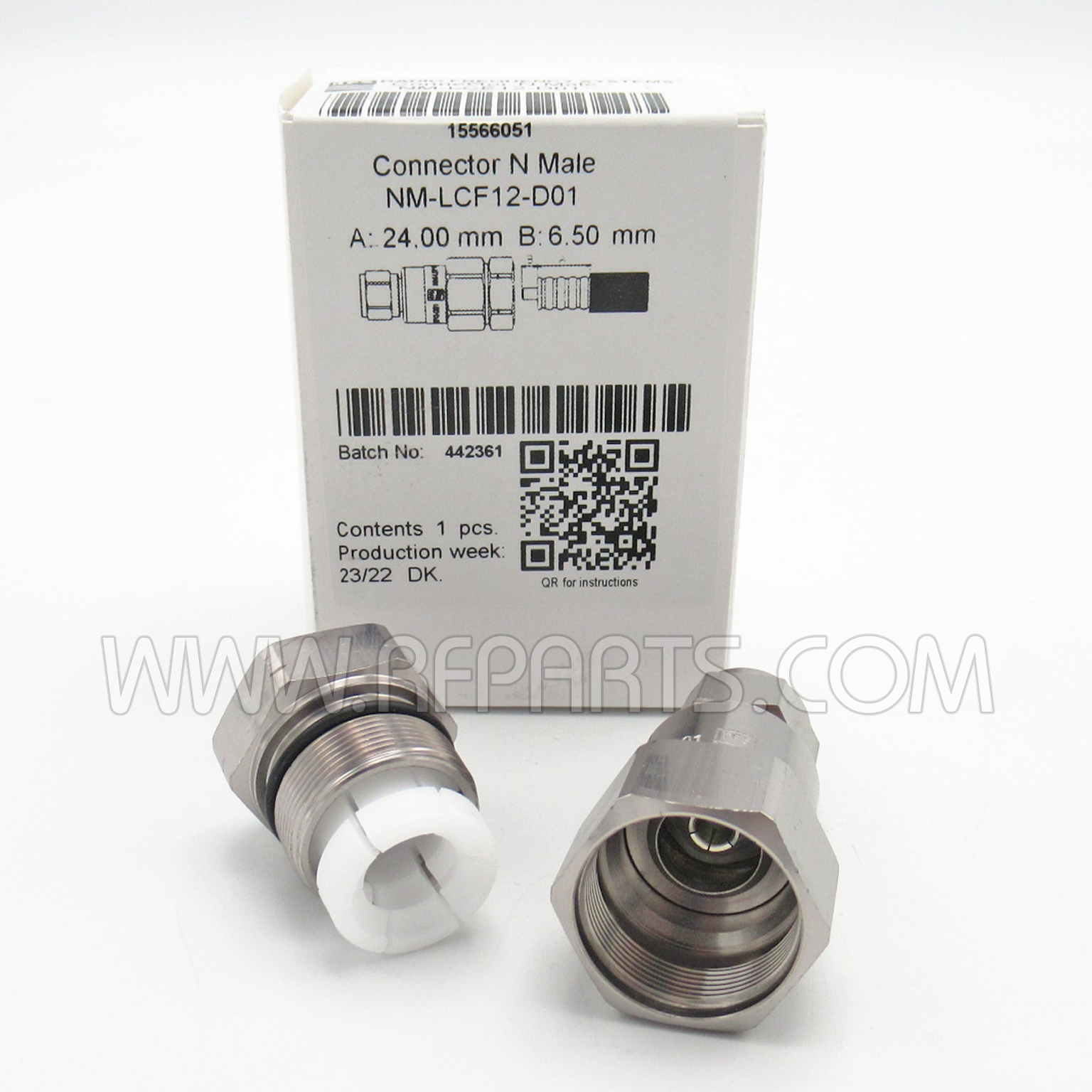

NM-LCF12-D01 RFS Type-N Male OMNI FIT Premium Straight Connector for LCF12-50

Roll over image to zoom
$26.91
In Stock
OR

  • Nominal Impedance: 50 Ohms

  • Maximum Frequency: 3.7 GHz

  • Plating Outer/Inner: NiTin/Silver

  • Inner Contact Attachment: Basket


MFR: Radio Frequency Systems, Inc.


Be the first to review this product


Details

NM-LCF12-D01 RFS Type-N Male OMNI FIT Premium Straight Connector for 1/2 inch Cable

OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.

GENERAL SPECIFICATIONS
Transmission Line Type Coaxial Cable
Cable Size 1/2
Cable Type Foam Dielectric
Model Series LCF12-50 Series, ICA12-50 Series, RCF12-50 Series, DragonSkin
Connector Interface N
Connector Type

OMNI FIT™ PREMIUM Straight

Sealing Method

Polymer claw + 360° Compression

Gender Male
ELECTRICAL SPECIFICATIONS
Nominal Impedance, ohms Ohm 50
3rd Order IM Product @ 2x20 Watts dBc

-156 ; typical -162

Maximum Frequency GHz 3.7
VSWR, Return Loss VSWR (dB) 0 < f ≤ 1.0 GHz: 1.02 (40)
1.0 < f ≤ 2.7 GHz: 1.03 (36.6)
2.7 < f ≤ 3.7 GHz: 1.06 (30.7)
MECHANICAL SPECIFICATIONS
Plating Outer/Inner NiTin/Silver
Length mm (in) 64.05 (2.52)
Outer Diameter mm (in) 29 (1.14)
Inner Contact Attachment Basket
Outer Contact Attachment 360° clamping
ACCESSORIES
Wrench size front mm (in) 18
Wrench size rear mm (in) 26
Trimming Tool TRIM-SET-L12-D01
TRIM-LCF12-D01-A
TESTING AND ENVIRONMENTAL
Waterproof Level IP68

MFR:Radio Frequency Systems, Inc.

Additional Information

Featured Product No
Made in the USA No
Manufacturer RFS / Cablewave
NOS No
Call For Price No
Manufacturer Name Radio Frequency Systems, Inc.
