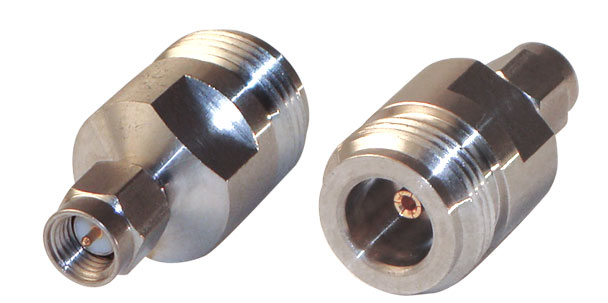

P2RSA-3752 Between Series Precision Adapter,SMA Male to Type-N Fem, RFP2

Roll over image to zoom
  • Buy 10 for $23.50 each and save 2%
$23.95
In Stock
OR

P2RSA-3752 Between Series Precision Adapter, SMA Male to Type-N Female, DC-18 GHz, VSWR less than 1.2:1, Passivated Stainless Steel, MFR: RFP2 (RF Industries)


Be the first to review this product


Details

P2RSA-3752 Between Series Precision Adapter,SMA Male to Type-N Female, DC-18 GHz, RFP2

Precision test grade adapters feature passivated stainless steel construction for long life in environments where repetitive attachment to test equipment is required. All adapters are designed for outstanding electrical performance with low loss and low VSWR to 18 GHz. Test grade adapters are rugged and versatile for use in lab or field applications.

Electrical:

  • Velocity of Propagation .........................................70%
  • Impedance .................................................................. 50 +/- 1 ohm
  • Delay............................................................................ 103 ps @ 18 GHz
  •  VSWR......................................................................... 1.2:1 max @ 18 GHz
  •  Insertion Loss..............................................................-.2 dB max @ 18 GHz

Mechanical:

  • Mating...............................................................¼ - 36 UNS Thread
  •                                                                                  5/8-24 UNEF Thread
  • Interface...................................................................MIL-STD-348
  • Mating Cycles..........................................................500 min

Materials and finish:

  • Body and Shell ........................................Passivated stainless steel
  • Insulator ...................................................PTFE, epoxy captivated
  • Contact ....................................................Gold plated BeCu
  • Pin ................................................................ Gold plated Brass

MFR: RFP2 (RF Industries)



You may also be interested in the following product(s)

Additional Information

Featured Product N/A
Made in the USA N/A
Manufacturer RFP2 (RF Industries)
