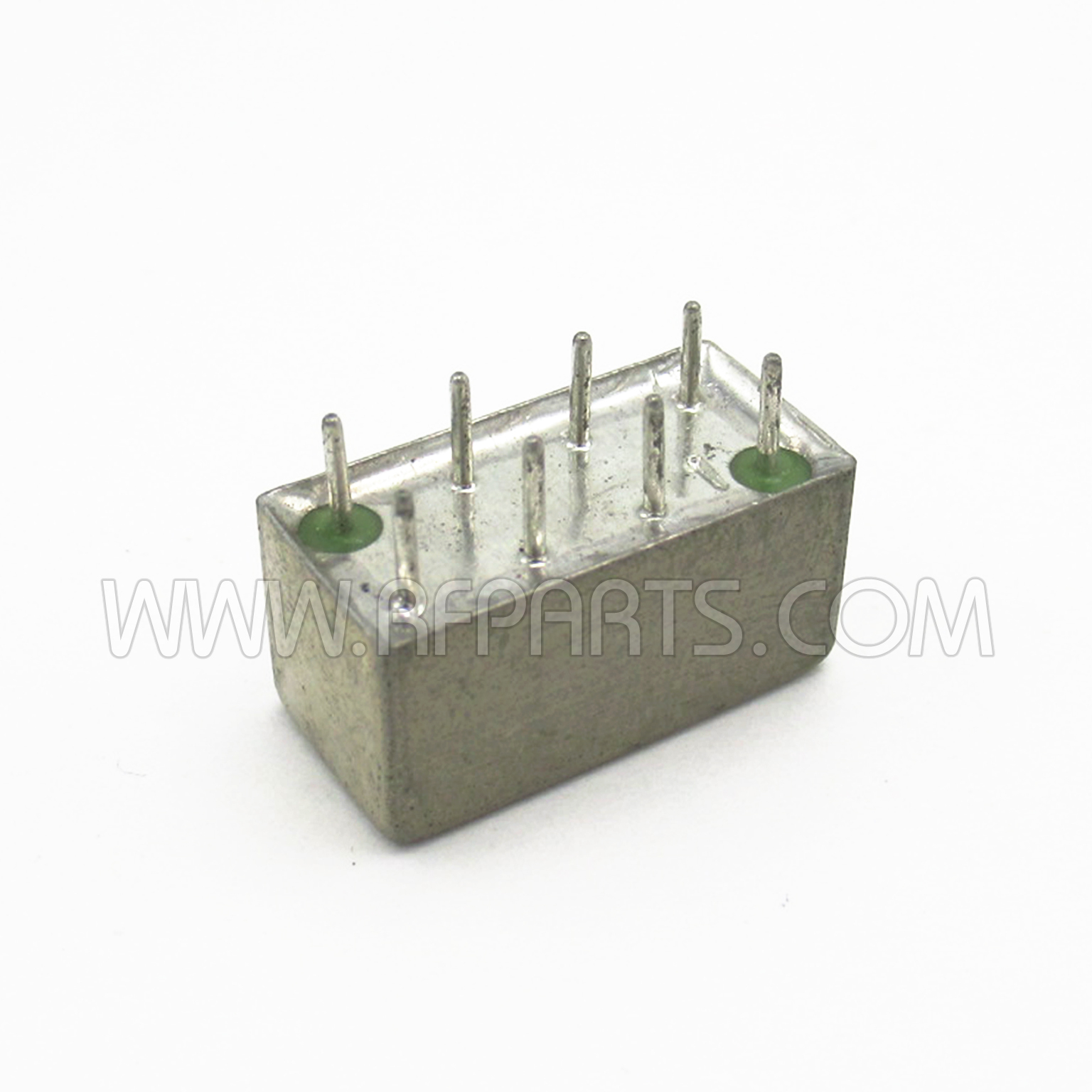

PHP-500 Mini-Circuits Plug-In High Pass Filter DC-500 to 1600 MHz 50 Ohm (NOS)

Roll over image to zoom
$24.90
In Stock
OR

Used for Lab Use,Transmitters / Receivers, Military / Hi-Rel applications.



  • RF Power Input 0.5W max.

  • Rugged welded case, hermetic


New Old Stock
MFR: Mini-Circuits
SKU: PHP500


Be the first to review this product


Details

PHP-500 Mini-Circuits Plug-In High Pass Filter DC-500 to 1600 MHz 50 Ohm (NOS)

Used for Lab Use,Transmitters / Receivers, Military / Hi-Rel applications.

  • RF Power Input 0.5W max.
  • Rugged welded case, hermetic
  • Operating Temperature -55°C to 100°C
  • Storage Temperature -55°C to 100°C
  • Passband: 500-1600MHz
  • Stopband: 260 MHz (loss > 40dB / 260-340 Mhz (loss > 20dB)
  • fco Nominal: 452 MHz
  • VSWR: Stopband 17 / Passband 1.5

New Old Stock
MFR: Mini-Circuits

Additional Information

Featured Product No
Made in the USA No
GTIN No
ISBN No
NATO Stock Number No
Manufacturer Part Number No
Manufacturer No
Condition New
NOS No
Call For Price No
Manufacturer Name Mini-Circuits

Product Attachments

PHP-500 pdf 159.66 KB Download
