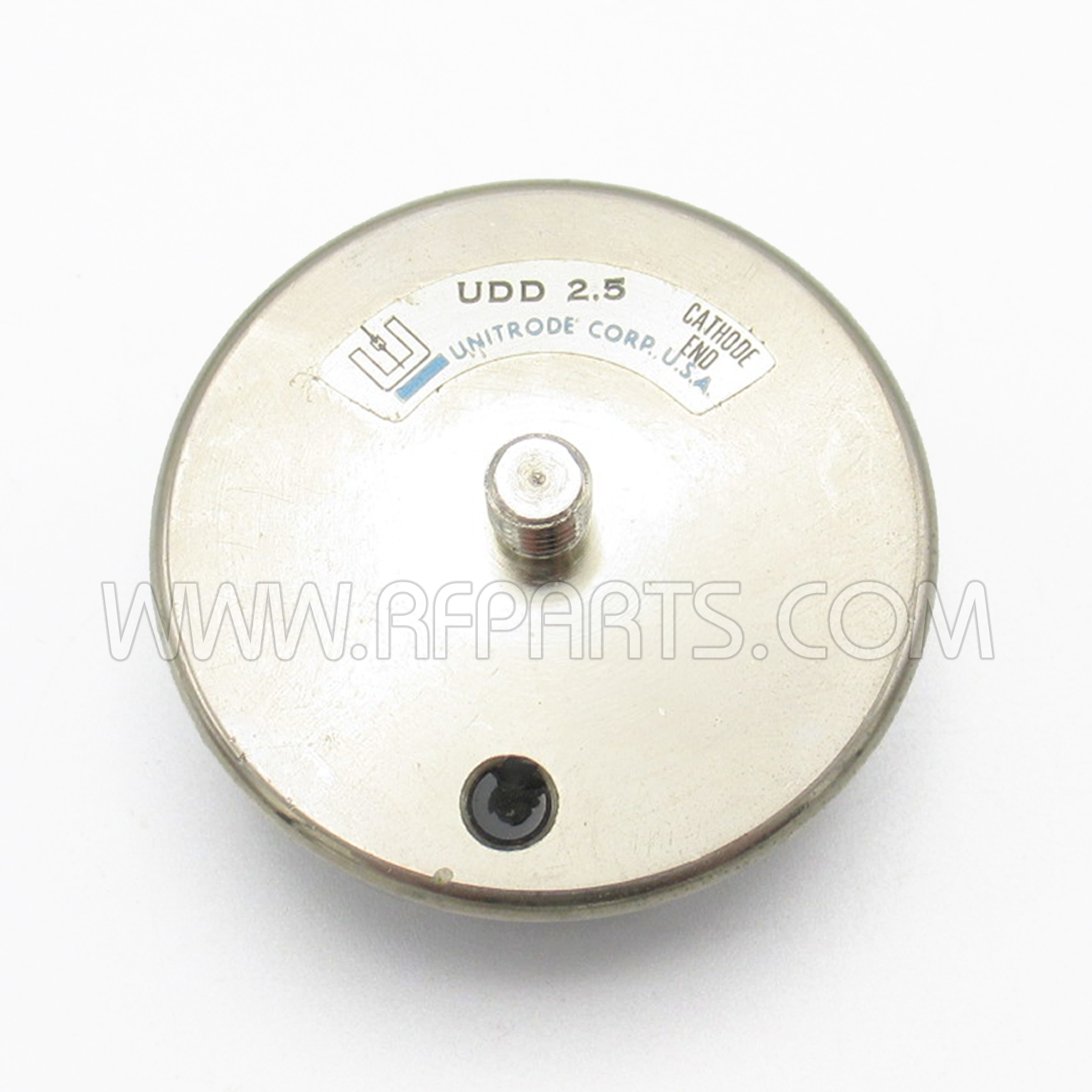

UDD-2.5 Unitrode High Voltage Fast Recovery Doorbell Rectifier 2.5Kv (Pull)


Roll over image to zoom
$39.91
In Stock
OR

  • PIV: 2.5Kv

  • Stackable to 600Kv

  • Maximum Forward Voltage Drop: 6v @ 1.20A

  • Maximum Leakage current @ PIV: 5mA


Used * No longer available for export
MFR: Unitrode Corporation
SKU: UDD-2.5-P


Data Sheet

Made in the USA

Be the first to review this product


Details

UDD-2.5 Unitrode High Voltage Fast Recovery Doorbell Rectifier 2.5Kv (Pull)

This series of high-voltage, high-current stacks that incorporate a unique modular design makes it ideally suited for high power applications such as in radar systems as charger, hold-off and clipper diodes.

  • PIV: 2.5Kv
  • Stackable to 600Kv
  • Maximum Forward Voltage Drop: 6v @ 1.20A
  • Maximum Leakage current @ PIV: 5mA
  • Maximum Average DC Output Current Tc=75°C Air: 2.25 Amps
  • Non-Repetitive Sinusoidal Surge (8.3ms) Tc=100°C: 80 Amps

Used * No longer available for export
MFR: Unitrode Corporation

Data Sheet

Made in the USA

Additional Information

Featured Product No
Made in the USA Yes
Manufacturer No
NOS No
Call For Price No
Manufacturer Name Unitrode Corporation
