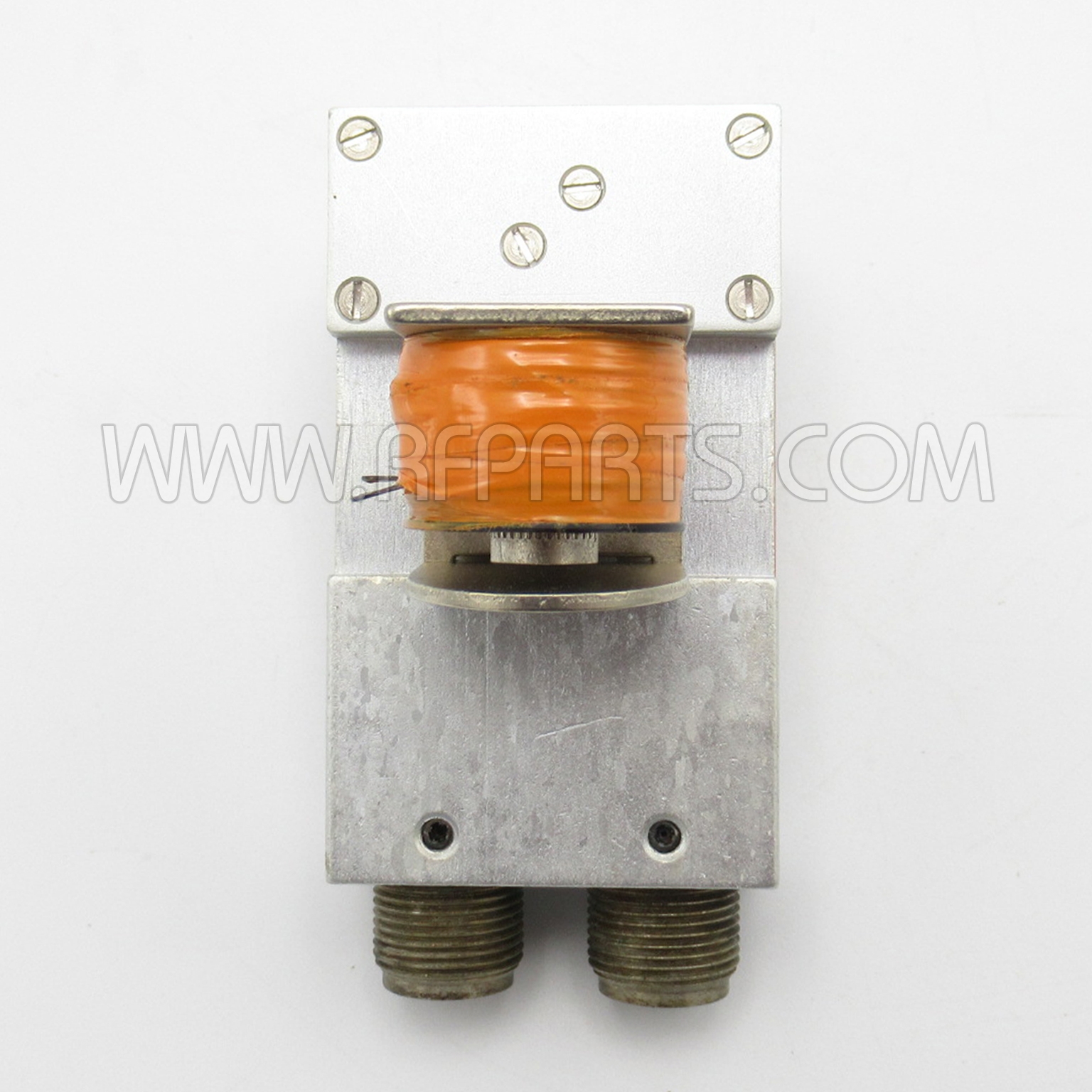

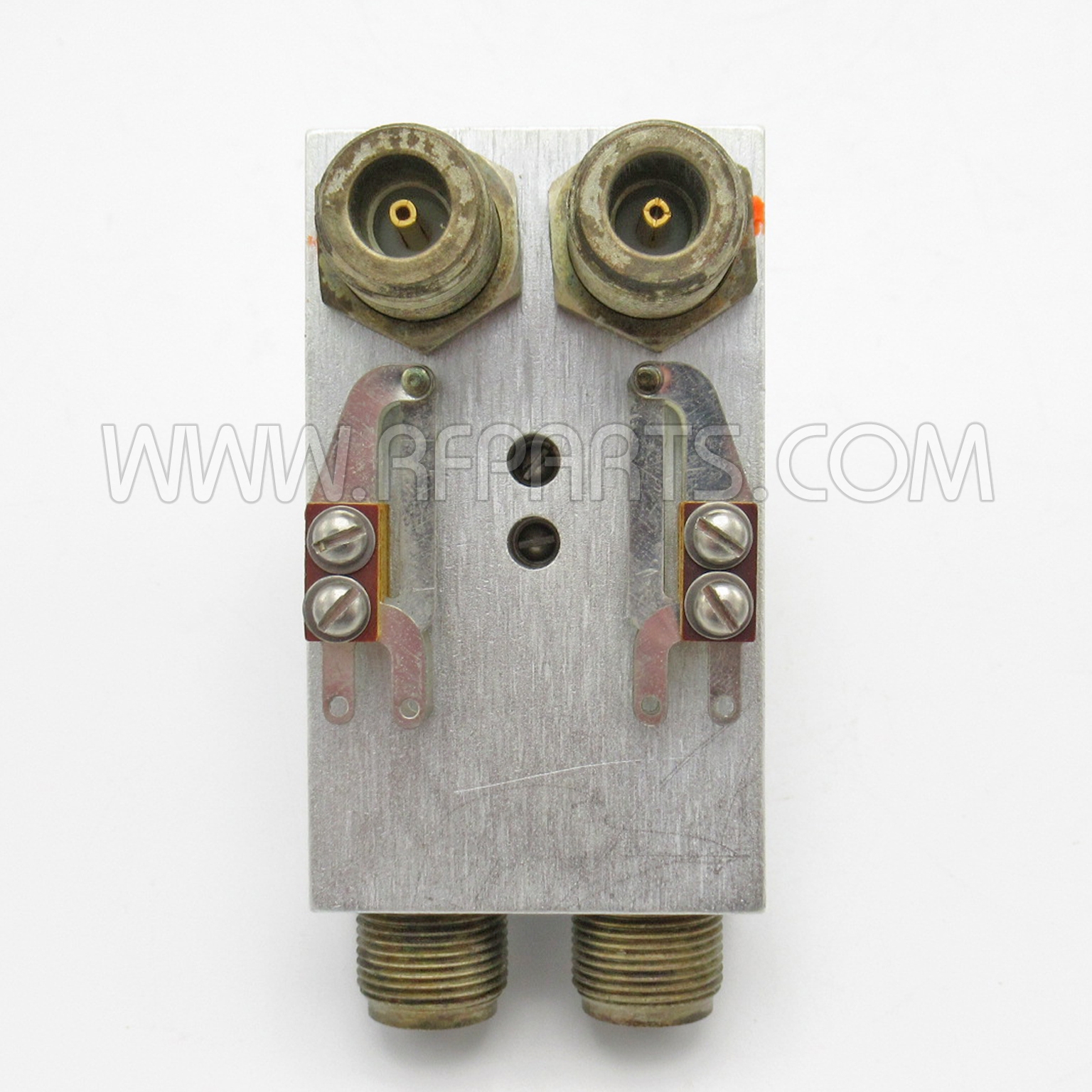

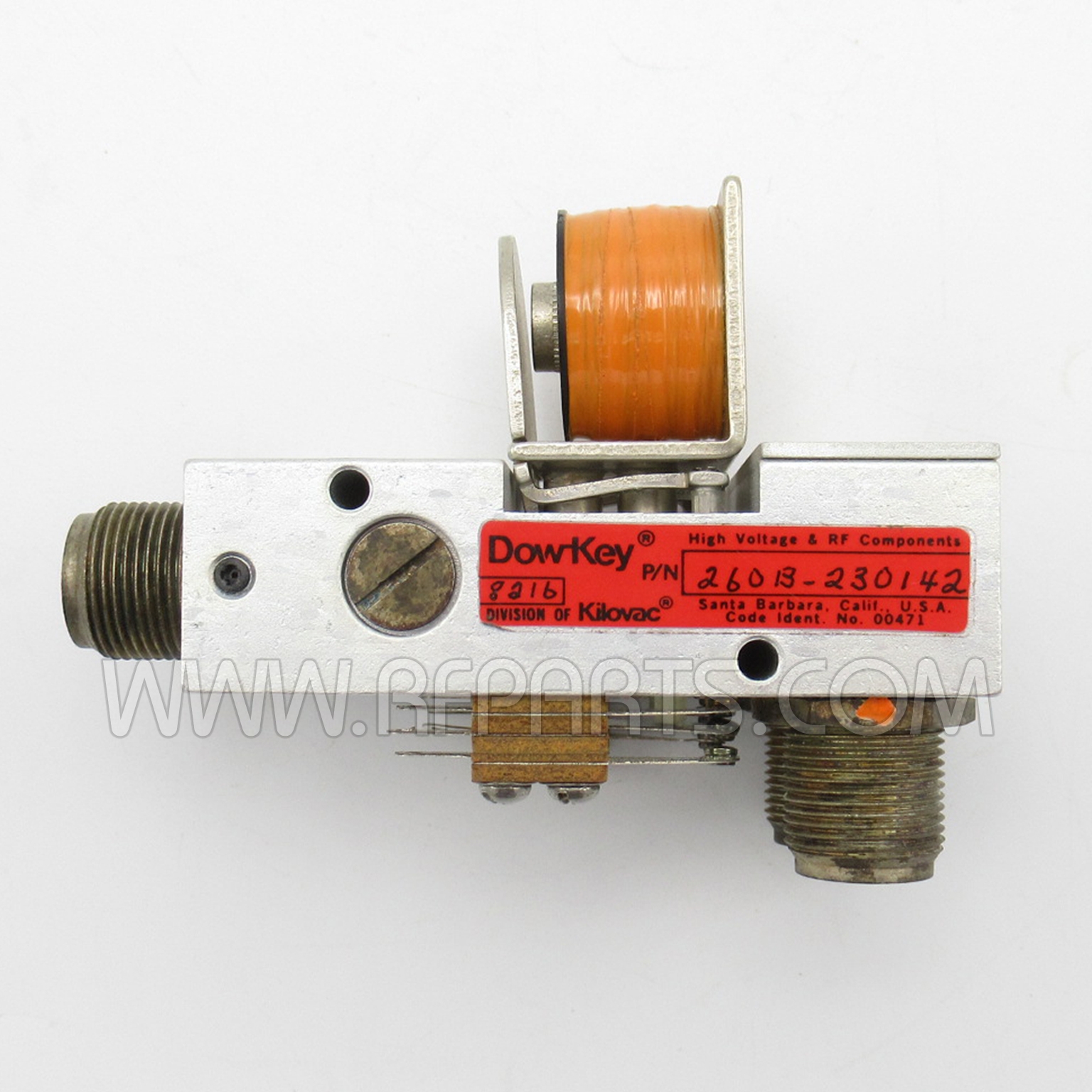

260B-230142 Dow-Key 26.5vdc DPDT Type-N By-Pass Switch (NOS)
The 260B is identical in construction to the standard 260 Series DPDT switch, except that there is an internal connection
between the N/C contacts, leaving only four connectors. The 260B Series is widely used to insert or by-pass a circuit element (such as an
amplifier or filter) in a transmission path between two normally connected elements.
- Voltage: 26.5vdc
- Coil Current: 26.5Vdc -110 mA
- Operate Time: 25 mS Maximum
- Operating Temperature: 0°C (32°F) to +65°C (149°F)
New Old Stock * No longer available for export
MFR: Dow-Key Microwave
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | No |
| Condition | New |
| NOS | Yes |
| Call For Price | No |
| Manufacturer Name | Dow-Key MIcrowave |
