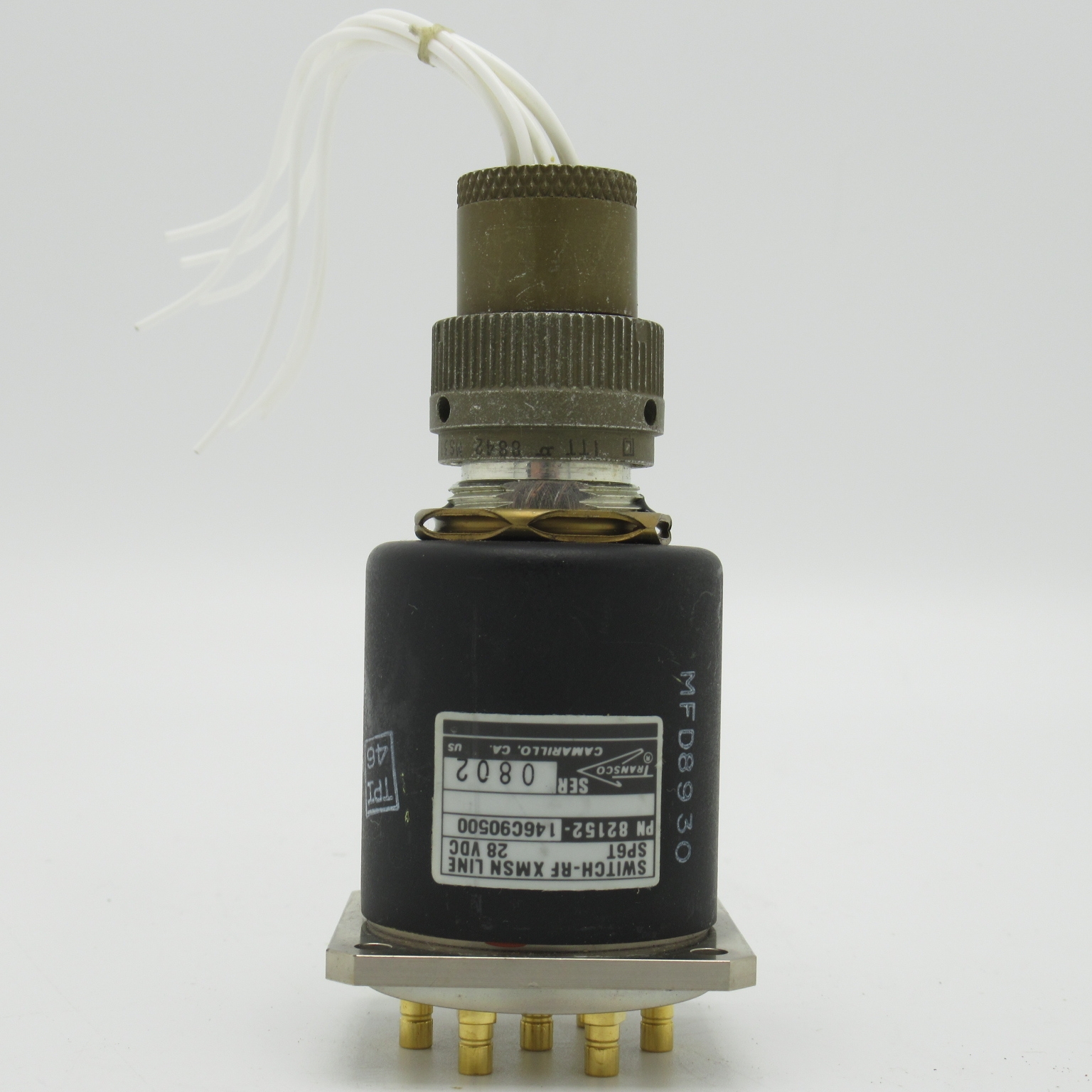

82152-146C90500 Transco Coax Relay, SP6T 28vdc MMCX (Pull)


Roll over image to zoom
$139.95
In Stock
OR

82152-146C90500 Transco Coax Relay, SP6T, 28vdc MMCX. Comes with MS3116E12-8S 8 Pin Connector for the electrical connection along with 7 PTFE wires of approximately 6 inches pre-installed.
Used Excellent Condition * No longer available for export
MFR: Transco
SKU: 82152-146C90500

Made in the USA

Be the first to review this product


Details

Transco RF Coaxial Switch PN 82152-146C90500

Manufacturer:

Transco

MFR Part Number:

82152-146C90500

Impedance:

50 Ohm

Number of Coils / Contacts:

1 / 6

Coil Voltage:

28 VDC

Connector Type:

MMCX with Electrical Mating Connector MS3116E12-8S



Important Dimensions

Max Length

2.43 in / 61.72 mm

Max Width

1.75 in / 44.45 mm

Weight

4.65 oz. / 131.00 g



Mounting

4 drilled holes through mounting flange

Switch comes with MS3116E12-8S 8 Pin Connector for the electrical connection along with 7 PTFE wires of approximately 6 inches pre-installed.

Made in the USA

Additional Information

Featured Product No
Made in the USA Yes
Manufacturer No
NOS No
Call For Price No
Manufacturer Name Transco
