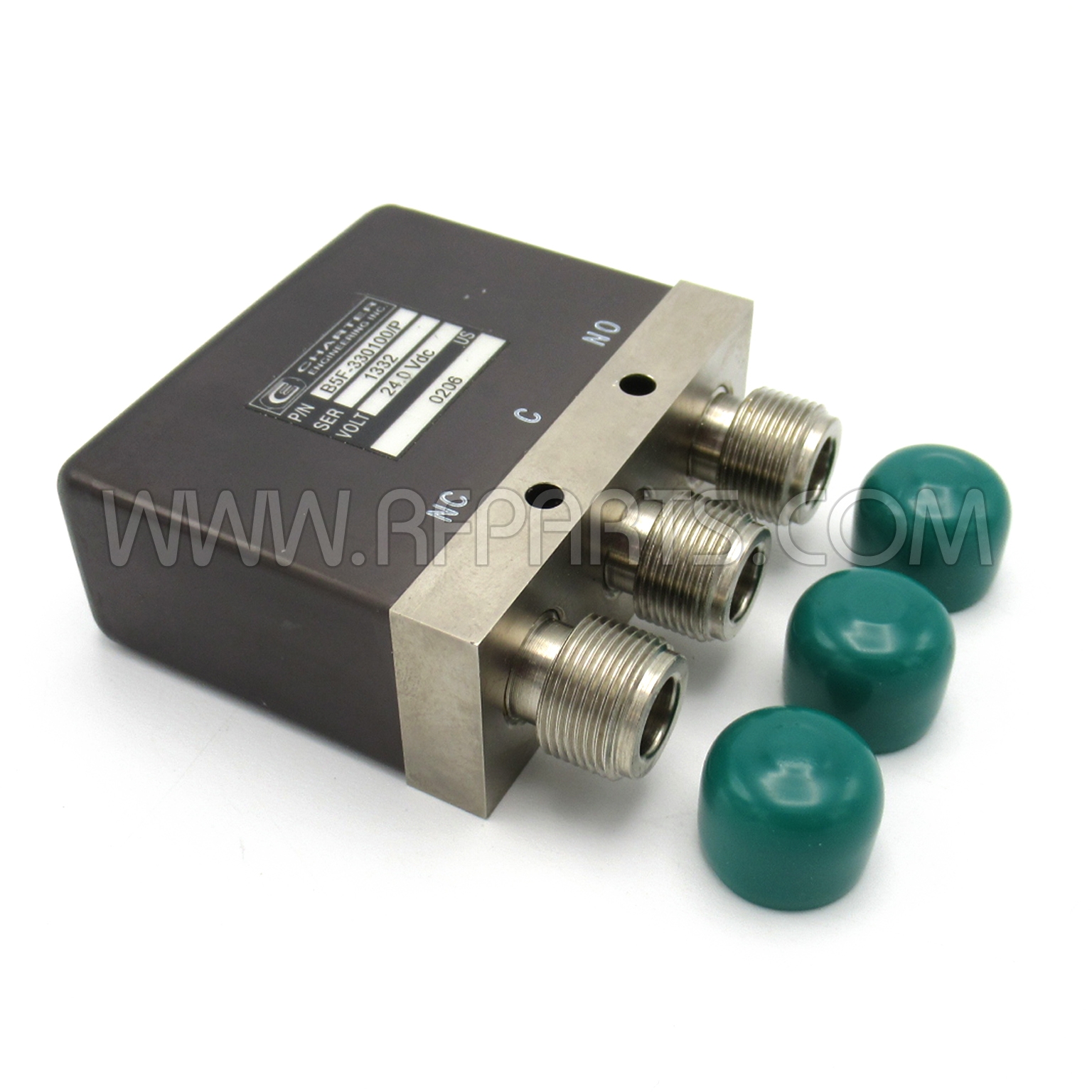

B5F-330100/P Charter Engineering SPDT Coaxial Relay 24VDC (Pull)

Roll over image to zoom
$139.91
In Stock
OR

Switch Series: B5 - SPDT Type N
Actuator: Failsafe
Frequency Bandwidth: DC - 12.4 GHz
Voltage: 20 - 30 VDC (24.0 V nominal)
Common Polarity: Not required
Power Interface: Solder Terminal (Top of Switch)
Options: No other options required
Intermodulation: Standard Switch
Special Options: High Temp, High Power Connector


These relays were pulled from equipment, have been tested and meet specifications.
Clean Used * No longer available for export
MFR: Charter Engineering
SKU: B5F-330100/P-P


Be the first to review this product


Details

B5F-330100/P Charter Engineering SPDT Coaxial Relay 24VDC (Pull)

Specifications:
Frequency Range: DC - 12.4 GHz
VSWR (Max.): 1.50:1
Insertion Loss (Max.): 0.50
Isolation (Min.): 60
Impedance: 50 Ohms
Mechanical:
Contact: Break before make
Actuator: Failsafe
Switching Speed: 20 mSEC Max.
Electrical:
Actuator Voltage: 24.0 VDC
Actuator Current: Contact CEI
Power Handling: 750 WCW @ 1.0 GHz (Opt. /P)
Environmental:
Operating Temperature: -40°C to 90°C
Sine Vibration: 30 G'S ms
Random Vibratoin: 20 G'S ms
Life: 1,000,000 cycles
Finish:
RF Cavity: Aluminum Electroless Nickel Plated per MIL-C-26074, Class 4
Enclosure: Aluminum, Black
Contact: Beryllium Copper, Gold Plated per MIL-G-45204
Connector Shell: Cres, Passivated Per QQ-P-35 or Brass, Electroless Nickel Plated per MIL-C-26074

These relays were pulled from equipment, have been tested and meet specifications.
Clean Used * No longer available for export
MFR: Charter Engineering

Additional Information

Featured Product No
Made in the USA No
Manufacturer No
NOS No
Call For Price No
Manufacturer Name Charter Engineering
