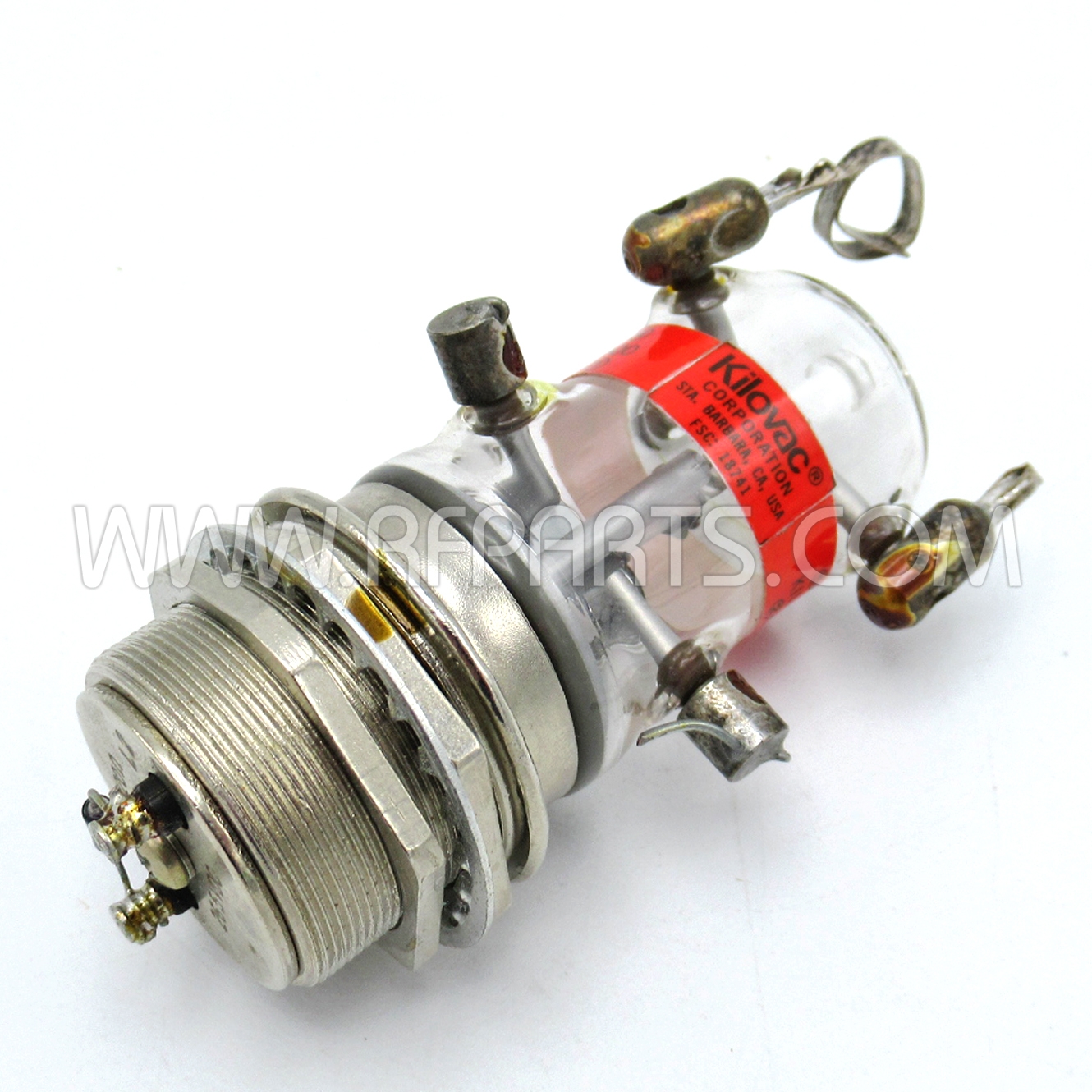

H-16/S1 Kilovac DPDT Vacuum Relay 12kV 26.5VDC 120Ω (Pull)

Roll over image to zoom
$1,495.91
In Stock
OR

Specifications: DPDT 12kV 26.5VDC 120 Ω.


Coil Data:
Nominal Volts DC 12 Vdc 26.5 Vdc 115 Vdc
Pickup, Max. 8 Vdc 16 Vdc 80 Vdc
Dropout .5-5 Vdc 1-10 Vdc 5-50 Vdc
Coil Resistance (±10%) 24 Ω 120 Ω 2000 Ω


Used * No longer available for export
Collins #: 410-0168-00
MRF: Kilovac Made in USA
SKU: H16/S1-P


Be the first to review this product


Details

H-16/S1 Kilovac DPDT Vacuum Relay 12kV 26.5VDC 120Ω (Pull)

Used * No Longer Available for Export
Collins #: 410-0168-00
MRF: Kilovac Made in USA

Specs:12kV 26.5VDC 120Ω

Contact Arrangement — DPDT
Contact Form — 2C
Test Voltage, DC or 60 Hz (Peak) —15 kV
Rated Operating Voltage (Peak) —DC or 60 Hz — 12 kV
2.5 MHz — 10 kV
16 MHz — 8 kV
32 MHz — 5 kV
Continuous Carry Current: Max. DC or 60 Hz — 30 A
2.5 MHz —10 A
16 MHz — 6 A
32 MHz — 4 A
Coil Hi-Pot (Vrms, 60 Hz):  500 A
Contact Capacitance:
Between Open Contacts — 1 pF
Open Contacts to Ground — 2.5 pF
Contact Resistance, Max. — 0.03 ohm
Operate Time, Max. — 20 ms
Release Time, Max. — 20 ms
Shock, 11ms, 1/2 Sine (Peak): 20 g
Vibration: Peak — 10 g (55 to 500 Hz)
Operating Ambient Temperature Range: -55°C to +125°C
Mechanical Life: (Operations x 106) — 500,000 cycles
Weight, Nominal — 170.1 g (6 oz.)

Additional Information

Featured Product No
Made in the USA No
Manufacturer No
NOS No
Call For Price No
Manufacturer Name Kilovac
