Details

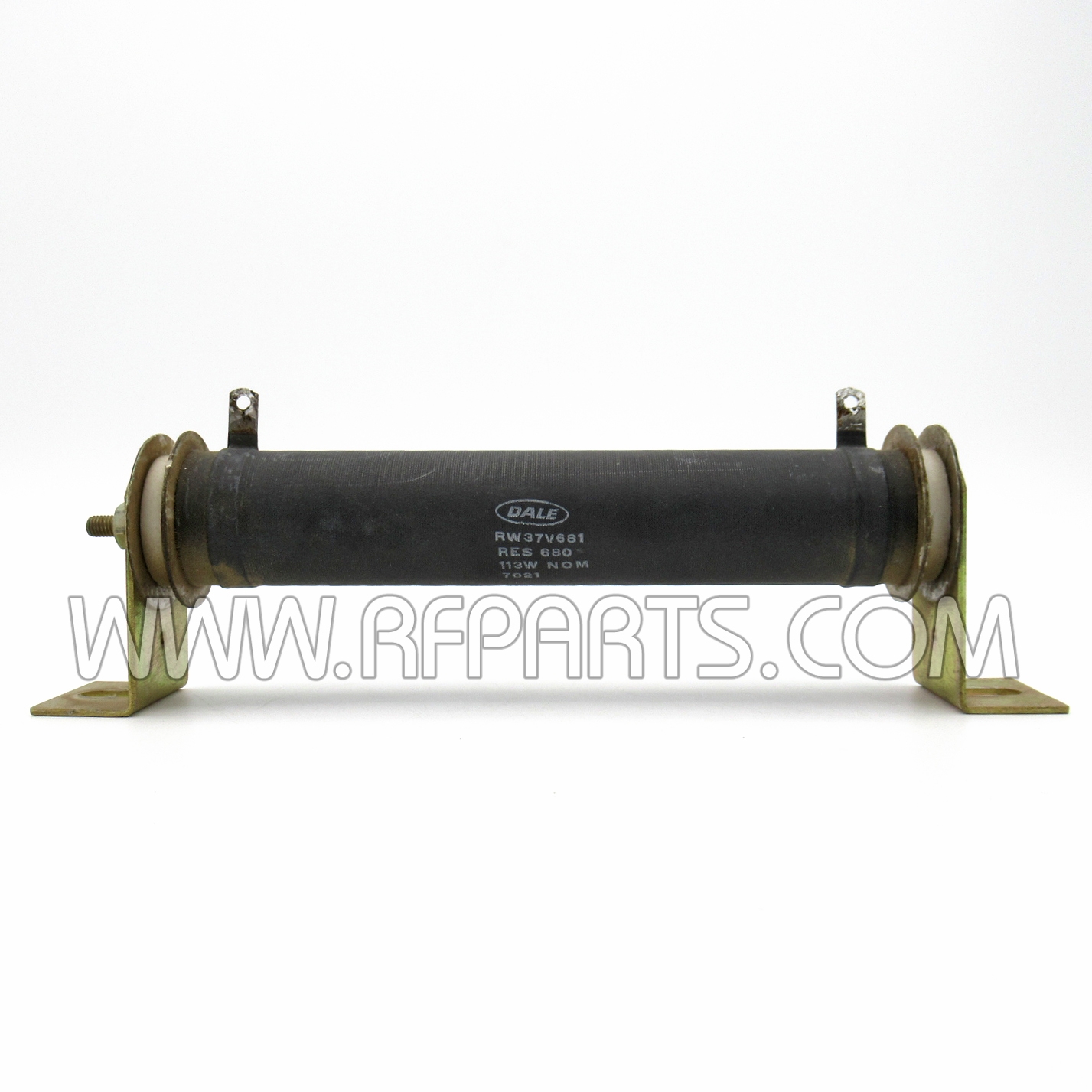

RW37V681 Dale Wire Wound Resistor 680 Ohms 113 Watts (Pull)
Technical Data | NSN 5905-00-878-8256
Electrical resistance: 680 ohms
Resistance tolerance in percent: -5.000 TO 5.000
Power dissipation rating in watts: 113.000
Ambient temp in deg celsius at full rated power: 25.0
Ambient temp in degrees Celsius at zero percent rated power: 350.0
Temp coefficient of resistance in ppm per degrees Celsius: -260.0/+260.0
Temp range of temp coefficient in degrees Celsius: -55.0 TO 350.0
Inclosure method: Encapsulated
Style designator: Radial terminal each end
Body diameter: 1.312 Inches nominal
Body length: 6.000 Inches nominal
Terminal type: Tab, solder lug
Terminal length: 0.563 Inches nominal
Terminal width: Between 0.172 inches and 0.328 inches
Test data document: 81349-MILR26/3 Specification
Used * No longer available for export
MFR: Dale
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | No |
| Condition | Used |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | No |
