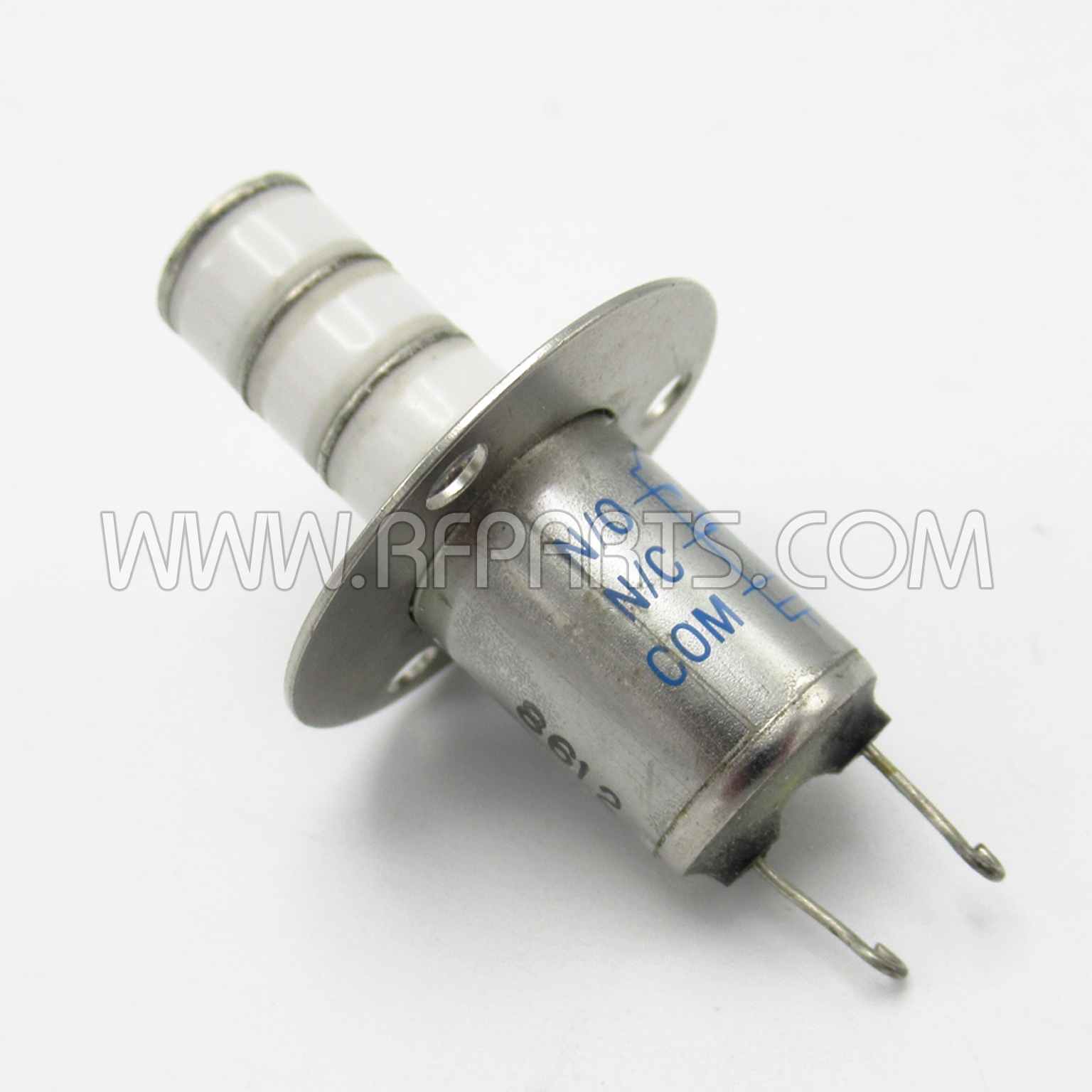

RF1D-26S Jennings Vacuum Relay SPDT 12kv 26.5vdc (NOS)


Roll over image to zoom
$159.91
In Stock
OR

New Old Stock * No longer available for export
MFR: KIlovac
SKU: RF1D-26S-NOS

Made in the USA

Be the first to review this product


Details

RF1D-26S Jennings Vacuum Relay SPDT 12kv 26.5vdc (NOS)

Rated Operating Voltage (kV Peak)
     DC or 60 Hz 2
     2.5 MHz 2
     16 MHz 2
     32 MHz 2
Continous Current, Carry (Amps, RMS)
     DC or 60 Hz 8
     2.5 MHz 6
     16 MHz  4
     32 MHz  2
Contact Capacitance (pF)
     Between Open Contacts 1.6
     Open Contacts to Ground 2.0
Contact Resistance (mΩ) 50
Operate Time (ms. Max.) 10
Release Time (ms. Max.) 10
Pull-in Voltage @ 25° C
     26.5 VDC Coil 16
     12 VDC Coil 8
Dropout Voltage @ -55 to 125° C
     26.5 VDC Coil 1-10
     12 VDC Coil 1-5
Coil Resistance (Ohms ± 10%)
     26.5 VDC Coil 920
     12 VDC Coil 205

New Old Stock * No longer available for export
MFR: KIlovac

Made in the USA

Additional Information

Featured Product No
Made in the USA Yes
Manufacturer Jennings
NOS No
Call For Price No
Manufacturer Name Jennings
