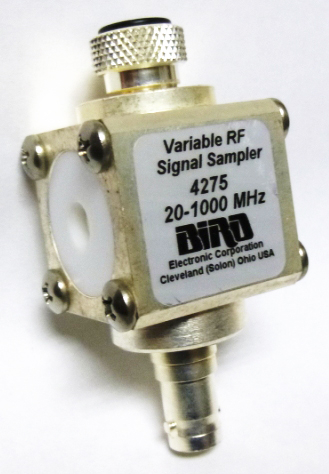

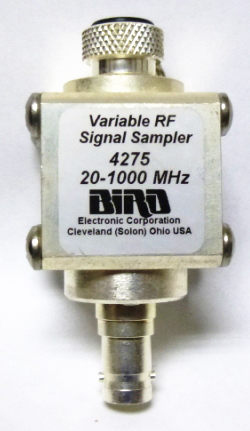

4275 Bird Variable RF Signal Sampler 20-1000 MHz 2kw No Connectors
4275 Series, Variable RF Signal Samplers cover the frequency band of 20-1000 MHz with an attenuation range of 35 to 80 dB down from main power. The 4275 signal samplers produces an un-rectified, non-directional sample at the BNC port that is adjustable. Once adjusted, the setting can be locked in place. The main power connectors are Bird® QC type.
- Impedance: 50 ohms nominal
- Coupling: Adjustable as shown within ±3dB
- Ambient Temperature Range: -40°C to +45°C
- Connectors: QC type as specified
- Nominal Size: 2 51/64" L x 2 7/8" W x 1 1/4" D
- Weight: 10 oz.
- Power Rating: 5 kW max 1 kW max
- Frequency Range: 1.5 - 35 MHz 20 - 1000 MHz
- Insertion VSWR: with N connectors 1.07 dB max. with N connectors 0.1 dB max.
MFR: Bird Electronic Corporation
Made in the USA
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | BIRD ELECTRONICS |
