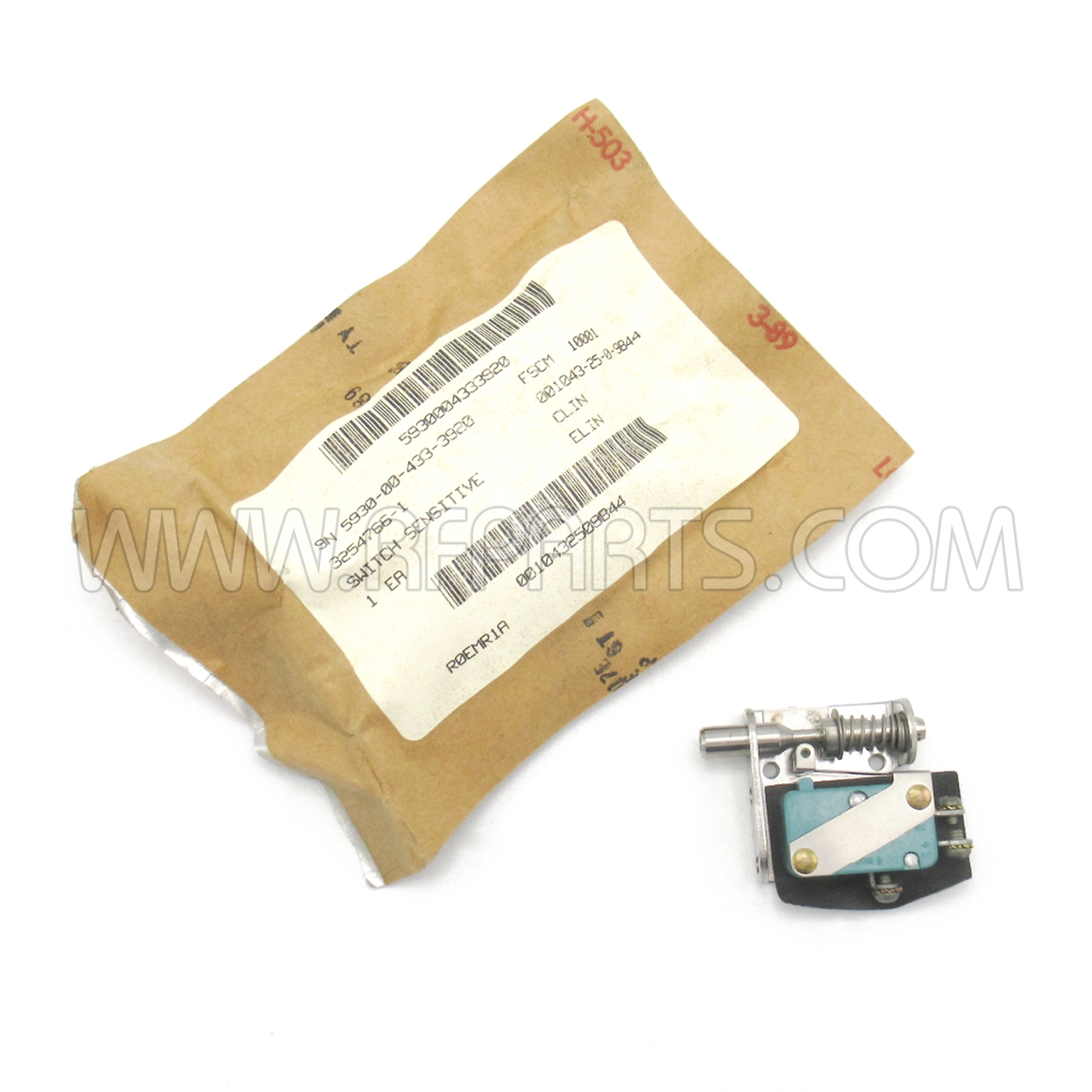

2AC60 Micro Switch Sensitive Switch (NOS/NIB)
The 2AC60 is a Sensitive Switch that was used by the U.S. Military.
- Actuator Height: 0.375 Inches Maximum
- Actuator Diameter: 0.245 Inches Minimum And 0.250 Inches Maximum
- Actuator Free Position Height: 0.375 Inches Maximum
- Actuator Movement: 0.172 Pretravel Inches Maximum And 0.078 Overtravel Inches Minimum And 0.078 Differential Inches Nominal
- Actuator Style: Round
- Body Height: 1.300 Inches Nominal
- Body Length: 1.660 Inches Maximum
- Body Style: Hole Mounted
- Body Width: 0.490 Inches Minimum And 0.550 Inches Maximum
- Center To Center Distance Between Mounting Facilities Parallel To Height: 0.495 Inches Minimum And 0.505 Inches Maximum
- Contact Load Current Rating At Maximum Rated Voltage: 5.000 Amperes Resistive Dc And 3.000 Amperes Inductive Dc And 5.000 Amperes Resistive Ac And 5.000 Amperes Inductive Ac
- Maximum Voltage Rating In Volts: 250.0 Ac And 28.0 Dc
- Mounting Method: Threaded Hole
- Nominal Thread Size: 0.138 Inches
- Nonpile-Up Contact Arrangement: 1 Pole, Double Throw, One Position Momentary Single Switch Unit
- Inclosure Type: Uninclosed
- Switch Actuating Force: 0.203 Inch-Ounces Minimum
- Switch Release Force: 0.125 Inch-Ounces Maximum
- Terminal Type And Quantity: 3 Screw
- Thread Quantity Per Inch: 32
- Thread Series Designator: Unc
New Old stock * New in Box * no longer available for export
MFR: Micro Switch for Honeywell
Made in the USA
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | Yes |
| Call For Price | No |
| Manufacturer Name | Micro Switch |
