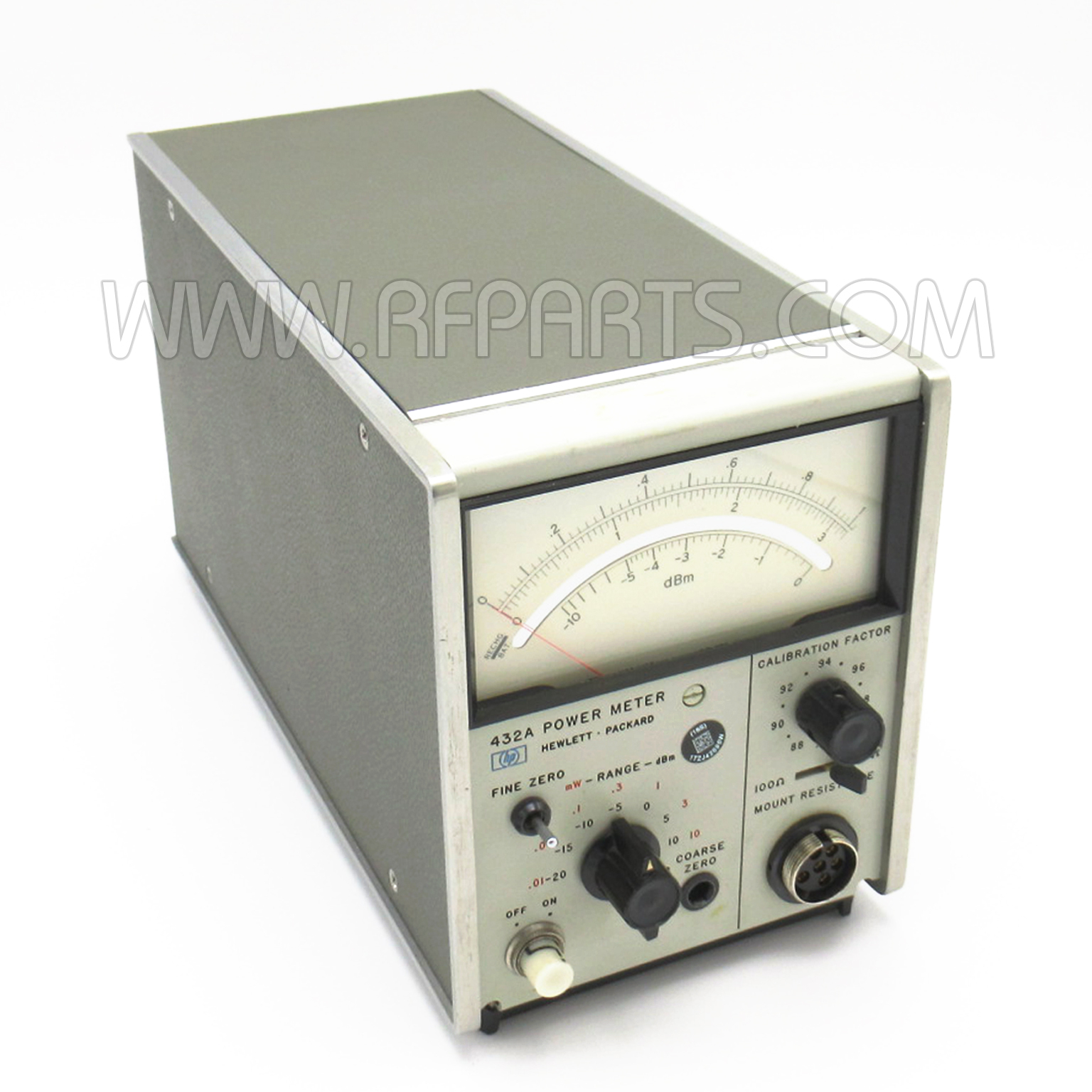

432A Hewlett-Packard Power Meter 10MHz to 18Ghz (Pull)
In Stock
$229.90
The Hewlett-Packard Model 432A Power Meter, with HP temperature-compensated thermistor mounts, measures RF power from 10 microwatts (-20 dBm) to 10
milliwatts (+10 dBm) full scale with 1% of full scale accuracy from 10 MHz to 40 GHz.
Used * No longer available for export
MFR: Hewlett-Packard
SKU: 432A-PM-P
Details
432A Hewlett-Packard Power Meter 10MHz to 18Ghz (Pull)
- Instrument Type: Automatic, self-balancing power meter for use with temperature-compensated thermistor mount.
- Power Range: 7 ranges with full-scale readings of 10, 30, 100, and 300 μW, 1, 3 and 10 mW.
- Calibrated in dBm from -20 dBm to +10 dBm full scale in 5-dB steps.
- Accuracy: ±1% of full scale on all ranges (+0°C to +55°C).
- Calibration Factor Control: 13-position switch normalizes meter reading to account for thermistor mount Calibration Factor.
- Range: 100% to 88% in 1% steps.
- Thermistor Mount: External temperature-compensated thermistor mounts required for operation.
- Meter: Taut-band suspension, individually computercalibrated, mirror-backed scales. Milliwatt scale more than 4-1/4 inches (108 mm) long.
- Zero Carryover: Less than ????0.5% of full scale when zeroed on most sensitive range.
- Fine Zero: Automatic, operated by toggle switch.
- Recorder Output: 1.000 volt into open circuit corresponds to full-scale meter deflection (1.0 on 0 - 1 scale) ±0.5%; 1000-ohm output impedance, BNC
- RFI: Meets all conditions specified in MIL-I-6161D.
- Power: 115 or 230 Vac ±10%, 48 to 440 Hz, 13 VA (max).
Used * No longer available for export
MFR: Hewlett-Packard
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | Used |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Hewlett-Packard |
