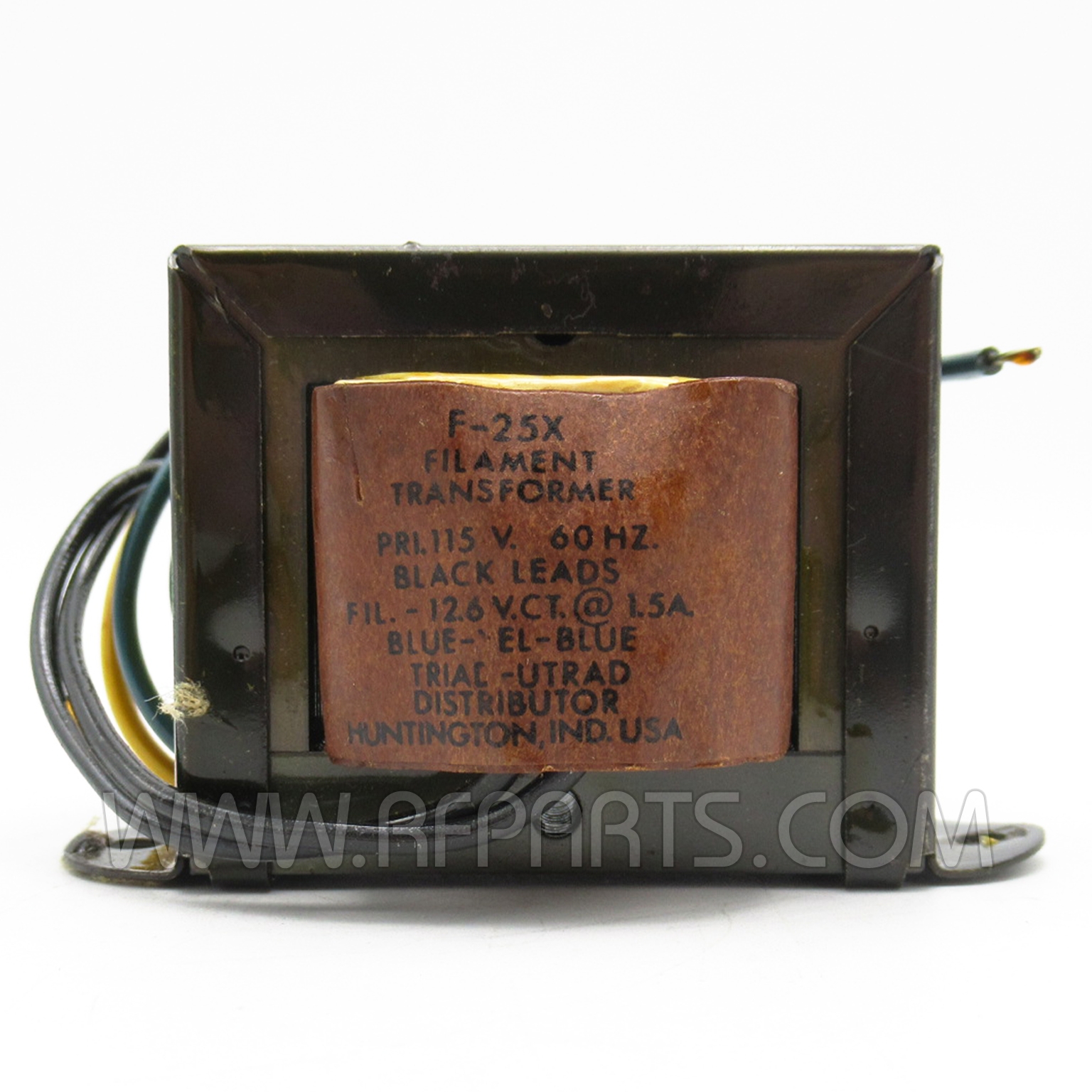

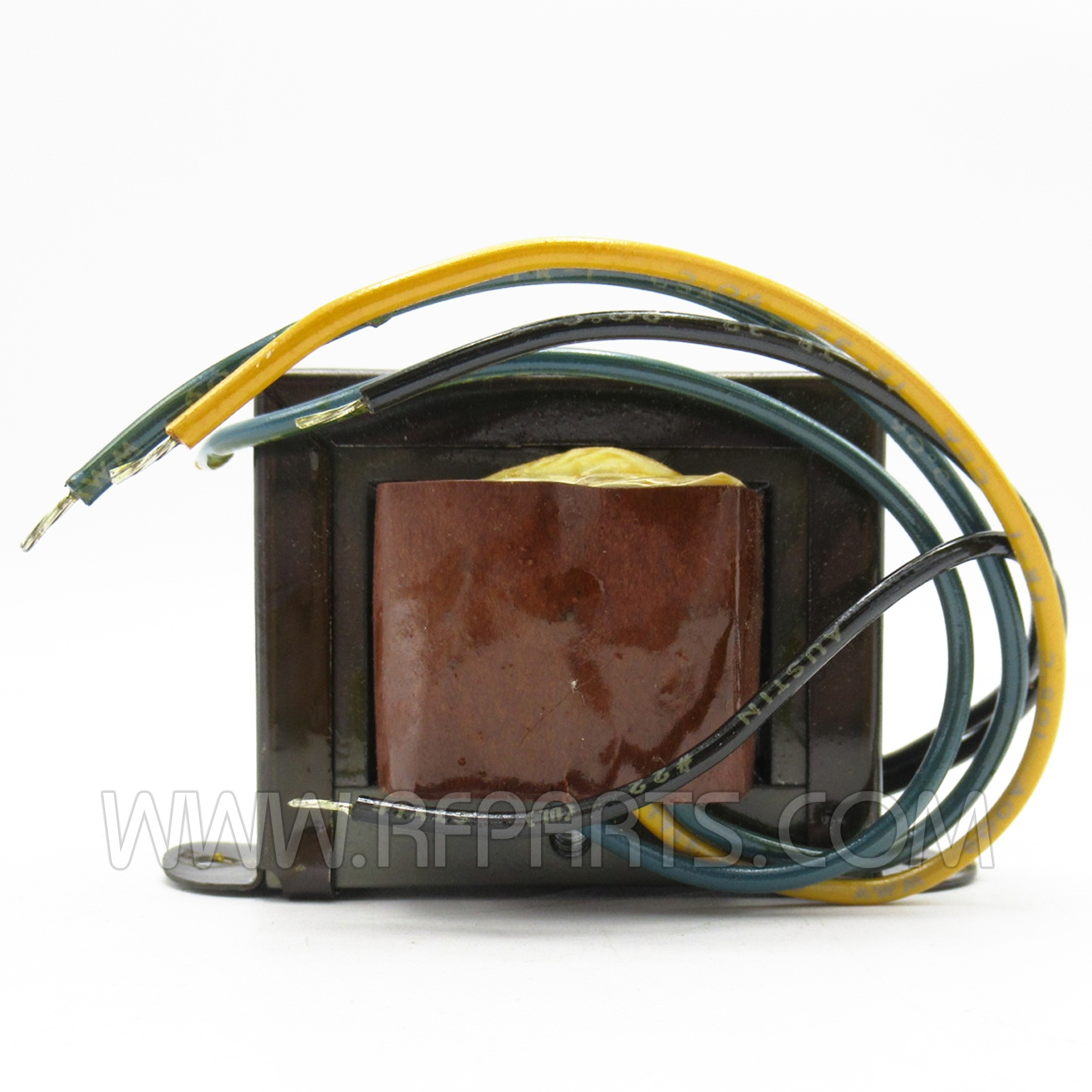

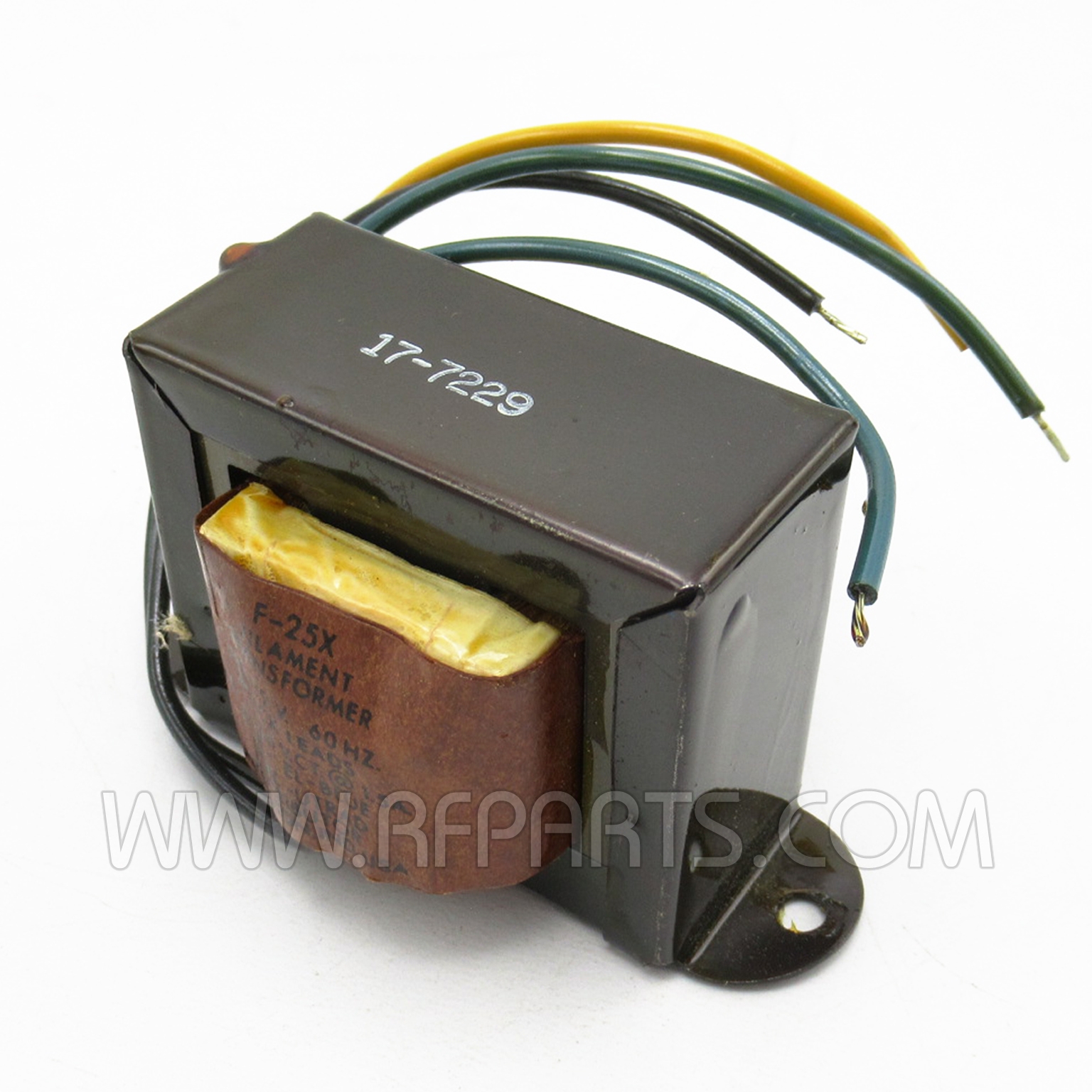

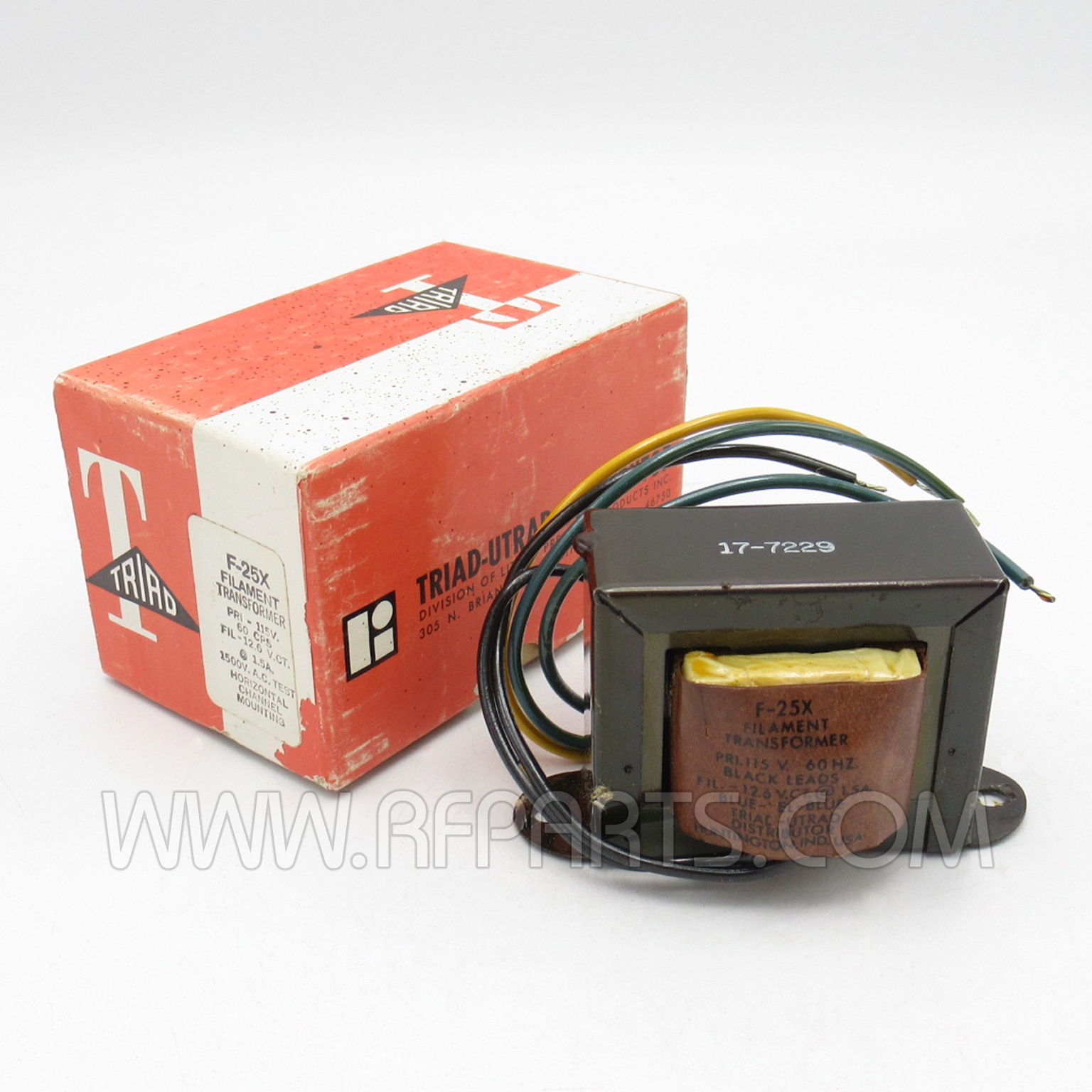

F-25X Triad Filament Transformer

Roll over image to zoom
$14.91
In Stock
OR

The F-25X is part of a series which has a long history of reliable service in the field, made from a proven design and constructed with UL recognized materials.



  • Voltage - Primary: 115V

  • Voltage - Secondary (Full Load): 12.6V

  • Current - Output (Max): 1.5A

  • Power - Max: 18.9VA


New Old Stock * No longer available for export
MFR: Triad-Utrad
SKU: F-25X


Be the first to review this product


Details

S-3X Triad Filament Transformer 115 Volts

  • Type: Laminated Core
  • Voltage - Primary: 115V
  • Voltage - Secondary (Full Load): 12.6V
  • Current - Output (Max): 1.5A
  • Primary Winding(s): Single
  • Secondary Winding(s): Single
  • Center Tap: Yes
  • Power - Max: 18.9VA
  • Mounting Type: Chassis Mount
  • Termination Style: Wire Leads
  • Size / Dimension: 84.12mm L x 50.80mm W
  • Height - Seated (Max): 49.20mm
  • Voltage - Isolation: 1500Vrms
  • Weight: 1.3 lbs (589.7 g)

New Old Stock * No longer available for export
MFR: Triad-Utrad

Additional Information

Featured Product No
Made in the USA No
Manufacturer No
NOS Yes
Call For Price No
Manufacturer Name Triad Magnetics
