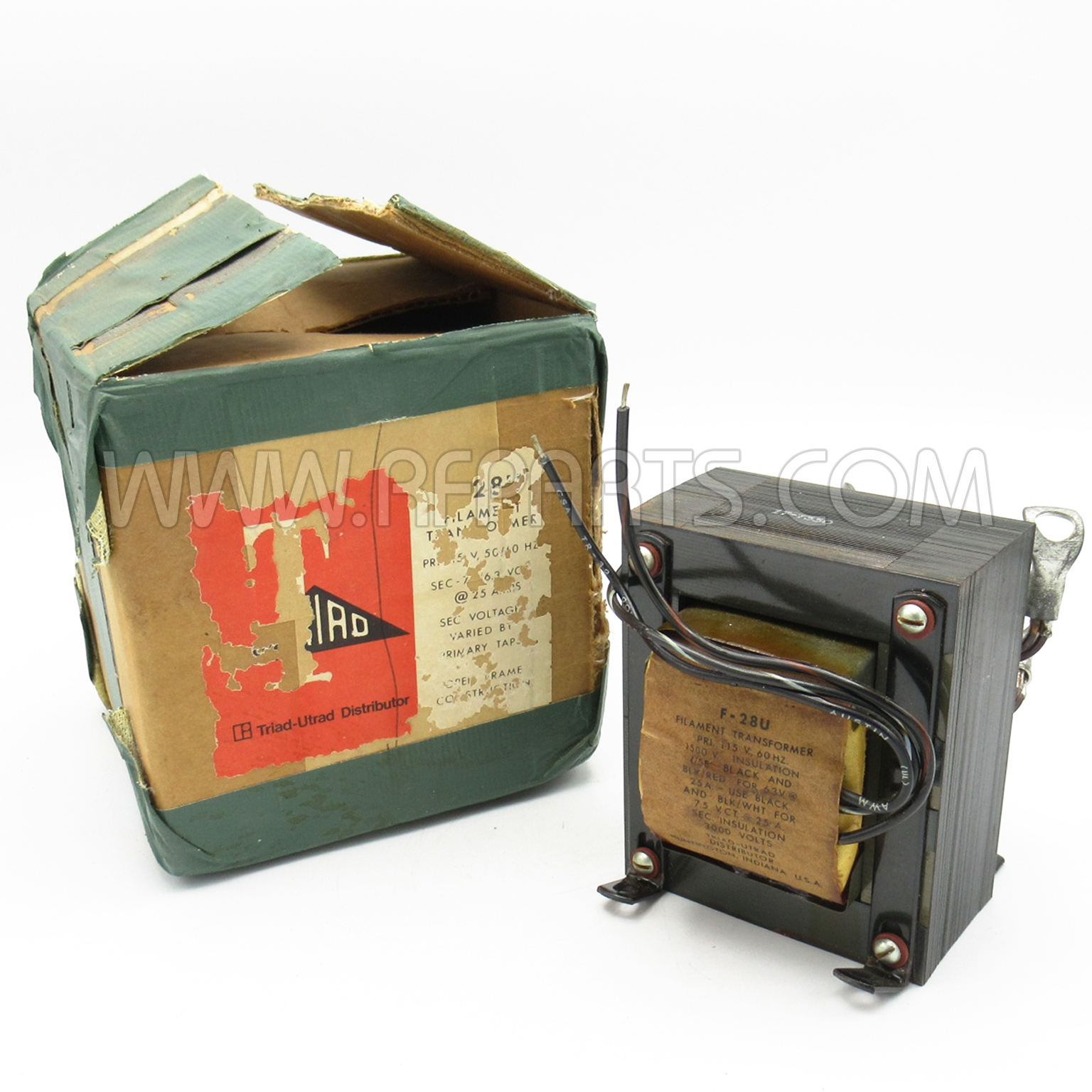

F-28U Triad Power Transformer 115V 50/60Hz

Roll over image to zoom
$66.91
In Stock
OR

The F-28U is part of a series which has a long history of reliable service in the field, made from a proven design and constructed with UL recognized materials.



  • Type: Laminated Core

  • Voltage - Primary: 115V

  • Voltage - Secondary (Full Load): 6.3V, 7.5V

  • Current - Output (Max): 25A


MFR: Triad Magnetics
SKU: F-28U


Be the first to review this product


Details

F-28U Triad Power Transformer 115V 50/60Hz

The F-28U is part of a series which has a long history of reliable service in the field, made from a proven design and constructed with UL recognized materials.

Wound on a single channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

These products are 100% hipot tested with an insulation of 3000V between primary and secondary windings as well as between the primary / secondary windings and the core.

  • Type: Laminated Core
  • Voltage - Primary: 115V
  • Voltage - Secondary (Full Load): 6.3V, 7.5V
  • Current - Output (Max): 25A
  • Primary Winding(s): Single
  • Secondary Winding(s): Single
  • Center Tap: Yes
  • Power - Max:187.5VA
  • Mounting Type: Chassis Mount
  • Termination Style: Wire Leads
  • Size / Dimension: 96.82mm L x 92.07mm W
  • Height - Seated (Max): 117.48mm
  • Voltage - Isolation: 3000Vrms
  • Weight: 7 lbs (3.2 kg)

MFR: Triad Magnetics

Additional Information

Featured Product No
Made in the USA No
Manufacturer No
NOS No
Call For Price No
Manufacturer Name Triad Magnetics
