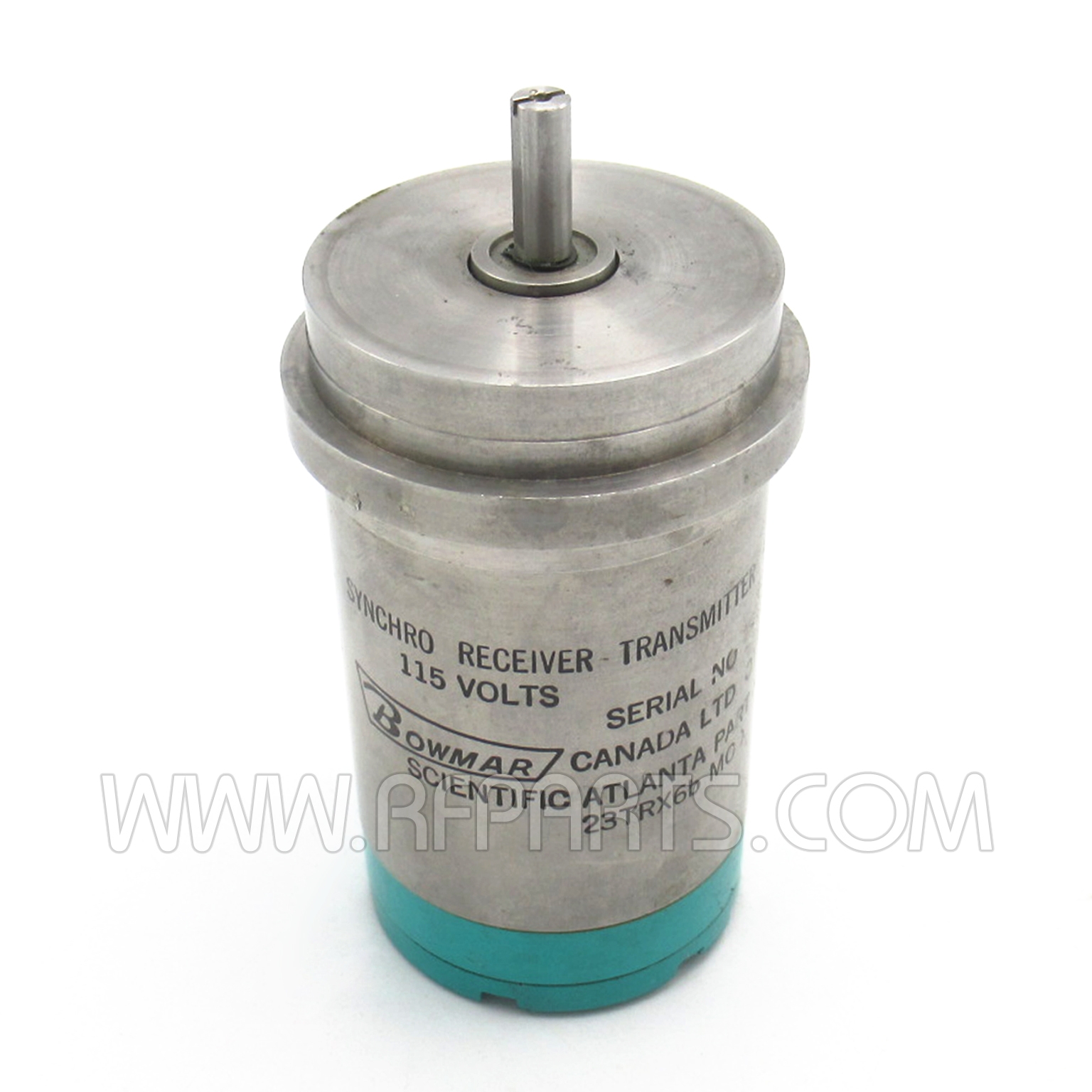

23TRX6b Bowmar Synchro Receiver Transmitter Type 55145 115v 60Hz (Pull)
- NATO Stock Number: 5990-00-926-4324
- Body Material: Steel, stainless
- Shoulder Diameter: Between 1.9850 inches and 1.9900 inches
- Pilot Diameter: 0.5950 inches
- Second Shoulder Diameter: Between 1.9985 inches and 1.9995 inches
- Second Shoulder Length: 0.1700 inches
- Overall Length: 4.2990 inches
- Flange Diameter: Between 2.2490 inches and 2.2500 inches
- Flange Thickness: 0.2500 inches
- Body Diameter: 1.9900 inches
- Shaft Diameter: 0.2403 inches single shaft and 0.2405 inches single shaft
- Shaft Length: 0.7190 inches single shaft
- Fragility Factor: Moderately rugged
- Maximum Tempurature Rise: 35.0 degrees celsius
- Body Size: 23
- Rotor Input Voltage Rating In Volts: 115.0
- Frequency In Hertz: 60.0
- Rotor Input Current Rating: 210.0 milliamperes
- Rotor Input Electrical Power Rating: 5.6 watts
- Zss Impedance Magnitude In Ohms: Between 110.00 and 145.00
- Zss Impedance Angle In Deg: Between 10.00 and 17.00
- Phase Shift Angle In Deg: 11.000 input to output
- Maximum Fundamental Null Voltage In Millivolts Per Volt: 60.00 output
- Maximum Total Null Voltage Output In Millivolts Per Volt: 160.00
- Electrical Error Angular Range In Minutes: -8.0/+8.0
- Spline Tooth Quantity: 22 single shaft
- Receiver Error Angular Range In Minutes: -45.0/+45.0
- Torque Gradient Per Angular Deg: 0.120 inch-ounces
- Pilot Length: 0.0430 inches
- Shoulder Length: 0.2500 inches
- Aft Of First Flange Diameter: 1.9400 inches
- Mounting Surface To Terminal End Distance: 3.5800 inches
- Spline Tooth Diametral Pitch: 96 single shaft
- Shaft Thread Series Designator: Unf single shaft
- Shaft Thread Direction: Right-hand single shaft
- Shaft Thread Class: 2a single shaft
- Terminal Location: Rear
- Shaft Thread Length: 0.2900 inches single shaft
- Shaft Type: Spline w/threads single shaft
- Transformation Ratio: 0.783 stator to rotor
- Shaft Thread Size: 0.250 inches single shaft
- Terminal Type And Quantity: 5 screw
